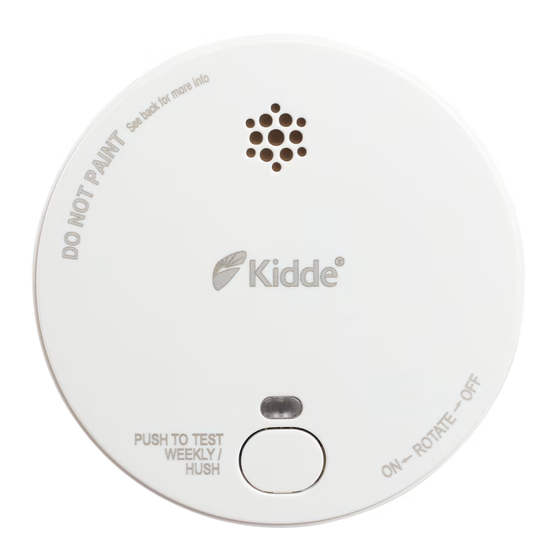

- Page 1 Photoelectric Smoke Alarm with Hush User Guide Model: 2030-DSR • Smoke Alarm Hush Control • Small Structure Design SMOKE ALARM EN 14604:2005 1008 102.0012 EN14604:2005/AC:2008 P/N: 2030-7201-00...
- Page 2 Thank You for Purchasing this Kidde Alarm Teach children how to respond to the alarm and that they should never play with the unit. This alarm was designed specifically for use in a residential environment. It is not designed for use in a recreational vehicle (RV) or boat.
-
Page 3: Table Of Contents
CONTENTS OF THIS USER GUIDE ........................1. Smoke Alarm: What To Do When the Alarm Sounds ........................2. Introduction, Product Features and Specifications ............................3. Other Alarm Visual and Audible Indicators ....................................4. Troubleshooting Guide .................................. 5. Limitations of Smoke Alarms .......................... -
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When the Alarm Sounds Smoke alarm pattern is three long beeps, a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with alarm pattern. • Alert small children in the home as well as anyone else that might have difficulty recognizing the importance of the alarm sounding or that might have difficulty leaving the area without help. -
Page 5: Introduction, Product Features And Specifications
2. Introduction, Product Features and Specifications Introduction This alarm detects products of combustion using photoelectric technology. Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life” mode. See Troubleshooting Guide. To help track the life of your alarm, write the installation date in the space provided on the side of the alarm. -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: Normal (standby) Red LED blinks every 60 sec. Test (button press when • 3 patterns of Red. • Button press sound Perform button press once a week to no alarm condition is •... -
Page 7: Troubleshooting Guide
4. Troubleshooting Guide Trouble Condition Visual Indications Audible Indications Action: Low Battery Red LED blinks every Chirp every 60 sec. * Push button once to silence for 24 hrs. 30 sec. * Replace battery as soon as possible. End of Unit Life Red LED blinks 2 chirps every 30 sec * Push button once to silence for 24 hrs. -
Page 8: Limitations Of Smoke Alarms
5. Limitations of Smoke Alarms Warning: please read carefully and thoroughly Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... -
Page 9: Recommended Locations For Smoke Alarms
6. Recommended Locations for Smoke Alarms NOTE: According to BS 5839-6, for optimal fire protection: “The greatest benefit to life safety is given by a full-coverage system. Such a system will give the earliest practicable warning of fire to occupants, wherever ignition occurs.”... - Page 10 • In hallways, corridors, or rooms exceeding 7.5 m in length, no point within the hallway, corridor, or room should exceed 7.5 m from the nearest alarm. • Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the smoke alarm on the ceiling in the center of the room places it closest to all points in the room.
- Page 11 300 mm Garage Bathroom Bedroom CEILING Bedroom Dining Kitchen 150 mm 300 mm NEVER HERE Bedroom ACCEPTABLE HERE Living Room ACCEPTABLE HERE Not within 1 m of SINGLE FLOOR PLAN appliances (see Locations to Avoid section). Heat Alarm Loft Conversion (Do not fit combo CO or Smoke Alarms in Garage)
- Page 12 MULTI FLOOR PLAN Figure 6-A Figure 6-B 600mm ANYWHERE ALONG THIS BOLD SURFACE 300 mm 600 mm Figure 6-C Figure 6-D...
-
Page 13: Locations To Avoid
7. Locations To Avoid • In the garage. Products of combustion are present when you start your motor vehicle. • Do not install smoke alarms on the walls if the room or hallway exceeds 10 m in both length and breadth, or exceeds an area of 50 m •... -
Page 14: Installation Instructions
Recessed mounting impedes smoke entry into the smoke chamber, which may prevent the alarm from sounding in a timely manner. This could endanger the lives of occupants in the residence. Kidde alarms are designed, tested and certified for wall (if applicable) and ceiling surface mount only. Without agency research, we have no fire test data to support that alarms will perform as required when installed in a recessed manner. - Page 15 CAUTION: This unit is sealed. The cover is not removable. After selecting the proper smoke alarm location as described in Section 4, attach the mounting bracket to the ceiling as shown in Figure 8-A. Use the screws and anchors provided to secure the mounting bracket (Use 5mm drill bit for anchors).
- Page 16 Smoke Alarm Tamper Resist Feature This alarm is equipped with a tamper resist feature that helps prevent someone from removing the unit from the mounting bracket. When activated, it can be very effective in preventing smoke alarm removal or tampering. Activate the smoke alarm tamper resist feature by breaking out both small posts in the square hole in the mounting bracket (see Figure 8-C).
-
Page 17: Operation And Testing
Smoke Alarm Memory: Alerts you if the unit has experienced a smoke alarm event while you were away, and then the smoke has cleared. See section Other Alarm Visual and Audible Indicators. NOTE: If at any time your alarm fails to operate correctly (erratic or low sound, for example), contact Kidde Safety (see page 2 for contact details). -
Page 18: Hush Control Feature
10. Hush Control Feature The Hush feature is extremely useful in a kitchen area or other areas prone to nuisance alarms. The Hush feature has the capability of temporarily desensitizing the smoke alarm circuit for about 9 minutes. This feature should only be used when a known alarm condition, such as smoke from cooking, activates the alarm. -
Page 19: Battery
11.Battery WARNING: Alarm will not attach to mounting bracket unless battery is installed. Removal of battery will render the unit inoperative. To replace the battery, remove the alarm from the mounting bracket by rotating the alarm in the direction of the “OFF”... -
Page 20: Cleaning Your Alarm
12. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. -
Page 21: Good Safety Habits
13. Good Safety Habits Develop and Practice a Plan of Escape Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the residence. - Page 22 Smoke Detection – Are More Alarms Desirable? The required number of smoke alarms might not provide reliable early warning protection for those areas separated by a door from the areas protected by the required smoke alarms. For this reason, it is recommended that the householder consider the use of additional smoke alarms for those areas for increased protection.
-
Page 23: Service And Warranty
The obligation of KIDDE SAFETY EUROPE LTD under this warranty is limited to repairing or replacing the smoke alarm or any part which we find to be defective in material,... - Page 24 © 2021 Carrier All Rights Reserved. QUESTIONS OR FOR MORE INFORMATION Manufactured By: Walter Kidde Portable Equipment Inc. 1016 Corporate Park Drive, Mebane, NC 27302, USA Telephone: 0800 917 0722 www.kiddesafetyeurope.co.uk Made in China EU Authorised Representative Carrier Fire & Security B.V.
