Quick Installation Guide
Smart Dongle
(WiFi/LAN Kit-20 & WiFi Kit-20)
V1.0-2023-05-20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiFi/LAN Kit-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Goodwe WiFi/LAN Kit-20

  • Page 1 Quick Installation Guide Smart Dongle (WiFi/LAN Kit-20 & WiFi Kit-20) V1.0-2023-05-20...
  • Page 2: General Statement

    • Strictly follow the installation, operation, and configuration instructions in this guide. The manufacturer shall not be liable for equipment damage or personal injury if not following the instructions. For more warranty details, please visit http://www.goodwe.com: https:// www.goodwe.com/warrantyrelated.html. Technical Parameters...
  • Page 3: Eu Declaration Of Conformity

    Applications NOTICE • Monitor the equipment via SEMS. The third-party monitoring platform must be compati- ble with the Modbus-TCP communication protocol for use. • LAN mode is only applicable to WiFi/LAN Kit-20. Router Server Monitoring Platform LAN < 100m WiFi <...
  • Page 4: Product Introduction

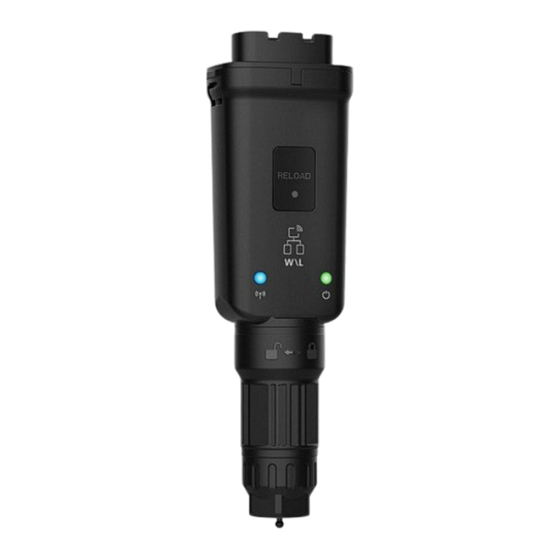

    Quick Installation Guide V1.0-2023-05-20 Product Introduction Parts and Dimension WiFi/LAN Kit-20 WiFi Kit-20 Reload button COM indicator Reload button Power indicator COM indicator Power indicator Installation Deliverables WiFi Kit -20 x 1 WiFi/LAN Kit -20 x 1 Document x 1 screws x N N = Quantity depends on the Smart Dongle configuration.
  • Page 5 5-Pin Communication Port on the Inverter NOTICE Steps 2 and 3 are only applicable to WiFi/LAN Kit-20 when the LAN function is required. Step 2 Remove the waterproof connector. Step 3 Route the LAN communication cable through the connector. Color Color White &...
  • Page 6 Quick Installation Guide V1.0-2023-05-20 Step 4 Connect the Smart Dongle into the inverter. WiFi/LAN Kit-20 WiFi Kit-20 Step 5 Finish the connection. WiFi/LAN Kit-20 WiFi Kit-20...
  • Page 7 Quick Installation Guide V1.0-2023-05-20 Power On Step 1 Power on the inverter. Step 2 Power on the router. Step 3 Determine the communication status of the Smart Dongle based on the communication indicator on the inverter side. Indicator Status Description Solid on: The Smart Dongle is powered on.
  • Page 8 Commissioning via SolarGo App Download and install SolarGo App. Step 1 Connect the Smart Dongle on the App. Type of the Smart Dongle • WLA: WiFi/LAN Kit-20 • WFA: WiFi Kit-20 Bluetooth SolarGo App The last 8 digits of the inverter SN Step 2 Click “Pair”...
  • Page 9 Quick Installation Guide V1.0-2023-05-20 Step 4 Click "More", and enter into the sub- Step 5 Click "Communication Configuration", menu. and enter into its sub-page.
  • Page 10 • LAN mode is only applicable to the SCD: WiFi/ LAN Kit-20. • When both WiFi and LAN modes are enabled on WiFi/LAN Kit-20, the communication is in LAN mode as priority. • If both WiFi and LAN modes are disabled on WiFi/LAN Kit-20 simultaneously, the communica- tion will not be available.
  • Page 11: Replacing Equipment

    Step 2 Remove the dongle on the inverter. Step 3 Install the new dongle. For more details, refer to the corresponding device Quick Installation Guide. Only applicable to WiFi/LAN Kit-20 Smart Dongle. Troubleshooting Problem Solutions 1. Make sure that the Smart Dongle on the inverter is powered on and the blue indicator is flashing or solid on.
  • Page 12 Quick Installation Guide V1.0-2023-05-20 Problem Solutions 1. Put the router nearer to the Smart Dongle. Or add a WiFi relay device to enhance the WiFi signal. Cannot find router SSID 2. Check if the router's channel number is higher than 13.
  • Page 13 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com 340-00976-00 Local Contacts...
