Eazao MATRIX M700 Quick Start Manual

Large format ceramic 3d printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

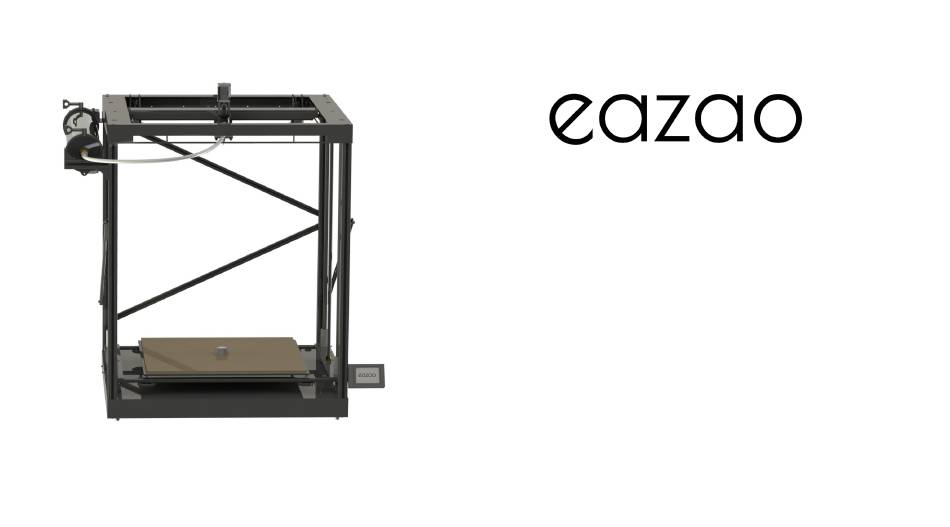

MATRIX M700
LARGE FORMAT CERAMIC 3D PRINTER
QUICK START
快速入门指南

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRIX M700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eazao MATRIX M700

Summary of Contents for Eazao MATRIX M700

  • Page 1 MATRIX M700 LARGE FORMAT CERAMIC 3D PRINTER QUICK START 快速入门指南...
  • Page 2 This manual will guide you through the step-by-step process of assembling your 3D clay printer, as well as provide instructions for your first print. For your safety, please read the entire manual before operating the machine. 欢迎使用Matrix陶瓷3D打印机手册。 本手册将引导您逐步完成组装3D陶瓷打印机的过程，并为您的首次打印提供指导说明。 为了您的安全，请在操作机器之前仔细阅读整个手册。 https://www.eazao.com...
  • Page 3 Introduction 简介 Y Axis Motor X Axis Motor Y轴电机 X轴电机 Extruder 挤出机 Feeding Tube 送料管 Electric Putter 电动推杆 Aluminium Profile 铝型材 Z Axis Screw Rod z 轴丝杆 Z Axis Smooth Rod z 轴光轴 Printing Platform 打印平台 Nozzle Setter 喷嘴设定器 Full Color Touch Screen Leveling Nut 全彩触摸屏...
  • Page 4 Parameter 参数 Technical Principle/ 技术原理 DIW (Direct Ink Writing)/ 陶瓷无模直写 Molding size/ 成型空间 500 x 500 x 700 mm (L x W x H)/( 长 x 宽 x 高 ) Cartridge Volume/ 料筒容积 5 L / 9 KG Layer thickness/ 层厚...

  • Page 5: Machine Accessories

    Machine Accessories 机器配件 cZ-axis Printing Platform dAluminium Profile*4 eScrew Rod*2 &Rod*4 fExtruder Holder gTouch Screen hAll metal Extruder aBase bTop 铝型材 底座 顶部 Z轴打印平台 丝杆*2 & 光轴*4 挤出机支撑 全彩触摸屏 全金属挤出机 iMotor reducer j5L Cartridge kCartridge Holder lCartridge Cover nSealing Ring & Sealing Block oAnti-Rotation Flange pThrust Block mClamp*2...
  • Page 6 Machine Accessories 机器配件 oThreaded Push Rod pMotor Reducer Cable qPutter Hanging Plate rPutter Fixing Plate tScrew Fixed Bearning uBolt Nut Kit sCoupling vClips*2 螺纹推杆 电机减速机连接线 推杆挂板 推杆固定板 联轴器 丝杆固定轴承 螺栓螺母包 夹子 wFeeding Tube xNozzle Setter yUSB Data Cable zPower Cable @7Allen Key*6 @8Cartridge Aluminum Profile @9Cartridge Adapter...
  • Page 7 Machine Upgrading Accessories (Gifts) 机器升级配件 （赠品） #1Z-axis side limit #2Z-axis side limit cable #3Z-axis side limit bolt #4Direct Extrusion Connector #5Direct Extrusion Plate #6Extruder O-ring #7ACE Extruder Sleeve #8SD Card Reader Z轴侧边限位 Z轴侧边限位连接线 Z轴侧边限位螺栓 直接挤出接头 直接挤出板 挤出机O型圈 ACE挤出机套筒 SD卡读卡器 The#1,#2,#3 are upgrade parts for the Z-axis side plan and do not require installation./#1,#2,#3零件为Z轴侧边方案升级零件，无需安装。 The #4 and #5 parts are direct extrusion upgrade solutions and do not require installation./#4 和#5零件为直接挤出升级方案，无需安装。...

  • Page 8: Step 1 - Main Body Assembly

    Step 1 - Main Body Assembly 第一步：主体组装 4*M8-10 screw/螺栓 1. Place the base on a flat and even sur- 2. Rotate the base by 90 degrees. 3. Take 4 aluminum profiles from the 4. Fasten each aluminum profile to the 5.

  • Page 9: Step 2 - Parts Assembly

    Step 2 - Parts Assembly 第二步：零件组装 2*M3-6 screw/螺栓 4*M3-8 screw/螺栓 11. Identify the front face of your machine 12. Assemble the Z-axis top bearing on 13. Unscrew the top X-axis cover. 14. Unscrew the X-axis limit switch, and 15. Attach the extruder holder with M3-8 using the diagram reference.
  • Page 10 Step 2 - Parts Assembly 第二步：零件组装 Install T-Nuts. 安装T型螺母 Use 2 M5-10 bolts and T-nuts to install the putter hanging plate. 使用2个M5-10的螺栓和T型螺母安装putter挂板。 First, fix the bolt and the T-nut, then put the T-nut into Install 5L cartridge aluminum profile the groove of the aluminum 安装5L 料筒铝型材...
  • Page 11 Step 2 - Parts Assembly 第二步：零件组装 Install T-Nuts. 安装T型螺母 Install four diagonal braces. 安装四根斜撑。 First, fix the bolt and the T-nut, then put the T-nut into the groove of the aluminum profile in a parallel direction, and quickly tighten the bolt clockwise so that the T-nut rotates 90°...
  • Page 12 Step 3 - Assembly instructions 第三步：组装说明 1. Please refer to the electric putter assembly instructions for electric putter assembly: https://www.eazao.com/downloads/ 1.电动推杆组装请参见电动推杆组装说明书:https://www.eazao.com/downloads/ 2After installation is completed, grease can be applied to the Z-axis screw and the screw of the electric putter.

  • Page 13: Step 4 - Voltage Range

    Step 4 - Voltage Range 第四步：电压档位 Warning: Before turning on the power for the first time, you must check whether the power supply voltage complies with local standards! ! ! If the voltage gear is wrong, it will burn the circuit. 警告：...
  • Page 14 Step 5 - Cables 第五步：接线 Insert the X-axis motor cable: Connect the 4-core ca- Insert the Y-axis limit cable: Connect the 3-core cable ble marked with X number to the X-axis motor. marked with Y number to the Y-axis limit switch. 插入X轴电机线：将标有X号码的4芯线缆与X轴电机连接。...

  • Page 15: Step 6 - Platform Leveling

    Step 6 - Platform Leveling 第六步：平台调平 The nozzle will first move to the cen- ter of the build platform, triggering the nozzle adapter. Then the nozzle moves to point1. 喷嘴会首先移动到打印平台中央，触发 喷嘴适配器。然后喷嘴移动到point1。 Turn on the power on the back of the When printing for the first time, level- Click point1,2,3,4,5 in turn to perform printer and click "Tool".

  • Page 16: Step 7 - Prepare For Printing

    Step 7 - Prepare for Printing 第七步：打印前准备 Clay pre-extrusion settings, select Click "Putter" and "Extrusion" re- "Load", the putter moves forward, "In", the extruder feeds material, "Tool". spectively to pre-extrude the clay. "Unload", the putter moves back- "Out", the extruder returns material. ward.

  • Page 17: Step 8 - Start Printing

    Step 8 - Start Printing 第八步：开始打印 To start printing, select "Printing". To use a USB card reader, please Select the sliced "Gcode" file to click "USB". print. 开始打印，选择“Printing”。 使用USB读卡器，请点击“USB”。 选择切片好的“Gcode”文件进行打 印。 1. After confirming the printing, the nozzle moves to the center of the printing platform.
  • Page 18 Step 8 - Start Printing 第八步：开始打印 1. Babystep settings/ Babystep设置 If the first layer of clay cannot be attached to the printing platform, the following opera- tions can be performed. Click "Option" -> "Babystep" -> "Z-" to move the printing platform up so that the first layer of clay is attached to the printing platform.
  • Page 19 Step 9 - Slicing Software Settings 第九步：切片软件设置 1. Software download and install/ 软件下载和安装 According to the computer operating system, it is recommended to download and install the latest version of Cura software: https://ultimaker.com/software/ultimaker-cura 根据电脑的操作系统，下载并安装 Cura 软件最新版本： https://ultimaker.com/software/ultimaker-cura 2.Add a printer/ 添加打印机 How to change the language of slicing software.
  • Page 20 Step 9 - Slicing Software Settings 第九步：切片软件设置 Refer to the figure to configure the visibility of the M600 M600 slicing software settings. 参照如图， 配置切片软件设置可见性。 Please use a 12G needle. 请选择12G喷嘴。 Set the printer and extruder parameters as shown in the figure, the configuration of Start G-code and End G-code can copy the text below.
  • Page 21 Step 9 - Slicing Software Settings 第九步：切片软件设置 2.Manual parameter setting /手动参数设置 1.Import parameter setting /导入参数设置 Import configuration file: Click "Preferences" and select "Pro- files". Click "Import" in the upper right corner and select the configuration file in the SD card: Eazao_Matrix_Default_con- figuration_20230520 (the file is under the Cura folder in the SD card).
  • Page 22 Step 9 - Slicing Software Settings 第九步：切片软件设置 M600 M600...
  • Page 23 The hardness, fluidity, and printability need to be adjusted according to the actual situation. Make the clay as soft as possible and have better fluidity, which is conducive to suc- cessful printing. https://www.eazao.com/blog/testing-of-six-clays-for-extrusion-3d-printing/ 2.What kind of noises of the printer are normal? I noticed that as soon as the printer starts its paths, the two motors of the Z-axis "tremble" they turn slowly and trem- ble? is that normal? There are many reasons why the first layer cannot be completely fitted.
  • Page 24 Because each model is different, there may be differences between the actual product and the picture. The actual product shall prevail. The final right of interpretation belongs to Eazao. 因为每款机型不同，实物与图片可能存在差异，一切以实物为准。最终解释权归Eazao所有。 Website：www.eazao.com 网址：www.eazao.com Email：hello@eazao.com 邮箱：hello@eazao.com...
