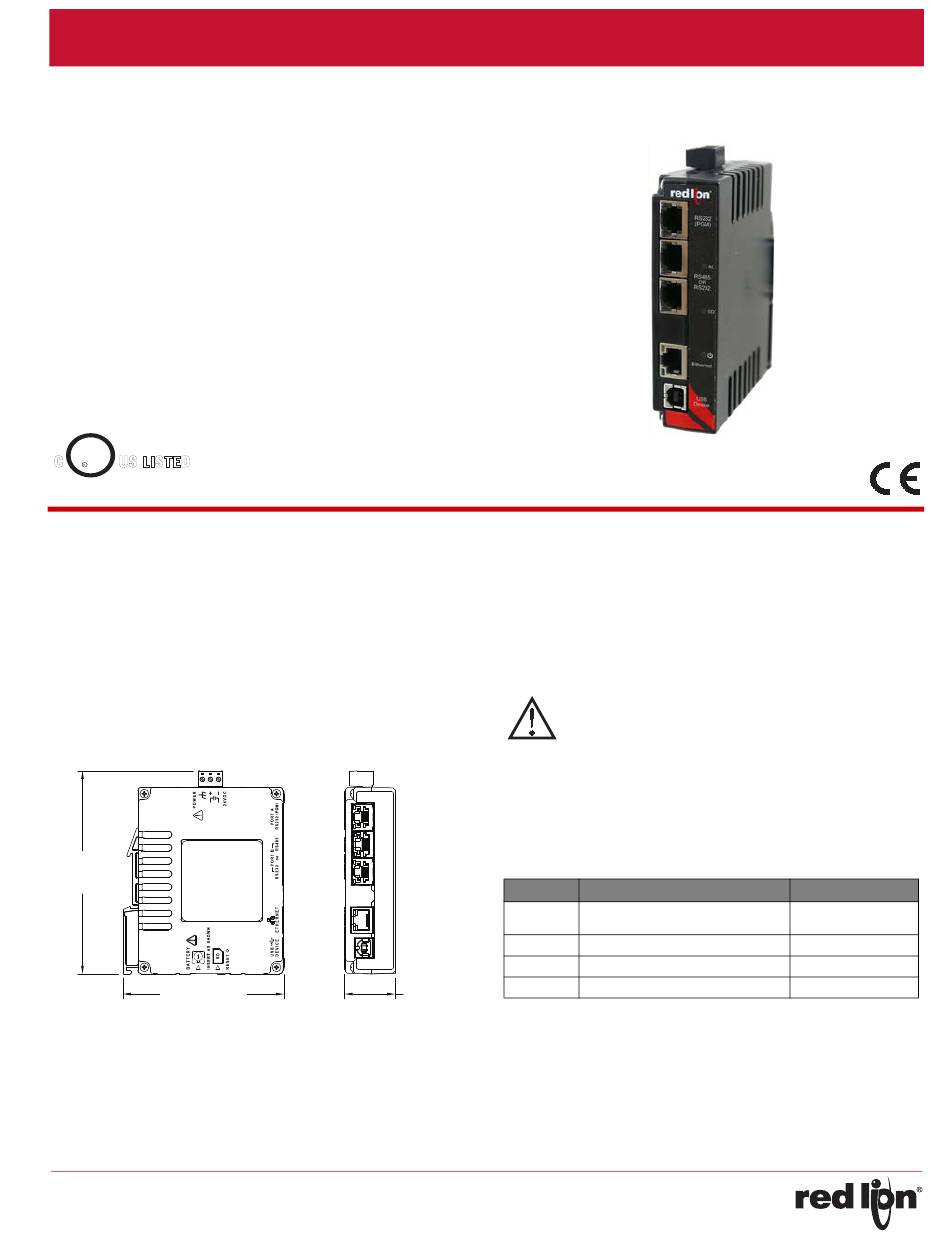

Model DA10D ‐ Protocol Converter and Data Acquisition System
•
CONFIGURED USING CRIMSON
•
TWO SERIAL COMMUNICATION PORTS,
(1 RS-232 and 1 RS-232/422/485)
•
10 BASE T/100 BASE-TX ETHERNET PORT COMMUNICATES
WITH UP TO FOUR PROTOCOLS SIMULTANEOUSLY
•
UNIT'S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
•
SD CARD SOCKET FOR LOADING DATABASE IN FIELD
•
RUGGED IP40-RATED ENCLOSURE
•
THREE FRONT FACE LED INDICATORS
•
SUPPORTS OVER 300 INDUSTRIAL PROTOCOLS
•
POWER UNIT FROM 24 ±20% VDC
U L
C
US LISTED
IND. CONT. EQ.
E302106
GENERAL DESCRIPTION

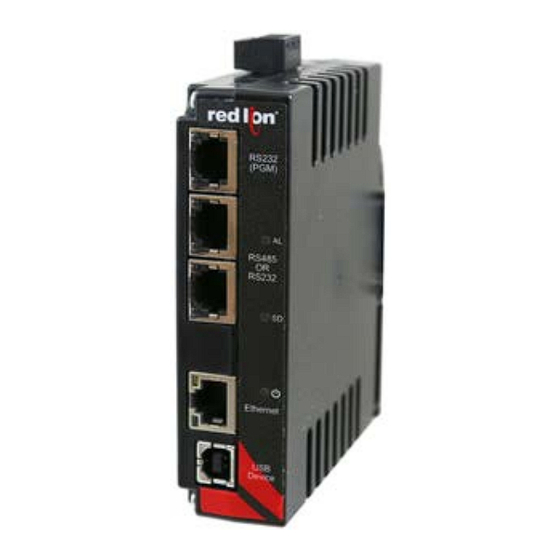

The DA10D data station performs the functions of a multiple protocol
converter, using two high-speed serial communications ports and a 10/
100 Base-TX Ethernet port. The Ethernet port supports up to four
protocols simultaneously, allowing dissimilar Ethernet based products to
communicate with one another, including PLCs, motor drives, bar code
scanners, etc. The SD card slot can be used to load the unit's
configuration file, allowing configuration changes to be made and saved
to the card for later transfer.
The DAx0D is programmed with Red Lion's Crimson 3.1 software.
Crimson offers easy to use drag and drop communications configuration
and is available as a no charge download from Red Lion's website.
DIMENSIONS In inches (mm)
5.03
(127.7)
3.99 (101.4)
®
3.1 SOFTWARE
1.25 (31.8)
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear
in the manual or on equipment must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment
connected to it. If equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Do not use the unit to directly command motors, valves, or other
actuators not equipped with safeguards. To do so can be potentially
harmful to persons or equipment in the event of a fault to the unit.
WARNING - EXPLOSION HAZARD - DO NOT D
CAUTION: Risk of Danger.
Read complete instructions prior to installation
EQUIPMENT UNLESS POWER HAS BEEN SW
OR AREA IS KNOWN TO BE NON-HAZARDOU
and operation of the unit.
CONTENTS OF PACKAGE
- DA10D
- Terminal block for connecting power
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
Protocol Converter with 2 Serial Ports,
DA10D
1 Ethernet Port, and USB Device Port
1
SD
SD Card
CBL
Communications Cables and Adapter
CRA000
Replacement Battery
1
Contact your Red Lion distributor or visit our website for selection of SD cards,
adapters and cables.
-1-
Bulletin No. DA10D-A
Drawing No. LP1077
Effective 2018-11-02
PART NUMBER
DA10D 0C 000000 000
SDxxxxxx
1
CBLxxxxx
CRA000 BT3V0 00000
Advertisement
Table of Contents
Related Manuals for Redlion DA10D
Summary of Contents for Redlion DA10D
- Page 1 E302106 GENERAL DESCRIPTION SAFETY SUMMARY The DA10D data station performs the functions of a multiple protocol All safety related regulations, local codes and instructions that appear converter, using two high-speed serial communications ports and a 10/ in the manual or on equipment must be observed to ensure personal 100 Base-TX Ethernet port.
-
Page 2: Specifications
Bulletin No. DA10D-A Effective 2018-11-02 Drawing No. LP1077 SPECIFICATIONS 1. POWER REQUIREMENTS: 6. CERTIFICATIONS AND COMPLIANCES: Must use a Class 2 circuit according to National Electrical Code (NEC), CE Approved NFPA-70 or Canadian Electrical Code (CEC), Part I, C22.1 or a... -
Page 3: Connecting Power
3. Never run Signal or Control cables in the same conduit or raceway with AC power lines, conductors, feeding motors, solenoids, SCR controls, The DA10D requires a 24 VDC ±20% power supply. A pluggable power block and heaters, etc. The cables should be run through metal conduit that is properly grounded. -
Page 4: Cables And Drivers
Red Lion’s website. New cables and image file on the SD card. The card is then inserted into the target DA10D drivers are added on a regular basis. If making your own cable, refer to and powered. -
Page 5: Factory Reset Button
Drawing No. LP1077 RS232/RS422/485 COMMS PORT Examples of RS485 2‐Wire Connections The one logical serial port of the DA10D can be used as a RS232 or RS422/485 port. There is a separate RJ connector for each option. In DAX0D TO RED LION RJ45 DAX0D TO RED LION RJ11... - Page 6 Bulletin No. DA10D-A Effective 2018-11-02 Drawing No. LP1077 BATTERY & TIME KEEPING CAUTION: Lithium battery. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent A battery is used to keep time when the unit is without power. The type recommended by the manufacturer.
- Page 7 Effective 2018-11-02 Bulletin No. DA10D-A Drawing No. LP1077 This page intentionally left blank...
-
Page 8: Trademark Acknowledgments
“Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”). EXCEPT FOR THE ABOVE- STATED WARRANTY, COMPANY MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE PRODUCTS, INCLUDING ANY (A) WARRANTY OF MERCHANTABILITY;...
