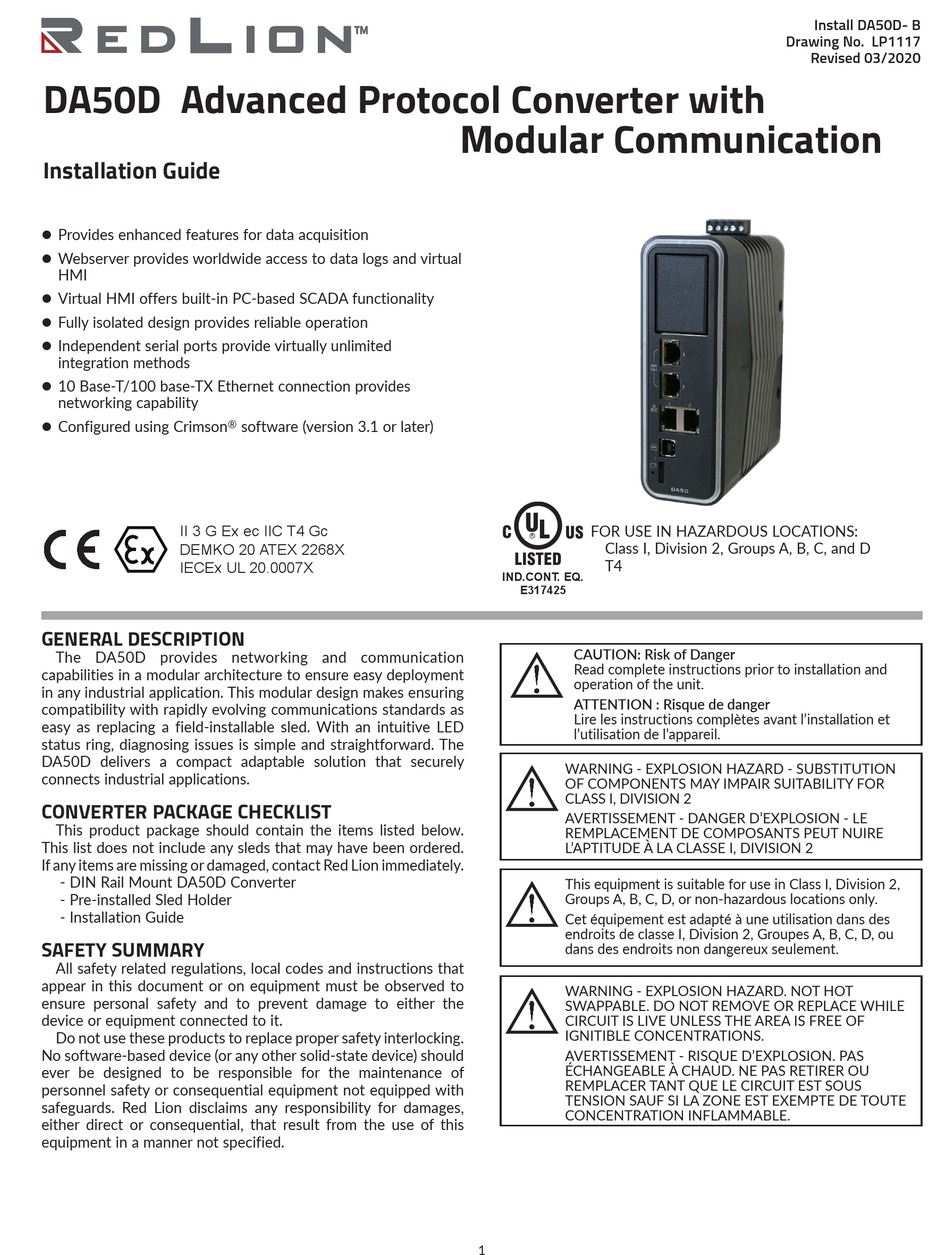

Redlion DA50D Installation Manual

DA50D Advanced Protocol Converter with
Installation Guide
z Provides enhanced features for data acquisition
z Webserver provides worldwide access to data logs and virtual
HMI
z Virtual HMI offers built-in PC-based SCADA functionality
z Fully isolated design provides reliable operation
z Independent serial ports provide virtually unlimited
integration methods
z 10 Base-T/100 base-TX Ethernet connection provides
networking capability
z Configured using Crimson
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx UL 20.0007X
GENERAL DESCRIPTION

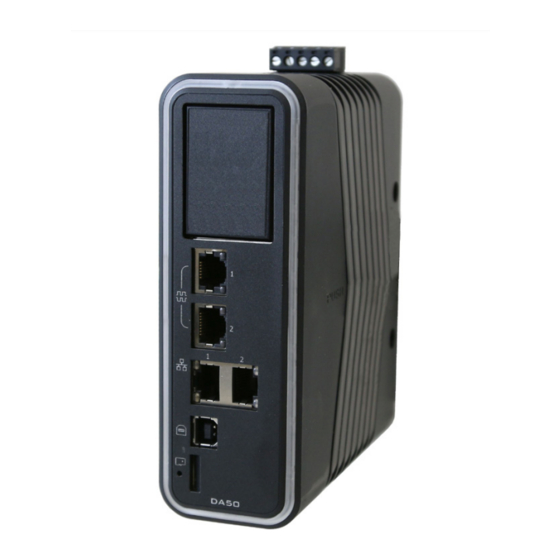

The DA50D provides networking and communication
capabilities in a modular architecture to ensure easy deployment
in any industrial application. This modular design makes ensuring
compatibility with rapidly evolving communications standards as
easy as replacing a field-installable sled. With an intuitive LED
status ring, diagnosing issues is simple and straightforward. The
DA50D delivers a compact adaptable solution that securely
connects industrial applications.
CONVERTER PACKAGE CHECKLIST
This product package should contain the items listed below.
This list does not include any sleds that may have been ordered.
If any items are missing or damaged, contact Red Lion immediately.
- DIN Rail Mount DA50D Converter
- Pre-installed Sled Holder
- Installation Guide
SAFETY SUMMARY
All safety related regulations, local codes and instructions that
appear in this document or on equipment must be observed to
ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not specified.
® software (version 3.1 or later)
Modular Communication
U L
FOR USE IN HAZARDOUS LOCATIONS:
C US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2
AVERTISSEMENT - DANGER D'EXPLOSION - LE
REMPLACEMENT DE COMPOSANTS PEUT NUIRE
L'APTITUDE À LA CLASSE I, DIVISION 2
This equipment is suitable for use in Class I, Division 2,
Groups A, B, C, D, or non-hazardous locations only.
Cet équipement est adapté à une utilisation dans des
endroits de classe I, Division 2, Groupes A, B, C, D, ou
dans des endroits non dangereux seulement.
WARNING - EXPLOSION HAZARD. NOT HOT
SWAPPABLE. DO NOT REMOVE OR REPLACE WHILE
CIRCUIT IS LIVE UNLESS THE AREA IS FREE OF
IGNITIBLE CONCENTRATIONS.
AVERTISSEMENT - RISQUE D'EXPLOSION. PAS
ÉCHANGEABLE À CHAUD. NE PAS RETIRER OU
REMPLACER TANT QUE LE CIRCUIT EST SOUS
TENSION SAUF SI LA ZONE EST EXEMPTE DE TOUTE
CONCENTRATION INFLAMMABLE.
1
Install DA50D- B
Drawing No. LP1117
Revised 03/2020
