Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour
- Power consumption
(IEC) 230V
- Maximum Air displacement : 47 l/s
- Vacuum
- Type number dustbag
- Duststorage capacity
- Cord length
- Fiter system
- Dimensions of cleaner
- Dimensions of packaging
- Net weight
- SAP coding
Published by Philips Consumer Lifestyle
14/04 Version 1.2
: Slate Grey
: 2000 W
: 340 mbar / 34.0 kPa
: FC8021
: 4 L
: 9 m
: Classic S-Bag
long performance
: 3 layer permanent motor
protection filter
: Ultra clean air washable
HEPA13 exhaust filter
: 472 x 324 x 276 mm
: 593 x 393 x 296 mm
: 6.3 kg
: FC9170/01
Printed in the Netherlands

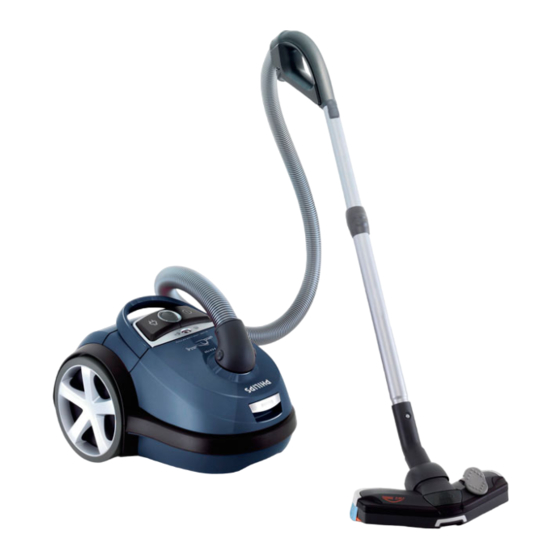

Vacuum cleaner
ACCESSORIES
- Nozzle
: Tri-Active all purpose nozzle
- Tubes
: Metal lacquered 3-piece telescopic tube
- Accessories
: Brush, crevice nozzle and small nozzle
- Accessory storage : Active accessory storage bridge in
handgrip
- Coupling
: Button coupling
OPTIONAL (accessories)
- FC8021
: S-bag Classic
- FC8022
: S-bag Clinic
- FC8023
: S-bag Anti-Odour
- FC8031
: Super Clean Air HEPA filter,
HEPA12 exhaust filter
- FC8038
: Ultra clean air washable HEPA13
exhaust filter
© Copyright reserved
FC9170/01
FC9170/08
Subject to modification
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Philips FC9170/01
Summary of Contents for Philips FC9170/01
- Page 1 - Dimensions of packaging : 593 x 393 x 296 mm - Net weight : 6.3 kg - SAP coding : FC9170/01 Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 14/04 Version 1.2...
- Page 2 FC9170/01 / FC9170/08 REPAIR INSTRUCTION DISASSEMBLY- AND RE-ASSEMBLY ADVISE - Cotton dustbags, are used in countries in which paper - Open the appliance, first remove the filter cover (item 22) dustbags are not available. and then remove the 2 screws (A) of the button assy (item 10).
- Page 3 FC9170/01 / FC9170/08 PARTS LIST Service code Description 4322 005 24490 Dustcover / Pr / Slate Grey 4322 005 17600 Dustcover lock assy 4322 000 67810 DB detector spring 4322 003 24790 DB detector / LB / Cool grey 4322 003 24780...
- Page 4 FC9170/01 / FC9170/08 EXPLODED VIEW Black/ White Black blue brown...
- Page 5 FC9170/01 / FC9170/08 EXPLODED VIEW...
- Page 6 FC9170/01 / FC9170/08 EXPLODED VIEW Black/ White Black blue brown...
- Page 7 FC9170/01 / FC9170/08 EXPLODED VIEW...
- Page 8 FC9170/01 / FC9170/08 Version history Version 1.1 : FC9170/01 / FC9170/08 initial release. Version 1.2 : Updated picture on front page. In Disassembly- and re-assembly advise: Removed the description concerning disassembling the cordwinder. In Repair Instruction: Removed the description concerning lubrication of the shaft, if the reel half spring unit is replaced.
