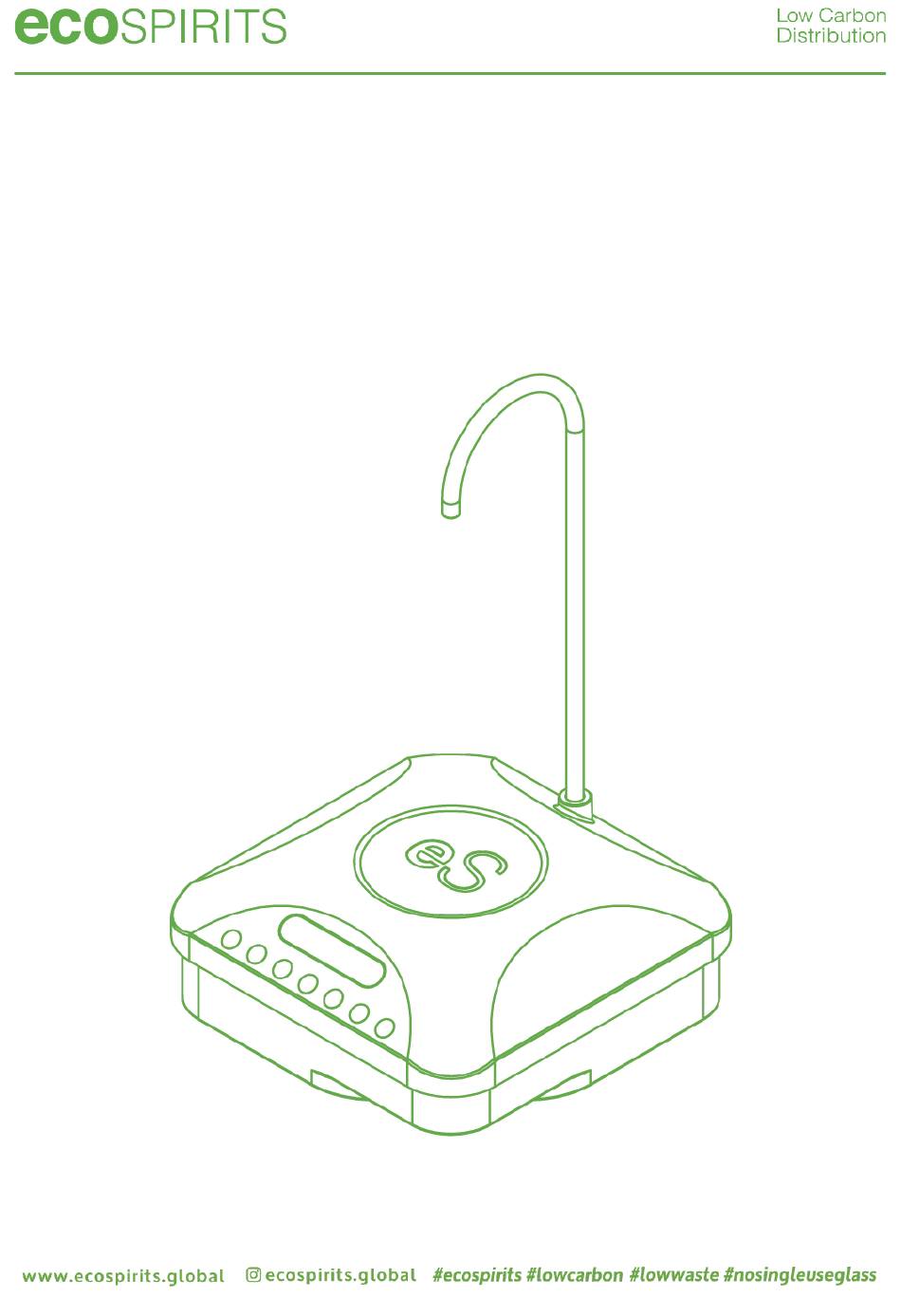

- Page 1 SmartPour 1.1S Operating Guide...
-
Page 2: Safety Guidelines
Safety Guidelines This appliance is only to be used for its intended purpose, and with all applicable laws, rules, and regulations. This appliance can be used by persons if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 3: Table Of Contents
SmartPour 1.1S Operating Guide Rev_07 Safety Guidelines ..................................1 SmartPour Introduction ..............................3 SmartPour Accessories ............................... 4 SmartPour Display Screen & Keypad ........................5 SmartPour Specifications & Features ........................6 Registering Your SmartPour ............................6 Cleaning Your SmartPour ............................8 Using Your SmartPour ..............................9 SmartPour Calibration .............................. -
Page 4: Smartpour Introduction
This purpose of this Operating Guide is to provide you with the necessary steps and instructions to operate your SmartPour 1.1S safely and sanitarily. This Operating Guide covers the key steps involved in registering, cleaning, and using of the SmartPour 1.1S. -
Page 5: Smartpour Accessories
SmartPour Accessories Please ensure that the following items are included in with your SmartPour 1.1S. Please store your unit and its accessories in a clean, dry, and accessible location between uses. 1 x SmartPour 1.1S 1 x Stainless Steel Dispense Nozzle... -
Page 6: Smartpour Display Screen & Keypad
SmartPour Display Screen & Keypad Your SmartPour 1.1S features a back-lit LCD Display Screen and a touch-sensitive User Keypad to allow the user to conveniently operate all key functions. SmartPour Screen & Keypad Remaining Pouring Volume ecoTOTE Volume Wi-Fi Indicator... -
Page 7: Smartpour Specifications & Features
SmartPour Pairing Application. The application is available on Google Play and in the App store. Ensure that the SmartPour 1.1S is fully charged before the registration steps. To charge, plug your SmartPour 1.1S into wall power using the USB-C Charging Cable provided. - Page 8 Step 6 - A new device should pop up under “Discovering devices…” > Tap on “Add” > Tap on “+” Step 7 - Input your Wi-Fi SSID and password into the fields on the ecoSPIRITS SmartPour Pairing App. Tap on “Next”...
-
Page 9: Cleaning Your Smartpour
Step 3 – Assembly of Inlet Tube Connect the Inlet Tube to the bottom of the SmartPour 1.1S via push fit. Slightly bend the end of the Inlet Tube. This will allow the SmartPour to sit fully on the ecoTOTE without any interference. Please see below image for reference. -
Page 10: Using Your Smartpour
Display Screen. Place a container under the Dispense Nozzle. Double touch the closest available volume to 50 ml on the User Keypad to prime your SmartPour 1.1S with spirit. Discard any liquid that is dispensed. It is now primed and ready for use. -
Page 11: Smartpour Calibration
The calibration settings within the SmartPour 1.1S may also drift as a result of normal use. In those unlikely scenarios, recalibration of dispense volumes may be required to achieve an accurate dispense. -
Page 12: Smartpour Calibration - Items Required
8.1. SmartPour Calibration - Items Required 1 x Empty Container Min 1L Water or Actual Spirit Measuring Equipment: a. Measuring by weight/density: 1 x Measuring Scale b. Measuring by volume: 2 x Measuring Cylinders (200 ml and 1L) 8.2. SmartPour Calibration – Enter calibration mode Fill up 1 empty container with enough water/spirit to recalibrate the without running out of liquid. -
Page 13: Smartpour Calibration - Calibrate Big Volume Button (>200Ml)
8.4. SmartPour Calibration – Calibrate Big Volume button (>200ml) Revolution Based Version Time Based Version Make sure you are in calibration mode (Section 8.2). Make sure you are in calibration mode (Section 8.2). The dispensed volume linked to “Button 3” will The dispensed volume linked to “Button 3”... -
Page 14: Troubleshooting Guide
Troubleshooting Guide To identify a problem with a SmartPour 1.1S follow the troubleshooting measures below: Malfunction Symptom The SmartPour does not turn on Using ONLY the provided charging cable, make sure the unit is being charged by confirming the charging indicator is lit up on its display screen. - Page 15 Remove unit from service and utilize another unit if available until SmartPour can be repaired or replaced. Please contact us at for remote support. techsupport@ecospirits.global Place order for FOC replacement SmartPour with you ecoSPIRITS supplier. Malfunctioning unit to be sent back for ecoSPIRITS diagnostics and repair. Page 14 of 19...
-
Page 16: Appendix - 1.75 L Variant
10. Appendix - 1.75 L Variant The SmartPour 1.1S (1.75L Variant) is designed to work only with the 1.75L ecoTOTE, available only in some markets. 10.1. 1.75L Variant - Accessories The following items are included in with your SmartPour 1.1S (1.75L Variant): 1 x SmartPour 1.1S... -
Page 17: L Variant - Specifications & Features
Button Cleaning & Continuous Pour Button 10.3. 1.75L Variant - Specifications & Features Your SmartPour 1.1S (1.75 Variant) has the following specifications: Dimensions: 6.3” x 6.3” x 3.1” Weight: 1.18 lbs Rated Voltage: 7.4V Rated Power: 6W Battery Capacity: 2500 mAh CE-EMC &... -
Page 18: L Variant - Calibration
10.4. 1.75L Variant – Calibration The volume dispensed is determined by the number of revolutions of the flowmeter for “Button 1”, “Button 2” and “Button 3”, and by time for “Button 4”. Upon entering Calibration Mode, the display will show the default number of revolutions for “Button 3”. - Page 19 SmartPour Calibration - Calibrate Small Volume button (<200ml) Make sure you are in calibration mode. The default reference point for “Button 3” will be reflected on the display. E.g.: 125 or 135. Note: The number may vary because the unit is pre-calibrated at the factory Every 3-reference point will increase/decrease by approximately 1 ml.
-
Page 20: Release History
Align with SP 2.0s Operation guide Rev_05 Update screen with new icon Accessory list updated Update SmartPour battery specs Time based calibration added Troubleshooting guide added Appendix 1.75L Variant added For more information, please contact techsupport@ecospirits.global Page 19 of 19...
