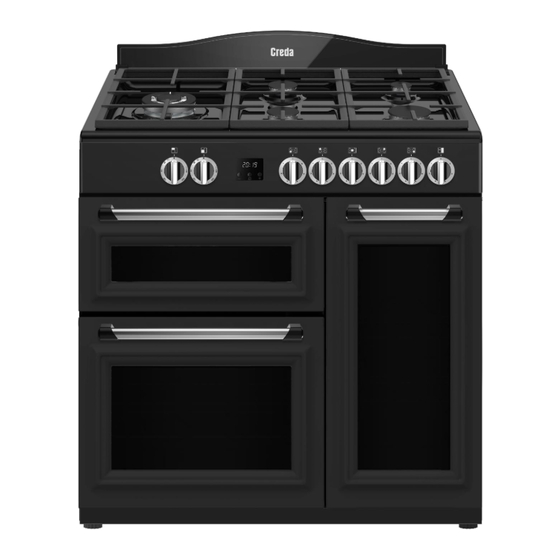

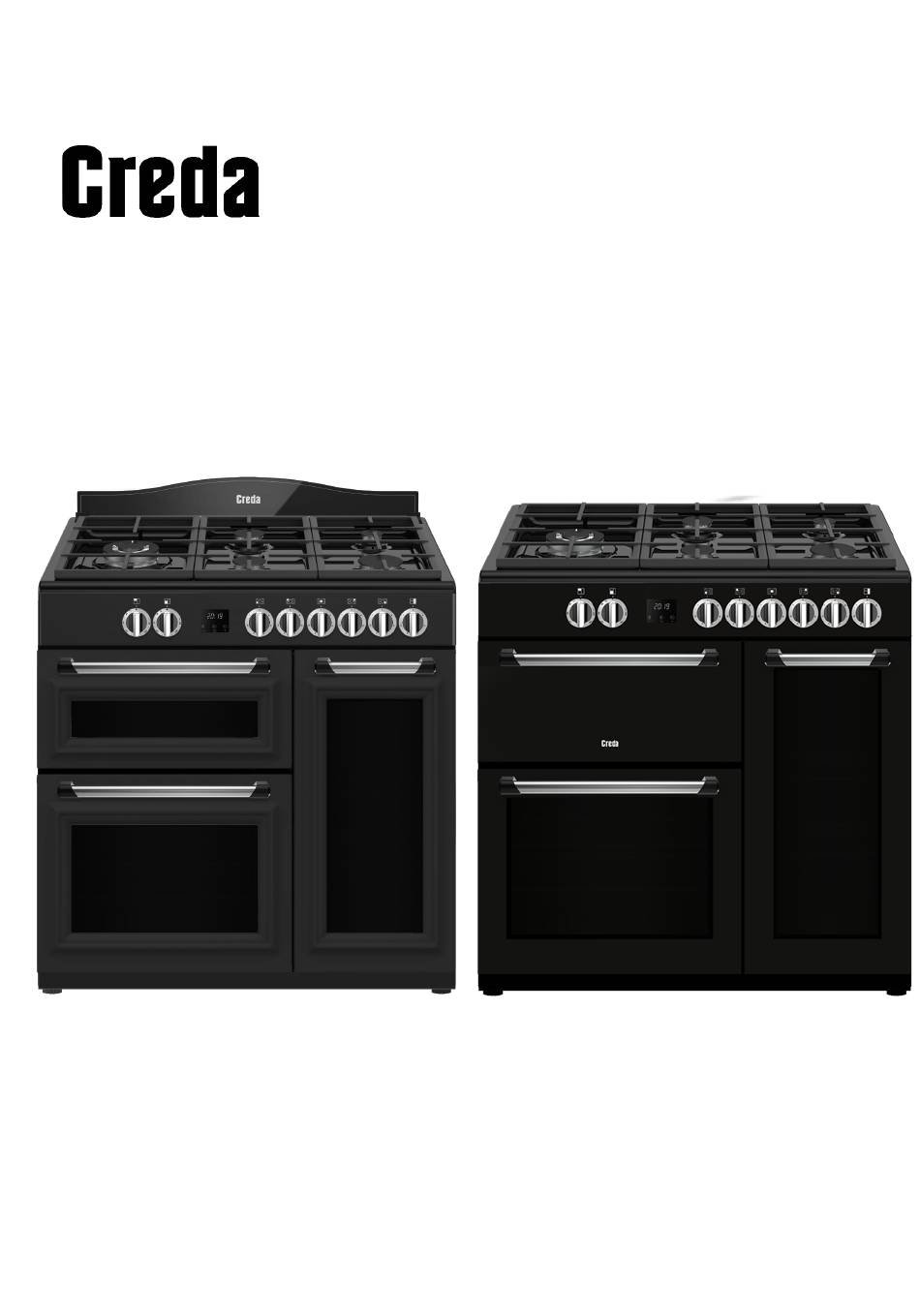

- Page 1 90CM DUAL FUEL INSTRUCTION 3 CAVITY RANGE MANUAL COOKER MODEL/S C90RCDFTBL C90RCDFTCRM C90RCDFTS C90RCDFTA V 1.0 C90RCDFCBL...
- Page 2 INSTRUCTION MANUAL You’ll soon be enjoying your new Creda Range Cooker! It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL Contents — PAGE Safety Information Getting to Know Your Appliance Overview Installation Advice Electrical and Gas Connections Using Your Appliance General Oven and Cooking Tips Oven Doors Installation and Care Using the Hob Care and Maintenance Product Support... -
Page 4: Safety Information
Range cooker IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Creda Product Support on 01759 487836. Packaging materials should be collected together and disposed of immediately as they may be harmful to children. - Page 5 INSTRUCTION MANUAL WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. WARNING: NEVER try to extinguish a cooking fire with water. Instead switch off the appliance and cover flame e.g with a lid or a fire blanket.
- Page 6 TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE OUR AUTHORISED SERVICE AGENTS AND ORIGINAL SPARE PARTS. FOR ASSISTANCE CALL CREDA PRODUCT SUPPORT 01759 487836...
-
Page 7: Getting To Know Your Appliance
INSTRUCTION MANUAL Getting to Know Your Appliance You’ll be up and running in no time! Ready? Let’s begin... Please read these instructions carefully. They contain important information which will help you get the best from your freestanding cooker and ensure safe and correct installation and operation. If you require any further assistance, our technical experts are happy to help. -
Page 8: Overview
INSTRUCTION MANUAL OVERVIEW Flame failure device (FFD) - is a part of the gas burner system that ensures that the fuel supply to the gas hob is cut off automatically and immediately if for any reason the flame goes out or becomes unstable. Wok Burner - Offers a double ring flame system which delivers high temperatures that are idea for hot / fast cooking. - Page 9 INSTRUCTION MANUAL Accessories * Not all accessories are included with your purchase...
- Page 10 INSTRUCTION MANUAL Installing your Freestanding Cooker Bringing it all together Installation requirements THIS COOKER MUST BE INSTALLED BY A QUALIFIED INSTALLER IN ACCORDANCE WITH LOCAL REGULATIONS IMPORTANT: CONTACT AN AUTHORISED SERVICE AGENT FOR INSTALLATION OF YOUR OVEN! First Use IMPORTANT: When using your oven for the first time your cooker may give off an unusual odour from the heating elements and insulation materials.
- Page 11 INSTRUCTION MANUAL Right Place for Installation and Important warnings Appliance feet should not stay on soft surfaces such as carpets. The kitchen floor shall be durable to carry the unit weight and any other kitchenware that may be used on the oven. The appliance is suitable for use on both side walls, without any support, or without being installed in a cabinet.
- Page 12 INSTRUCTION MANUAL Levelling Feet The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each corner. Rotate the feet to decrease or increase the height. Safety Chain The appliance must be secured against overbalancing by using the supplied two safety chains on your oven. Fasten hook (1) by using a proper peg to the kitchen wall (5) and connect safety chain (3) to the hook via the locking mechanism (2).
- Page 13 INSTRUCTION MANUAL Electrical Connection IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations. Fitting on a Power Supply Cable Connecting appropriate power supply ` terminal board/ connector block: ⚫...
- Page 14 INSTRUCTION MANUAL Gas Connection IMPORTANT: All gas installations must be carried out by a suitably qualified technician. For information on choosing a gas safe installer, contact the Gas Safe Register. www.gassaferegister.co.uk WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion. 1.
- Page 15 INSTRUCTION MANUAL Ventilation of room The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room ventilation is available, additional ventilation should be installed.
-
Page 16: Using Your Appliance
INSTRUCTION MANUAL Using Your Appliance Control panel 1. Temperature Controls top left Grill – Set temperature for the grill 2. Temperature control for left main oven cavity – Sets function & temperature for cooking in left oven 3. Three button programmer timer –... - Page 17 INSTRUCTION MANUAL Oven Functions Grill Fan Oven Grill: The top central heating elements comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, fillets, hamburgers etc.
- Page 18 INSTRUCTION MANUAL Minus button Plus button Time of day adjustment button SCREEN SYMBOLS Oven status indication • On: Cooking or ready for cooking. • Off: No cooking. Minute minder status indication • On: Minute minder alarm active. • Flashing: Minute minder adjustment mode, adjustment possible by buttons or current minute minder alarm completed.
- Page 19 It is also possible to use a minute-programmed alarm clock independent from the oven. The case where the time clock is behind or ahead is not a malfunction. The oven time clock may be put back or ahead according to mains frequency as it runs directly with INSTRUCTION mains voltage.
- Page 20 buttons, adjust the desired cooking duration. 3. After 6 seconds of the last button press or by pressing twice, the adjustment is completed. will be steady on the screen and the display shows the current time INSTRUCTION of day. MANUAL FULL AUTOMATIC COOKING This cooking program is intented to perform a delayed cooking by programming the time of day, when the food should be ready.
-
Page 21: General Oven And Cooking Tips
INSTRUCTION MANUAL General Oven and Cooking Tips General Oven Tips The wire shelves should always be pushed firmly to the back of the oven. Baking trays with food cooking on them should be placed level with the front edge of the oven’s wire shelves. Other containers should be placed centrally. - Page 22 INSTRUCTION MANUAL In general… Pastry is too dry Increase the temperature by 10℃and reduce the cooking time. Pastry dropped Use less liquid or lower the temperature by 10℃. Pastry is too dark on top Place it on a lower rack, lower the temperature, and increase the cooking time. Cooked well on the inside but sticky on the outside Use less liquid, lower the temperature, and increase the cooking time.
- Page 23 INSTRUCTION MANUAL Installation Of The Oven Door NOTE: To re place the oven door, perform the above instructions steps in reverse.
- Page 24 INSTRUCTION MANUAL Cleaning and Maintenance of the Oven Doors Drop Down door glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 18 and pulling the profile towards yourself as shown in figure 19 Then remove the inner-glass as shown in figure 20 If required, middle glass can be removed in the same way.
-
Page 25: Using The Hob
INSTRUCTION MANUAL Using the Gas Hob Each hob burner is regulated by a selector knob. The control allows for the efficient transfer of heat to the cooking pan. The knob can be turned in both directions, to numbers 1 to 6. These numbers correspond to the power of each burner where 6 is the highest setting and 1 is the lowest. - Page 26 INSTRUCTION MANUAL Wok Burner As it possesses double ring flame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking. When you want to use regular cooking pot on wok burner, it is necessary that you remove wok cooking pot carrier from oven.
-
Page 27: Care And Maintenance
INSTRUCTION MANUAL Care and Maintenance Cleaning WARNING! Isolate the power supply to the appliance and make sure that the cooker is cool. Before cleaning your cooker or performing maintenance, make sure that the cooking mode selection knob and the cooking temperature selection knob is set to ‘OFF’. To extend the life of your cooker, it must be cleaned frequently. The inside of the cooker should preferable be cleaned immediately after use, when it is still warm (but not hot), with warm water and soap. - Page 28 INSTRUCTION MANUAL Replacing the oven lamps ⚫ Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains; or unplug the appliance (gas) ⚫ Remove the glass cover of the lamp-holder by rotating anti-clockwise ⚫...
- Page 29 INSTRUCTION MANUAL WARNING: For the modification to be done by authorized service, this table should be considered. Manufacturer may not be held responsible for any problems rising because of any faulty modification. WARNING: In order to increase the product quality, the technical specifications may be changed without prior notice.
- Page 30 INSTRUCTION MANUAL Technical specification...
- Page 31 INSTRUCTION MANUAL Technical Specification...
-
Page 32: Product Support
INSTRUCTION MANUAL Product Support Troubleshooting If you have a problem with your appliance, check the table below before calling service. You may be able to avoid a service call by and avoid unnecessary inconvenience and expense. For cooking problems, refer to Handling Baking Problems. Problem Causes What to Do... - Page 33 Local call rates apply* Lines open 9am-5:30pm Monday to Friday *Calls to Creda enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details.
- Page 34 • Specifications are subject to change without notice. • Creda disclaim any liability for loss or damage arising from the breakdown of the product. • This guarantee is in addition to and does not diminish your statutory or legal rights.
- Page 35 Declaration of conformance to product standards This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK. Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
