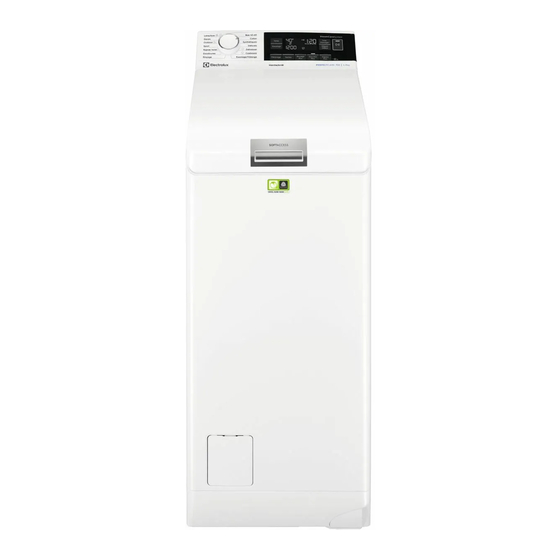

  • Page 1 EW7T3733DV Washing Machine User Manual...

  • Page 2: Table Of Contents

    17. ENVIRONMENTAL CONCERNS..............38 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 4: Safety Instructions

    – working environments; by clients in hotels, motels, bed & breakfast and – other residential type environments; areas for communal use in blocks of flats or in – launderettes. The appliance maximum load is 7 kg. Do not exceed •...
  • Page 5 ENGLISH • Follow the installation instructions • Do not touch the mains cable or the supplied with the appliance. mains plug with wet hands. • Do not install or use a damaged • Do not pull the mains cable to appliance.

  • Page 6: Product Description

    • Make sure that all metal objects are repairers, and that not all spare parts removed from the laundry. are relevant for all models. • Concerning the lamp(s) inside this 2.5 Service product and spare part lamps sold separately: These lamps are intended •...
  • Page 7 ENGLISH 3.2 Appliance overview 10 11 Control panel Drain hose Mains cable Lid push handle Transit bolts Drain pump filter Hose support Lever to move the appliance Rating plate Feet for levelling the appliance Inlet hose Information for register product. The rating plate reports the model name The info label reports the model name (A), (A) , product number (B), electrical...

  • Page 8: Technical Data

    4. TECHNICAL DATA Dimension Width/ Height/ Total depth 39,7 cm /90,8 cm /59,9 cm Electrical connection Voltage 230 V Overall power 2200 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, except...
  • Page 9 ENGLISH We recommend that you keep the packaging and the transit bolts for any transport of the appliance. Adjust the appliance correctly to prevent vibration, noise and movement of the appliance when it operates. WARNING! Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.
  • Page 10 5.3 Water drainage min.600 mm max.1000 mm The drain hose should stay at a height of no less than 600 mm and not more than 1000 mm. You can extend the drain hose to maximum 4000 mm. Contact the authorised service centre for the other drain hose and the extension.

  • Page 11: Control Panel

    ENGLISH 6. CONTROL PANEL 6.1 Control panel description Programme dial Vapeur Plus touch button Essorage reduction options touch Douceur Plus touch button button Rinçage Plus touch button Temp. touch button Taches touch button Display Prélavage touch button Départ Différé touch button Marche/Arrêt push button Time Manager touch button Départ/Pause...
  • Page 12 The Temperature area: Temperature indicator Cold water indicator Child safety lock indicator. Delay start indicator. Lid locked indicator. The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( • Warning code (e.g.

  • Page 13: Dial And Buttons

    ENGLISH 7. DIAL AND BUTTONS 7.1 Introduction • Additional spin options No Spin The options/functions are Set this option to deactivate all spin not available with all phases. The appliance performs the washing programmes. only draining phase of the selected Check the compatibility washing programme.
  • Page 14 7.5 Prélavage 7.8 Permanent Douceur Plus With this option you can add a prewash Set this option to optimise the fabric phase to a washing programme. softener distribution and improve fabric softness. The corresponding indicator above the touch button illuminates.
  • Page 15 ENGLISH 7.11 Time Manager indicator With this option you can reduce the programme duration depending on the load size and the degree of soiling. When you set a washing programme, the display shows the default duration and dashes. Touch Time Manager button to reduce ■...

  • Page 16: Programmes

    8. PROGRAMMES 8.1 Programme Chart Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and level of soiling) perature speed load Temperature Spin range speed range Washing programmes Eco 40-60 1300 rpm 7 kg White cotton and fast-coloured cotton.
  • Page 17 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and level of soiling) perature speed load Temperature Spin range speed range 1 kg Wool and cashmere. Short programme to re‐ fresh maximum 1 kg of machine and hand Cashmere washable woolen and cashmere garments without washing.
  • Page 18 Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and level of soiling) perature speed load Temperature Spin range speed range 1200 rpm 2 kg Do not use fabric softener and (1200- 400 Outdoor make sure that there is no soften‐...
  • Page 19 ENGLISH Programme Reference Maxi‐ Programme description Default tem‐ spin (Type of load and level of soiling) perature speed load Temperature Spin range speed range 1200 rpm 1,5 kg Machine washable wool, hand washable (1200 - wool and other fabrics with «hand washing» Laine/Soie 400 rpm) care symbol...
  • Page 20 Programme Doudounes ■ ■ ■ Rapide 14min ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Sport ■ ■ ■ ■ ■ Outdoor Denim ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Laine/Soie 1) Prélavage and Taches cannot be selected together.

  • Page 21: Settings

    ENGLISH 8.2 Woolmark Apparel Care - Green The wool wash cycle of this machine has been approved by The Woolmark Compa‐ ny for the washing of wool garments label‐ led as «hand wash» provided that the gar‐ ments are washed according to the instruc‐ tions issued by the manufacturer of this washing machine.

  • Page 22: Daily Use

    11. DAILY USE 11.3 Detergent compartments. WARNING! Using detergent and additives Refer to Safety chapters. 1. Measure out specified detergents and 11.1 Activating the appliance the fabric conditioner. 2. Put the detergent and the fabric 1. Connect the mains plug to the mains socket.
  • Page 23 ENGLISH Detergent compartment for washing phase. The marks MAX are the maximum levels of the quantity of detergent (powder or liquid). Compartment for liquid additives (fabric conditioner, starch). The mark is the maximum level for the quantity liquid additives. Flap for powder or liquid detergent. 11.4 Liquid or powder detergent CLICK CLICK...
  • Page 24 11.8 The SensiCare System The drain pump can operate load detection shortly before the appliance fills water. The programme duration in the display is referred to a 11.7 Starting a programme with medium/high load. the delay start After touching the Départ/Pause 1.
  • Page 25 ENGLISH There is also an alternative way of The SensiCare detection is cancelling: carried out with complete 1. Rotate the selector knob to the "Reset" washing programmes only position and if the programme 2. Wait for 1 second. The display shows duration has not been reduced by means of the Time Manager button.

  • Page 26: Hints And Tips

    When you activate the The option indicator Rinse Hold appliance again, the display Nuit disappears. shows the end of the 3. When the programme is completed previous programme. Turn and the lid locked indicator goes the programme dial to set a off, you can open the lid.
  • Page 27 ENGLISH 12.3 Detergent type and • Be careful with curtains. Remove the hooks and put the curtains in a quantity washing bag or pillowcase. • A very small load can cause balance The choice of detergent and use of problems with the spin phase leading correct quantities not only affects your to excessive vibration.

  • Page 28: Care And Cleaning

    12.4 Ecological hints • Set the maximum possible spin speed for the selected washing To save water, energy and to help programme before drying your protect the environment, we recommend laundry in a tumble dryer. This will that you follow these tips: save energy during drying! •...
  • Page 29 ENGLISH 13.3 External cleaning 13.6 Cleaning the drum Clean the appliance with mild soap and Regularly examine the drum to prevent warm water only. Fully dry all the unwanted deposits. surfaces. Do not use a scouring pads or Rust deposits in the drum may occur due any scratching material.
  • Page 30 13.8 Cleaning the detergent dispenser 13.9 Cleaning the drain filter WARNING! • Disconnect the mains Regularly check the drain pump filter and plug from the mains make sure that it is clean. socket. Clean the drain pump if: • Do not remove the filter while the appliance •...

  • Page 31: Troubleshooting

    ENGLISH 13.10 Cleaning the inlet hose and the valve filter 13.11 Emergency drain 1. Disconnect the mains plug from the mains socket. If the appliance cannot drain the water, 2. Close the water tap. carry out the same procedure, described 3.
  • Page 32 14.1 Alarm Codes and Possible failures The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. With some problems, the display shows an alarm code and the Départ/Pause...
  • Page 33 ENGLISH Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance lid and drum door are closed. • Make sure that there is no damaged fuse in the fuse box. The programme does •...

  • Page 34: Consumption Values

    Problem Possible solution • Increase the detergent quantity or use a different deter‐ gent. The washing results • Use special products to remove the stubborn stains before are not satisfactory. you wash the laundry. • Make sure that you set the correct temperature.
  • Page 35 ENGLISH Remaining moisture at the end of spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture. Values and programme duration may differ depending on different conditions (e.g. room temperature, water temperature and pressure, load size and type of laundry, supply voltage) and also if you change the default setting of a programme.

  • Page 36: Quick Guide

    Programme Litres h:mm °C Délicats 0.35 1:00 1200 30°C Laine/Soie 0.20 1:10 1200 30°C 1) Reference indicator of the spin speed. 2) Suitable for washing heavily soiled textiles. 3) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics.
  • Page 37 ENGLISH 16.2 Cleaning the drain pump filter Clean the filter regularly and, especially, if the alarm code appears on the display. 16.3 Programmes Programmes Load Product description White and coloured cottons. Normally Eco 40-60 7 kg soiled garments. 7 kg White cotton and coloured cotton.

  • Page 38: Environmental Concerns

    Programmes Load Product description 2 kg Modern outdoor sporting garments. Outdoor 1 kg 2 kg Denim clothing. Denim Machine washable wool, hand washable 1,5 kg wool and delicates. Laine/Soie 1) Washing programme. 2) Washing programme and waterproofing phase. 17. ENVIRONMENTAL CONCERNS...
  • Page 39 ENGLISH...
