Public Safety Equipment CODE 3 FM 9000 Installation & Operation Manual

Flush-mount lightbar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
& OPERATION
MANUAL

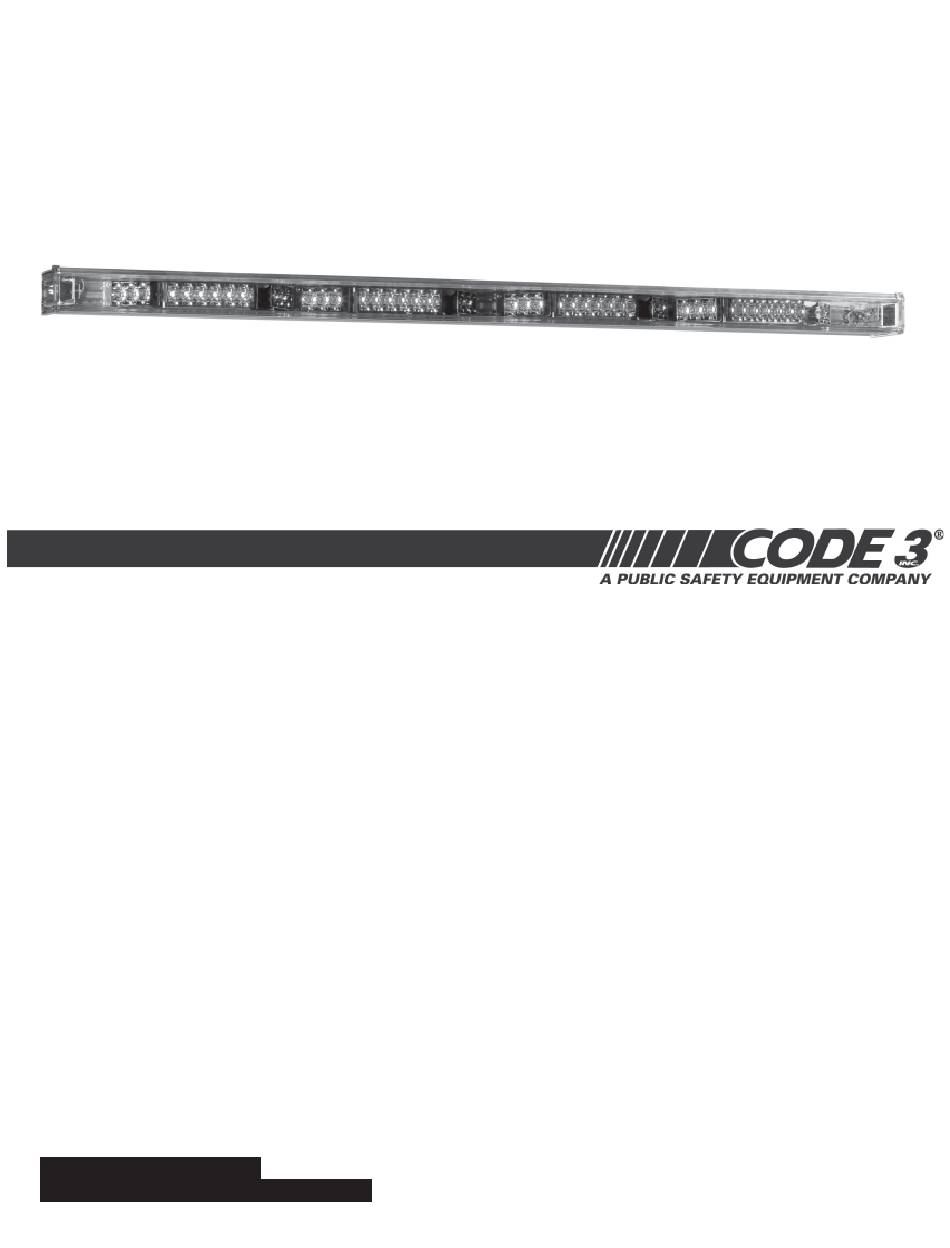

FM 9000 FLUSH-MOUNT LIGHTBAR
FLUSH-MOUNT LIGHTBAR
IMPORTANT:
Contents:
Introduction ............................................................. 2
Unpacking & Pre-Installation ................................... 2
Installation & Mounting ............................................ 3
Wiring Instructions ................................................... 4
LED Warning Devices ............................................. 4
Maintenance ............................................................ 6
Troubleshooting ....................................................... 7
Parts List ................................................................. 8
Dimensions ............................................................. 9
Notes ..................................................................... 10
Warranty ................................................................ 12
Read all instructions and warnings before installing and using.
INSTALLER:
This manual must be delivered to the end user of this equipment.
FM 9000
1
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CODE 3 FM 9000 and is the answer not in the manual?

Questions and answers

Related Manuals for Public Safety Equipment CODE 3 FM 9000

Summary of Contents for Public Safety Equipment CODE 3 FM 9000

  • Page 1: Table Of Contents

    INSTALLATION & OPERATION MANUAL FM 9000 FLUSH-MOUNT LIGHTBAR FM 9000 FLUSH-MOUNT LIGHTBAR Contents: Introduction ............. 2 Unpacking & Pre-Installation ........2 Installation & Mounting ..........3 Wiring Instructions ........... 4 LED Warning Devices ..........4 Maintenance ............6 Troubleshooting ............7 Parts List ..............

  • Page 2: Introduction

    Public Safety Equipment, Inc., assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of this warning device and the safe operation of the emergency vehicle.

  • Page 3: Installation & Mounting

    Installation & Mounting Select the desired mounting location for the lightbar. This product is attached with 1/4" carriage bolts whose centerlines are 1.3" below the top of the lightbar (Figure 1). Locate the bolts along the back of the lightbar. The number of mounting bolts varies with the length of the lightbar.

  • Page 4: Wiring Instructions

    Wiring Instructions Larger wires and tight connections will provide longer service life for components. For high current wires it is highly recommended that terminal blocks or soldered connections be used with shrink tubing to protect the connections. Do not use insulation displacement connectors (e.g. 3M Scotchlock type connectors).
  • Page 5 LED MODULES The LED modules are available as “flashing” and “steady burning” versions. The steady burning versions can be flashed by connecting the module(s) to any flasher that does not require ground through the load (example: Code 3® 925 or 700 series relay flasher). The flashing modules will have "Cycle flash"...

  • Page 6: Maintenance

    Maintenance Make sure power is disconnected to the lightbar before servicing. Refer to Figure 4a. To remove the lens, remove the 4 screws on each endcap as shown. Remove all clips (Figure 4b) on the front face of the lens and frame with a flat blade screwdriver. Please note that the lens comes off the front! It does not slide out.

  • Page 7: Troubleshooting

    Troubleshooting All FM 9000 lightbars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the factory technical help line at 314-996-2800.

  • Page 9: Dimensions

    FM 9000 OVERALL DIMENSIONS DESCRIPTION LENGTH DEPTH HEIGHT FM9013 12.875 4.320 3.040 FM9023 22.875 4.320 3.040 FM9036 35.875 4.320 3.040 FM9049 48.875 4.320 3.040 FM9062 61.875 4.320 3.040 FM9075 74.875 4.320 3.040 FM9088 87.875 4.320 3.040 4.161 2.810 2.600 Frame Dimensions Only 4.317 3.041 2.842...

  • Page 10: Notes

    NOTES:...
  • Page 11 NOTES:...

  • Page 12: Warranty

    WARRANTY This product was tested and found to be operational at the time of manufacture. Provided this product is installed and operated in accordance with the manufacturer's recommendations, Code 3 ® , Inc. guarantees all parts and components, except the halogen lamps, for a period of 1 year, LED lighthead modules to a period of 5 years (unless other- wise expressed) from the date of purchase or delivery, whichever is later.
