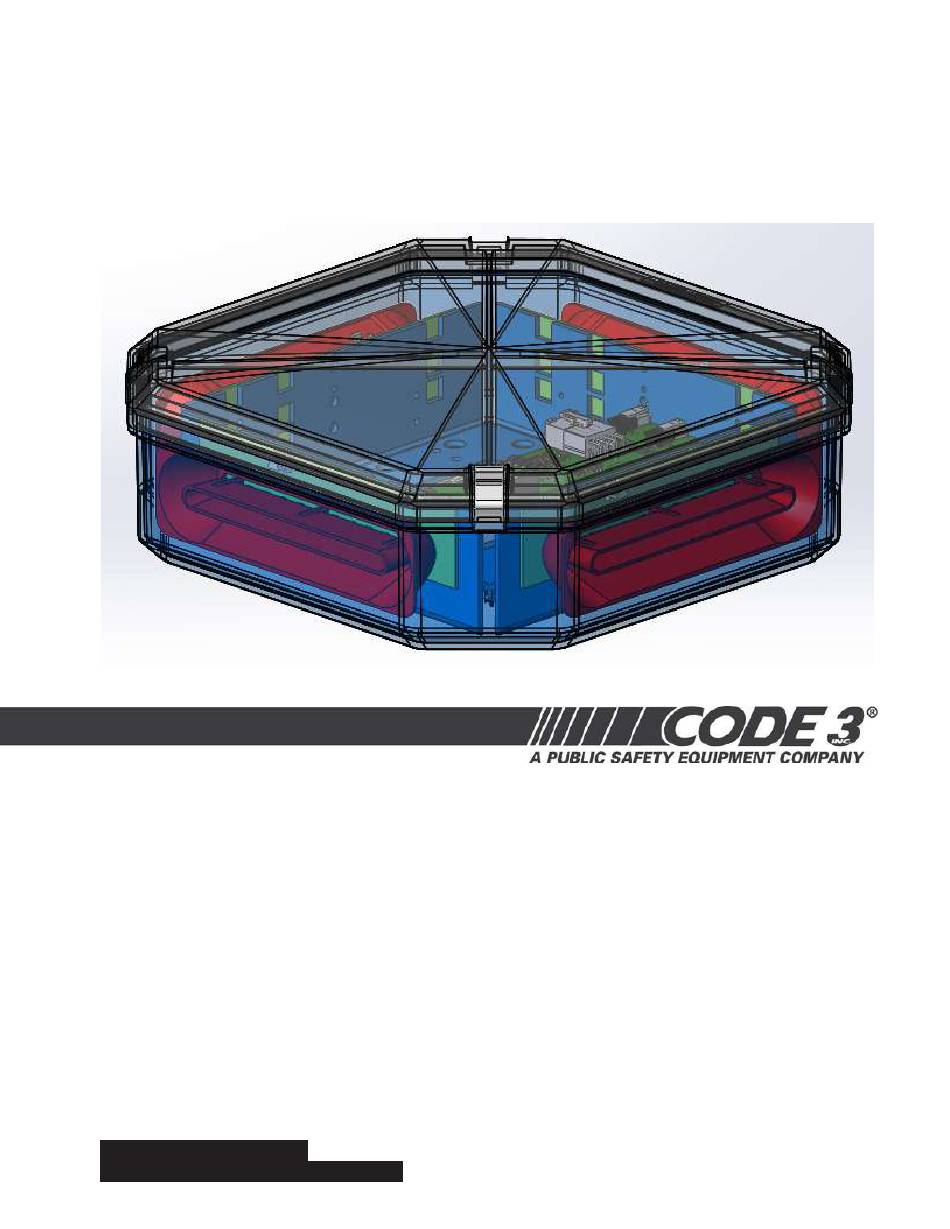

DuoBeam II
IMPORTANT:
INSTALLATION
& OPERATION
MANUAL
CONTENTS:
Introduction..... .............................................................................2
Unpacking & Pre-Installation........................................................2
Installation & Mounting.................................................................2
Wiring & Fusing............................................................................4
LED Lighthead Description & Pattern Change.............................5
Parts List......................................................................................8
Dimensions & Specifications......................................................11
Maintenance...............................................................................11
Warranty.....................................................................................12
Read all instructions and warnings before installing and using.
This manual must be delivered to the end user of this equipment.
:
INSTALLER
1
Advertisement
Table of Contents
Related Manuals for Public Safety Equipment Code 3 DuoBeam II DB2-2LMCNFPA1
Summary of Contents for Public Safety Equipment Code 3 DuoBeam II DB2-2LMCNFPA1
-
Page 1: Table Of Contents
INSTALLATION & OPERATION MANUAL DuoBeam II CONTENTS: Introduction..................2 Unpacking & Pre-Installation............2 Installation & Mounting..............2 Wiring & Fusing................4 LED Lighthead Description & Pattern Change......5 Parts List..................8 Dimensions & Specifications............11 Maintenance................11 Warranty..................12 Read all instructions and warnings before installing and using. IMPORTANT: This manual must be delivered to the end user of this equipment. -
Page 2: Introduction
Introduction The LED DuoBeam II uses state of the art LEDs and optics to provide superior optical output. The rugged design and long life capabilities make it virtually maintenance free. When properly configured, the Duo-Beam will exceed SAE Class 1 and California Title 13 requirements. The use of this or any warning device does not ensure that all drivers can or will observe or react to an emergency warning signal. - Page 3 MAGNETIC MOUNT Insert carriage bolts into track. Place molded shims over bolts as shown. Attach magnetic base over bolts. Place lock washer and nut on bolt then tighten until snug. MOLDED SHIM (PN 1064) RB 80 MAGNETIC BASE (PN 499) 5/16"...
-
Page 4: Wiring & Fusing
Wiring & Fusing Larger wires and tight connections will provide longer service life for components. For high current wires it is highly recommended that terminal blocks or soldered connections be used with shrink tubing to protect the connections. Do not use insulation displacement connectors (e.g. -
Page 5: Led Lighthead Description & Pattern Change
LED Lighthead Description and Pattern Change The DuoBeam can be populated with one of three different types of Code 3 LED's - PriZm II , Torus TriCore technologies. The PriZm and Torus lightheads are available with an integrated flash control and do not require a separate flasher, however, all models CAN be controlled by a flasher. - Page 6 Torus (Integrated flasher in lighthead) Flash Pattern Description 1. Cycle Flash (DEFAULT)--------------Cycles through various patterns @ 70 fpm 2. NFPA Quad Flash 80 FPM-----------Four Pulses per flash @ 80 fpm 3. Quad Flash 70 FPM--------------------Four Pulses per flash @ 70 fpm 4. Steadyburn-------------------------------Steady-Burn 5.
- Page 7 Progressive vs. Independent Switching Depending on how the blue, orange, and yellow activation wires are connected, different levels of control are possible. For example, activating the blue wire allows a flash pattern to be set. Activating the blue + orange wires allows a different pattern to be set. Activating only the orange wire allows yet another to be set. Seven combinations are possible.
-
Page 8: Parts List
Parts List for DuoBeam with PriZm II Technology Integrated flasher and Central controller available Ref No. Description Part No. Frame Extrusion Assembly S24358 Lower Lens Clear T16541 T16542 Blue T16543 Amber T16544 Upper Lens (not shown for clarity) Clear T16551 T16552 Blue T16553 Amber T16554 Black T16559 Lens Clip... - Page 9 Parts List for DuoBeam with TriCore Technology Available only with Central Controller Ref No. Description Part No. ****Unless otherwise noted, parts numbers are same as PriZm II model from previous page**** TC6 lighthead assembly - Contact factory for specific color Base Locating Plate S24359 Lighthead Mounting Bracket (2 required) S24355 Mounting Bracket for Central Controller S24362 Central controller (CC) T11568 Cable (not shown) 20' (CC)
- Page 10 Parts List for DuoBeam with Torus technology Integrated flasher and Central controller available Ref No. Description Part No. ****Unless other wise noted, part numbers are same as PriZm II from previous page**** TRS6 lighthead assembly (with integrated flasher) TRS6 dual stack lighthead assembly (with integrated flasher) Call Factory TRS6 lighthead assembly (CC) TRS6 dual stack lighthead assembly (CC) Lighthead Mounting Bracket (two required) S24354 Mounting Bracket for Central Controller (only on CC models)
-
Page 11: Dimensions & Specifications
Dimensions & Specifications Physical Dimensions - 10.28"L x 10.28"W x 3.30"T Average Weight - 6 lbs. Materials: Upper &Lower Lens - Polycarbonate Extruded frame - Aluminum alloy Electrical Data: All lightheads have Reverse Polarity Protection installed Operating Voltage: 10-16 VDC Current Draw: PriZm II (for all colors) REF8 - .75A average... -
Page 12: Warranty
10986 N. Warson Road St. Louis, Missouri 63114-2029—USA Ph. (314) 426-2700 Fax (314) 426-1337 Part No. T16572 REV. 0 08/2012 ©2012 Code 3, Inc Code 3 ® is a registered trademark of Code 3, Inc., a subsidiary of Public Safety Equipment, Inc.
