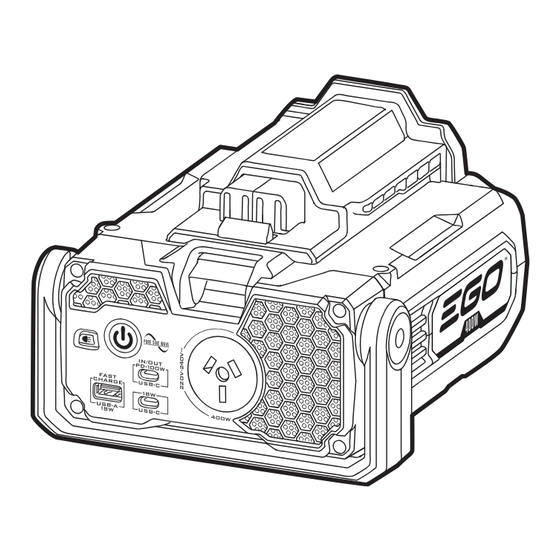

- Page 1 OPERATOR’S MANUAL 56-VOLT POWER INVERTER MODEL NUMBER PAD5000E WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_PAD5000E_AV01.01_230523...
- Page 2 Ejection Mechanism Electric LED Lights Contacts Battery-Release Button Power Button Latch LED Button USB-C Port 1 AC Output (Output) Port Handle USB-C Port 2 USB-A Output (Input / Output) Button Power Button LED Lights...
-
Page 3: Safety Instructions
“CAUTION” before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, Frequency (cycles per Hertz and/or serious personal injury. second) Voltage-Amperes Power Kilogram Weight Minutes Time °C Celsius Temperature 56 VOLT POWER INVERTER — PAD5000E... -
Page 4: Important Safety Instructions
Range for Charging ◾ Have your power inverter serviced by a qualified repairperson using only identical replacement parts. ◾ This will ensure that the safety of the power inverter is maintained. 56 VOLT POWER INVERTER — PAD5000E... -
Page 5: Operation
LED lights are turned off ATTACHING/DETACHING THE BATTERY PACK In any mode, press and hold the LED button for more Use only with EGO’s battery packs and chargers listed in than 1 second and the lights will switch into flashing, Fig. A2. - Page 6 Under any work condition (charging or discharging), the LED Indicator on battery pack will behave as described here: For EGO battery packs BA1400, BA2800, and BA4200, the LED flashes GREEN, RED and ORANGE alternately. For EGO battery packs BA1400T, BA2800T, BA4200T, BA5600T, and BA6720T, last LED flashes GREEN and the former LEDs shine solid GREEN, OR LEDs shine solid GREEN according to battery capacity.
-
Page 7: Maintenance
ORANGE LED fades in and out, that means “charging automatically in 2 hours. the EGO battery pack”. To charge battery pack The power inverter can charge the EGO battery when a MAINTENANCE USB-PD compatible charger is connected to the USB-C input/output port 2 (5/9/12/15/20V, up to 100 VA). -
Page 8: General Maintenance
◾ Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of the children. Do not store the unit on or adjacent to fertilizers, gasoline, or other chemicals. 56 VOLT POWER INVERTER — PAD5000E... -
Page 9: Troubleshooting
OR. The inverter cannot discharge when external devices connected to ◾ using USB-C ports 1 or 2. Turn OFF the inverter and restart USB-C ports 1 or 2. 56 VOLT POWER INVERTER — PAD5000E... -
Page 10: Warranty Policy
The warranty applies to the original purchaser and applies only to purchases made from authorised EGO Dealers, which can be confirmed on the website store locator. For avoidance of doubt, 3rd party online stores such as eBay, Gumtree, Amazon, etc. are excluded. - Page 11 Commercial Tools: LBX6000, BCX3800, STX3800, HTX7500, CSX3000, PPX1000, PSX2500, PTX5100, BHX1001, STX4500, 5 years 2 years BCX4500, EDX2000, HTX5300-P, HTX5300-PA, LBPX8000 Commercial Backpack Battery: BAX1501 3 years 2 years Commercial Charger: CHX5500E 3 years 2 years 56 VOLT POWER INVERTER — PAD5000E...
