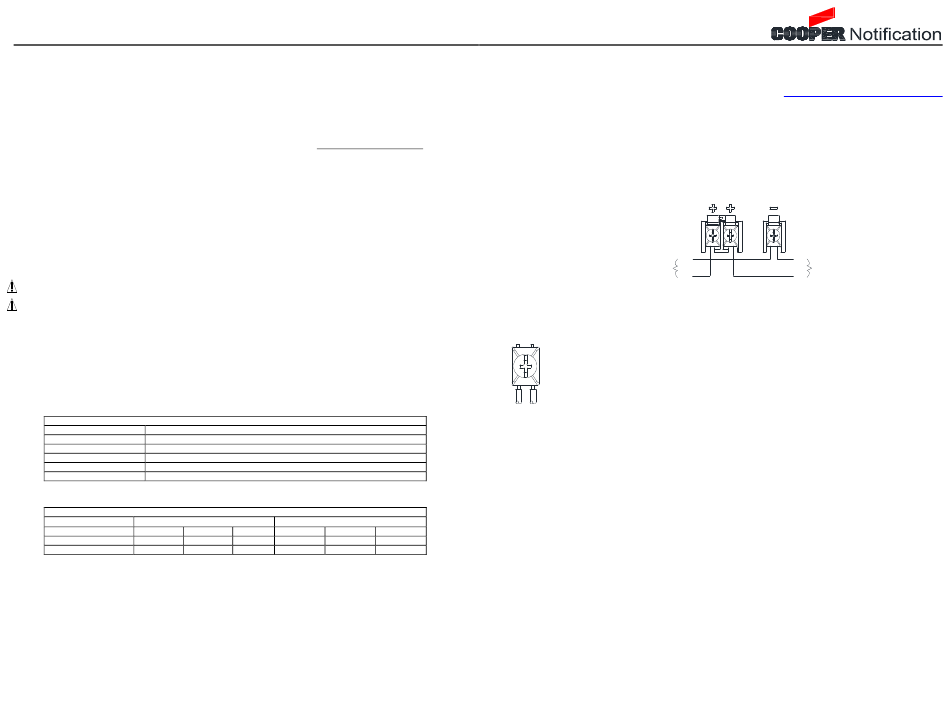

INSTALLATION INSTRUCTIONS
WHEELOCK ELUXA STROBE,
WITH PRE-WIRE/PRE-TEST
CEILING MOUNT (BLUE LENS)
aUse this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

The Wheelock Eluxa ELSTC-B multi-candela strobes are designed for easy installation with a pre-wire capable mounting plate. All models
are for 24V operation. ELSTC-B is designed for ceiling mounting only.
The Wheelock Eluxa Series meets NFPA 2016 20 millisecond light pulse duration code requirements. In addition, the Wheelock Eluxa and
LED3 product lines have been UL/ULC listed as compatible with all Fire Alarm Control Panels (FACP) and accessories that have been
determined to be compatible with Wheelock model RSS Strobe based products including the RSS, CH, E, EH, ET,ST, HS, MT, S8, SA,
STH and Z Series. The maximum number of Eluxa devices per NAC is determined by dividing the maximum current rating of the FACP
NAC by the total current rating of one Eluxa device, with a maximum of 105 Eluxa (or LED3) devices per NAC. Refer to FACP installation
instructions for more detail. The Wheelock Eluxa Series and Exceder LED3 Series strobes may be installed in the same notification zone
and field of view with any RSS Strobe based product.
Wheelock Eluxa Strobes can provide a non-synchronized strobe appliance when connected directly to a Fire Alarm Control Panel (FACP),
or provide a synchronized strobe appliance when used in conjunction with an FACP that incorporates the Cooper Wheelock sync protocol,
a Dual Sync Module (DSM), or the Wheelock Power Supply.
CAUTION: Do not change factory applied finishes. "DO NOT PAINT".
ATTENTION: Ne pas modifiez les finitions appliquées en usine. "NE PAS PEINTURER"
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
INSTRUCTIONS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN
AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.

SPECIFICATIONS:

Models ELSTC-B (Strobe with Blue Lens)
Agency UL1638, UL1971, CAN/ULC-S526-16
Input Voltage DC or FWR, 24V Regulated. 16 to 33V (All models)
Strobe Candela 5, 12, 30, 40, 50, 65cd (field selectable)
NAC Characteristics Max. line resistance: 35Ω
Environmental Indoor Use Only. 0° C - 50° C (32° F - 122° F) 93% R.H.
*UL1638 is an on axis rating where the following applies: effective candela rating per UL1971.
Table 2: ELSTC-B Strobe Current Ratings (AMPS)
Regulated 24DC (16-33VDC)
Candela Setting 5cd
DC 0.022
FWR 0.036
When calculating the total strobe current: Use Table 2 to determine the highest value of "RMS Current" for an individual appliance, then
multiply these values by the total number of appliances; be sure to add the currents for any other appliances powered by the same source
and include any required safety factors.
Make sure that the total RMS current required required by all appliances that are connected to the system's PRIMARY and SECONDARY
power sources, NAC circuits, DSM Sync Modules or Cooper Wheelock Power Supplies does not exceed the power sources' rated capacity
or the current ratings of any fuses on the circuits to which these appliances are wired.
Check the minimum and maximum output of the power supply and standby battery, and subtract the voltage drop from the circuit wiring
resistance to determine the applied voltage to the appliance.
PN P85756-002D
Table 1: Specifications
Regulated 24FWR (16-33VRMS)
12cd 30cd 40cd 50cd
0.030 0.060 0.086 0.125
0.050 0.092 0.142 0.196
Copyright 2022 Cooper Wheelock, Inc. dba Cooper Notification

WIRING DIAGRAMS:

*Refer to Dual Sync Module instruction sheets DSM (P83177) or Wheelock's Power Supplies for additional information.
Figure 2:

NOTES:

1. Strobe settings will determine the current draw of the product.
2. The strobe will produce 1 flash per second over the "Regulated Voltage" range.
3. Strobe is not designed to be used on coded systems in which the applied voltage is cycled on and off.
4. The maximum number of Eluxa (or LED3) strobes on a single notification appliance circuit shall not exceed 105.
5. Blue strobes are not to be used as a Visual Public Mode alarm notification appliance.
6. These appliances are UL Listed as "Regulated". They are intended to be used with FACPs whose notification circuits are UL Listed
as "Regulated." Refer to the FACP instructions or the Wheelock Strobe Compatibility Data Sheet (P85328) for special application
and strobe synchronization compatibility.
7. These appliances were tested to the regulated voltage limits of 16.0-33.0 Volts. Do not apply voltage outside of this range. Check
the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring
65cd
resistance to determine the applied voltage to the strobes. The max wire impedance between strobes shall not exceed 35 ohms.
0.185
8. Make sure that the total RMS current required by all appliances that are connected to the system's primary and secondary power
0.274
sources, notification appliance circuits, DSM sync modules, or Cooper Wheelock power supplies does not exceed the power sources
rated capacity or the current ratings of any fuses on the circuits to which these appliances are wired.
9. The effect of shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the
original cartons and not subjected to misuse or abuse.
Figure 1: ELSTC-B
-
FROM PRECEDING APPLIANCE
FACP, POWER SUPPLY
+
OR SYNC MODULE
1. This model has in-out wiring terminals that accept #12 to #18 American Wire Gauge (AWG) wires
at each screw terminal. Strip leads 3/8 inches and connect to screw terminals.
2. Break all in-out wire runs on supervised circuits to assure integrity of circuit supervision as shown
in Figure 2. The polarity shown in the wiring diagrams is for operation of the appliances. The polarity
is reversed by the FACP during supervision.
273 Branchport Ave.
Long Branch, N.J. 07740
(800) 631-2148
Eaton.com/Lifesafetynotification
-
TO NEXT
APPLIANCE
+
OR E.O.L.R.
