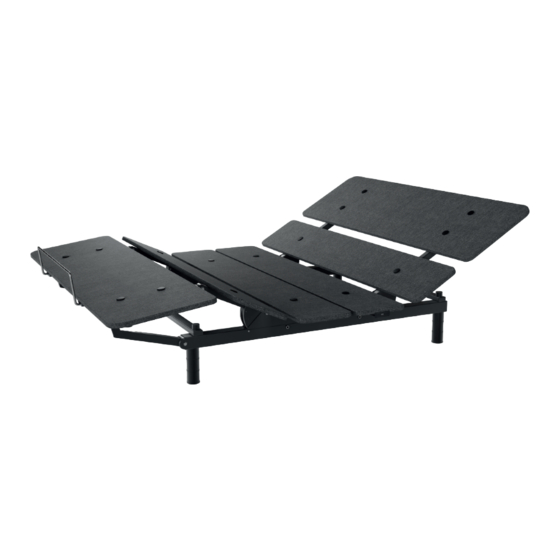

- Page 1 MODEL: WAVE BED BY ROTEC ADJUSTABLE BED FRAME OWNER’S MANUAL Document Version 1 | May 2023...
-
Page 2: Table Of Contents
This original documentation is protected by copyright. All rights, especially the rights to translate or reproduce the document, are reserved. No part of this manual may be reproduced mechanically, electronically, or by other means, in any form, without prior written permission of ROTEC INTERNATIONAL. Violations involving copyright may result in legal action. -
Page 3: Safety
Bed Frames. The Bed Frame must not be used without a mattress, or with water-based mattresses. The Bed Frame may only be assembled and used by adults. It is not designed for children or animals. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 03... - Page 4 Usage outside of the intended use described in this Owner’s Manual is only allowed with written consent by ROTEC. Improper operation or usage outside of the intended use can result in personal injury and damage to the system. Liability and warranty claims are void in cases of usage outside of the intended use.
- Page 5 NOTICE The signal word NOTICE indicates a situation that will not lead to personal injury, but could lead to damage to the product or the environment. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 05...
- Page 6 ▪ Do not apply the maximum load to the Foot or Head Platforms ▪ Do not sit on the mattress while the Bed Frame is in motion. Distribute your weight evenly 06 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL...
- Page 7 ▪ Activate the Child Lock when children are present ▪ Keep children away from moving Platforms ▪ Do not allow children to play with the Bed Frame SAVE THESE INSTRUCTIONS WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 07...
-
Page 8: Introduction
▪ Unauthorized changes to the operating parameters ▪ ROTEC assumes no liability for technical or printing errors, for deficiencies in this documentation, or for damages caused directly or indirectly by the delivery, performance, or usage of this documentation. 08 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... - Page 9 A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED." The symbol (square within a square) is also able to be marked on the product. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 09...
-
Page 10: Box Contents
Upon opening the packaging, use this checklist to ensure all the parts are present and in perfect condition. If any part is damaged or missing, contact ROTEC. You can find the relevant contact details at the beginning of the Owner's Manual. Ensure that the box is stored in a flat position in a dry place at room temperature. - Page 11 Only one USB port for Twin XL size BASE INNER PLATFORM QUICK START GUIDE INNER OWNER'S MANUAL INNER PLATFORM INNER FOOT PLATFORM FOOT 16X PLATFORM SCREW RETAINER BAR WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 11...
-
Page 12: Assembly
CAUTION Risk of minor or moderate injury through cutting Contact with sharp edges may lead to minor or moderate injury through cutting. ▪ Avoid contact with sharp edges 12 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... - Page 13 2. Turn the Leg to screw it into the Side Rail. It should be hand tight. 3. Repeat Steps 1 and 2 to Screw in the other 3 Legs. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 13...
- Page 14 Rail and the Crossbar. Turn the Knob clockwise until it is hand tight. 3. Repeat steps 1 and 2 for the second Crossbar. REMOVE STRAPPING TAPE REMOVE PROTECTIVE MATERIAL 14 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL...
- Page 15 While mounting the Platforms, you may have to step over the Power Cable. Tripping over the Cable may lead to injury. ▪ Be careful not to trip over the Cable 1. Lay the Base Platform (H) upside down across the Bed Frame. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 15...
- Page 16 2 Mounting Holes on each Side Rail (A, B) either side of the Platform. 3. Use 4 Platform Screws (M) to each screw until it is hand-tight. 16 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL...
- Page 17 Use the labels on the Side Rails (A, B) to ensure the Platforms are at the right end. ▪ Ensure the the Platforms are oriented correctly. The curved edges should face outwards and the Brackets for the Retainer Bar should face downwards. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 17...
- Page 18 2. Connect the main power cable to the Power Converter then to the main. 3. Lay the main power cable along the wall behind the Bed Frame to minimize the risk of tripping. 18 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL...
- Page 19 Remote Control and slide the cover into position. The batteries are provided for you. NOTICE Replace the batteries in the Remote Control once a year. Do not use rechargeable batteries. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 19...
-
Page 20: Operation
▪ Ensure the Remote Control is paired to the correct Bed Frame ▪ Ensure the Remote Control has been safely unpaired before using it on another Bed Frame 20 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... - Page 21 3. Release the UP/DOWN Button 4. Press and hold the Button for the new Memory Position for at least 3 seconds to save the 5. Release the Memory Position Button. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 21...
- Page 22 1. Press the Sleeping Position Button for at least 10 seconds. 3. Perfom a Reference Drive with the Sleeping Position Button or any UP/DOWN Button (see section "Reference Drive"). 22 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL...
- Page 23 4. Reconnect the Bed Frames to the Power Outlet. ▪ If the Bed Frames do not move together, disconnect from the Power and repeat the steps. ▪ To end Sync Mode, disconnect the Sync Cable. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 23...
-
Page 24: Disassembly And Transportation
Lifting the Bed Frame requires two people. To lift the Bed Frame: osition. 2. Stand at opposite sides of the Bed Frame (long sides) and grip the Base Platform. 24 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... -
Page 25: Cleaning And Maintenance
The Adjustable Bed Frame does not require maintenance. If the Bed Frame becomes damaged, or if you are experiencing technical difficulties, contact ROTEC using the details on page 2. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 25... -
Page 26: Troubleshooting
1. Check the connected USB cable for insecure connections. Parts of the bed frame remain in an Same as above in current state of the Manual. elevated position after power failure 26 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... - Page 27 Normal operation. Continue to operate the Bed Frame. 1 X Click The system is working in emergency operation mode. Contact Customer support. 4-6 X Click An internal error has occured. Contact customer support. WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL // 27...
-
Page 28: Technical Data
Dispose of all materials and parts according to local guidelines and regulations. Ensure that the disposal is lastingly compatible for humans and nature. 28 // WAVE BED BY ROTEC ADJUSTABLE BED FRAME – OWNER’S MANUAL... -
Page 29: Warranty
Our product is warranted against defects in materials or workmanship for a period of one year from the date of purchase by the original purchaser. During the first year, Rotec or its distributor will repair or replace, at no cost to the original purchaser, any defective part. This includes all authorized labor costs incurred with the repair or replacement of any part found to be defective.
