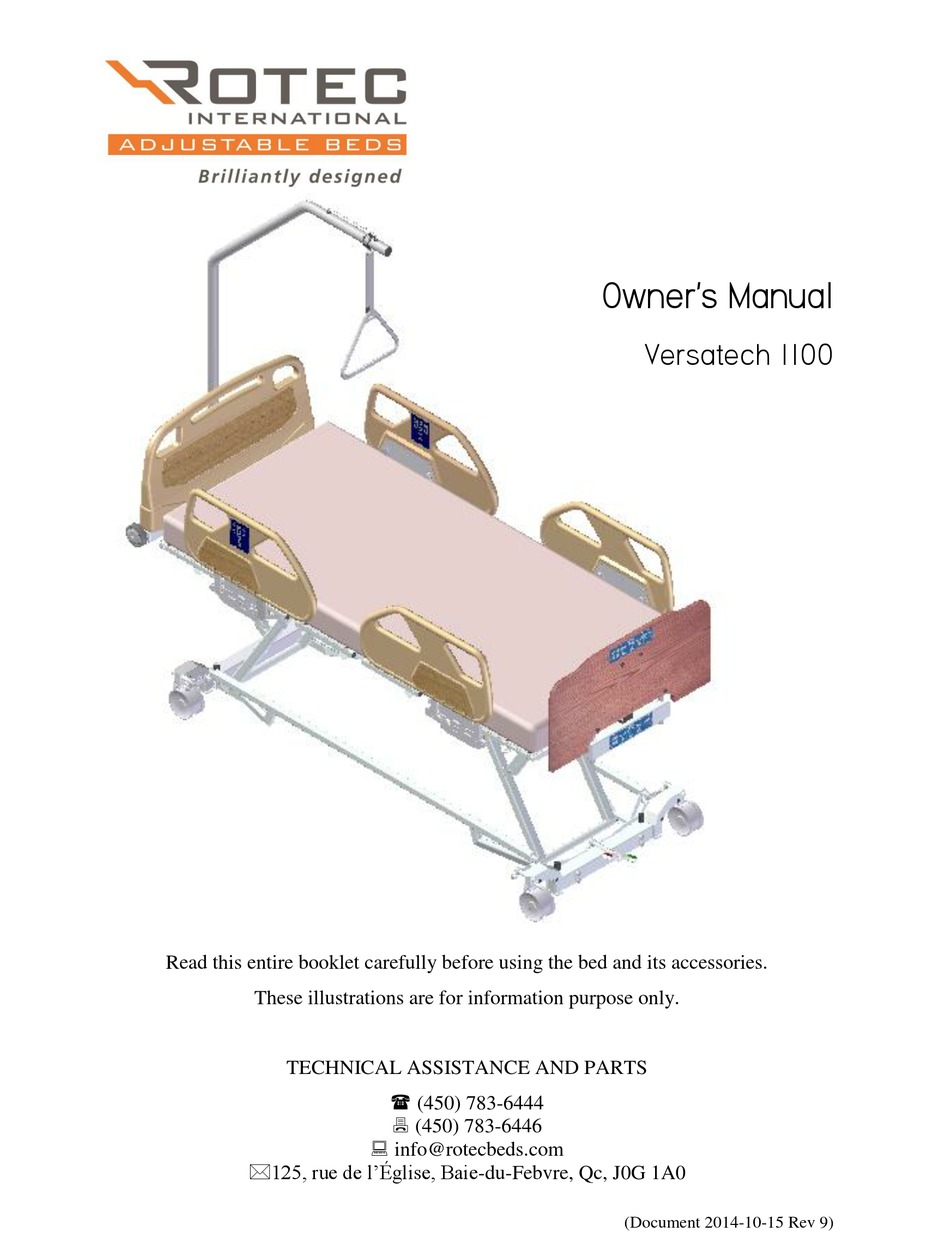

Owner's Manual
Versatech 1100
Read this entire booklet carefully before using the bed and its accessories.
These illustrations are for information purpose only.
TECHNICAL ASSISTANCE AND PARTS
(450) 783-6444
(450) 783-6446
info@rotecbeds.com
125, rue de l'Église, Baie-du-Febvre, Qc, J0G 1A0
(Document 2014-10-15 Rev 9)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rotec Versatech 1100
Summary of Contents for Rotec Versatech 1100
- Page 1 Owner’s Manual Versatech 1100 Read this entire booklet carefully before using the bed and its accessories. These illustrations are for information purpose only. TECHNICAL ASSISTANCE AND PARTS (450) 783-6444 (450) 783-6446 info@rotecbeds.com 125, rue de l’Église, Baie-du-Febvre, Qc, J0G 1A0...
- Page 2 This manual contains all necessary indications to use the Rotec International Versatech 1100 medical bed safely. It has to be accessible at all times for the medical and maintenance staff. In addition, this manual must stay with the bed when it is sold or transferred.
-
Page 3: Table Of Contents
Table of contents 1. TECHNICAL SPECIFICATIONS ................4 1.1 Safe working load ..................... 4 1.2 Bed weight ........................ 4 1.3 Accessories ....................... 4 1.4 Electrical specifications .................... 4 1.5 Conditions of use ...................... 5 1.6 Moving specifications ....................5 1.7 Measurement specifications ..................6 1.8 Limited warranty ....................... -
Page 4: Technical Specifications
Legend : Used when special attention to the indications is needed in order to avoid any injuries and/or equipment failure. 1. TECHNICAL SPECIFICATIONS 1.1 Safe working load The maximum safe working load (SWL) for this bed is 500 kg (1100 lbs). 1.2 Bed weight The bed weighs ~ 199 kg (~ 438 lbs). -
Page 5: Conditions Of Use
1.5 Conditions of use Please note that the use of this product or for it’s storage you must respect the following indications: 10 à 40 ˚C Temperature of operating : Température of storage : –40 à +70 ˚C Relative humidity of operating : 5% à... -
Page 6: Measurement Specifications
1.7 Measurement specifications Overall length (A): 2365 mm (93 1/8 in) NOTE: The overall length is expandable up to 2568mm (101 1/8 in) (with head and foot panel). The platform is expandable from 2032mm up to 2235mm (80 in to 88 in) Overall height (B): 2417 mm (95 1/4 in) (With trapeze bar and the bed at its highest position) - Page 7 Trendelenburg ~ 15 degrees * The dimensions specified in this manual do not take the manufacturing tolerances into consideration. Rotec international recommends the use of a mattress that fit the dimensions below: - Length: 80” to 88’’ (depends on adjustability of the platform).
-
Page 8: Limited Warranty
For further information, contact our technical services. This warranty does not cover damages caused by negligence or inappropriate use. Rotec International will not be held responsible for any other warranty offered by any person, firm or company, to the exclusion of the one stipulated above. -
Page 9: Return Policy
Rotec International must be informed of the situation within 24 hours of receipt of goods in order to notify the carrier as soon as possible. If Rotec International is not informed within 24 hours or the damages are not indicated on the bill of lading, the customer may have to pay all the costs incurred to replace or repair the damaged product. -
Page 10: Accessories Installation Instructions
2. ACCESSORIES INSTALLATION INSTRUCTIONS Trapeze bar (optional) Patient control Openings for integrated to the side Headboard restraining straps rails (optional) (composite model (10) shown) Openings for restraining straps (8) (or draining bags) Example of half side rails Footboard (wooden model shown) Nurse control Composite... -
Page 11: Wooden (Or Composite) Head And Foot Boards Installation
2.1 Wooden (or composite) head and foot boards installation Gently slide the two (2) bars, of the head and foot boards, into the anchorage, to the bottom; 2 bars 2 bars To remove the head or the foot boards, lift the head or foot boards. -
Page 12: Trapeze Bar Installation (Optional)
2.2 Trapeze bar installation (optional) Insert the trapeze bar into the slot and line up the positioning pin with its cavity. POSITIONING PIN CAVITY FINAL POSITION Make sure that the trapeze bar is locked b trying to rotate it. -
Page 13: User Instructions
3. USER INSTRUCTIONS 3.1 Precautions Do not use this bed and its accessories without reading carefully this manual and acknowledging all of the following precautions: This bed is not for pediatric use; This bed should not be used in presence of flammable anesthetic gas mixed with air, oxygen or nitrogen oxide;... - Page 14 Use a mattress that is properly sized to fit mattress support platform, which will remain centered on mattress support platform relative to State and Federal guidelines. Length and width should match mattress support platform. Use of an improperly fitted mattress could result in injury or death. ...
- Page 15 Make sure to block the frame of the bed if you need to work under the platform. This will prevent the bed structure from falling accidentally; The manufacturer reserves the right to modify the bed; Only use Rotec International replacement parts.
-
Page 16: Verification Before Starting To Use The Bed
Verify the functioning of the CPR function (electric) with a mattress and with someone leaning back against the backrest. Proceed carefully (refer to section 3.9.2). If the bed is damaged or does not work properly, contact Rotec International customer service. -
Page 17: Using The Functions Of The Bed
3.3 Using the functions of the bed 3.3.1 Remote control of the bed The remote control supplied with the nurse control allows you to use the following functions of the bed: Increase the angle Decrease the angle of of the head section the head section Increase the height Decrease the height... -
Page 18: Nurse Control
The remote control fits well in the hand and does not slip out of it, thanks to its flexible hook located in the back. Moreover, it can be hung onto objects having a maximum width of 35 mm (1 3/8 in). 35 mm (1 3/8 in) 3.3.2 Nurse control 3.3.2.1 Here are the controls offered with the standard nurse control:... - Page 19 3.3.2.2 Here are the additional controls present on the nurse control with CPR and underneath the bed light: Chair position Light underneath the bed Total lock 3.3.2.3 Here are the additional controls present on the nurse control with CPR and nurse call (optional): Chair position Nurse call...
-
Page 20: Functions Of The Patient Control Integrated Into The Side Rails (Optional)
3.3.3 Functions of the patient control integrated into the side rails (optional) Here are the controls present on the side rails: Increase the angle Increase the angle of of the back section the back and thighs section Decrease the angle Increase the angle of of the back section the thighs section... -
Page 21: Trendelenburg And Reverse Trendelenburg
3.4 Trendelenburg and reverse Trendelenburg The arrows on the panel of the nurse control correspond to the position of the head section compared to the foot section, thus: - To obtain the Trendelenburg position: Press : - To obtain the reverse Trendelenburg position : Press : Warning : Ensure that the Trapeze bar does not come in contact with the wall. -
Page 22: Adjusting The Angle Of The Foot Section
3.5 Adjusting the angle of the foot section The foot section of the platform can be adjusted to two different angles according to your needs. HANDLE The foot section has two adjusting position : Before changing to any position, you must ensure that the side rails are raised. Afterwards, change to the position needed with the handle. -
Page 23: Hooks For Draining Bags
3.6 Hooks for draining bags The two (2) hooks for the draining bags are located under and on each side of the lower back section of the platform. The eight (8) openings for the restraining straps located on each side of the lower back and the thighs sections of the platform can also be used for draining bags. -
Page 24: Using The Accessories
3.9 Using the accessories 3.9.1 Side rails Refer to the book inserted in this manual or in the box with the side rails. 3.9.2 Platform extensions 3.9.2.1 To extend the platform: Lift the handle under the desired section; Pull the extension; Handle Release the handle, the extension will automatically lock to the following mattress dimension: 35 in, 38 in, 42 in, 47 in and 53 in;... - Page 25 3.9.2.2 To extend the platform: *It is recommended to raise the foot section in order to easily extend the length of the platform Pull on the cable 1 located beneath the platform foot section, on the frame; With the other hand, pull on the foot frame extension; Release the cable and the extension will automatically lock to the following mattress length: 84 in &...
-
Page 26: Casters With Synchronized Brake System
3.9.3 Casters with synchronized brake system To facilitate access to the brake system, it is recommended to raise the height of the bed to at least 150mm (6 in) from the lowest position. To activate the brake system, position the pedal in one of the three following positions: DIRECTIONAL* NEUTRAL... -
Page 27: Cpr (Mechanical Or Electrical)
3.9.5 CPR (mechanical or electrical) Note: The side rails of the bed should be in raise position before triggering the CPR function. Trigger CPR as follows: (Mechanical) Pull the CPR handle under the thighs section platform as shown below to lower the back section only. (Electrical) Press on the button on the nurse control (refer to section 3.3.2) to get the platform to move automatically to a completely horizontal position. -
Page 28: Total Lock
Caution! CPR function should only be used in case of emergency to reposition the patient in an optimal position for practicing cardiopulmonary resuscitation(CPR) maneuvers. The use of this function for other purposes could result in serious injury to the patient or the user. 3.9.6 Total lock This function allows locking all the functions of the bed, except the CPR function. -
Page 29: Inspection
3.10 Inspection All defects must be repaired immediately by a qualified and authorized technician. The maintenance of the bed must be done once a year. Refer the maintenance manual for more details. 3.11 Special recommendation To install this model of bed, you must: - Raise the bed completely;...
