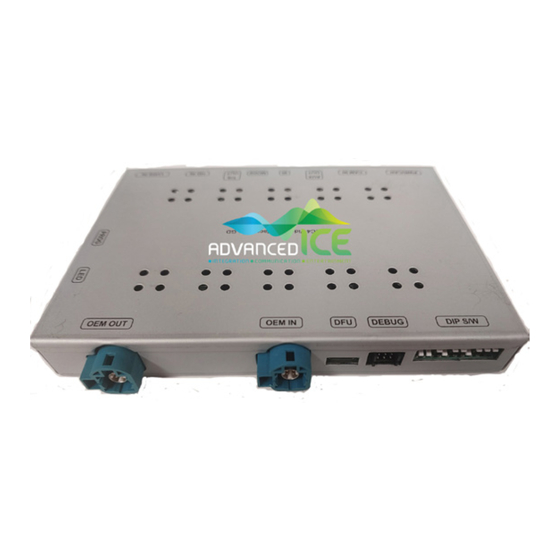

Ford Ranger/Everest Camera
Integration Installation Guide
1469
PLEASE READ BEFORE BEGINNING INSTALLATION
Installation Terms & Conditions
•
All labels on the product including software versions and serial numbers must not be covered, damaged or removed. This
may void the warranty on the product.
•
Ensure that all left over accessories, including remote controls and cables, are kept for future use. If
replacements are required in the future they will not be provided free of charge.
•
Please ensure the installation of this product will not interfere with any factory safety equipment (e.g. Airbags).
•
If working with Airbags, be sure to disconnect the vehicle Battery before beginning work. This product and the following
instructions are designed for installation by a qualified 12v installer, car audio installer or auto electrician.
•
Interfaces and Navigation modules must not be installed in a location where they will be exposed to extreme
temperatures including, but not limited to, installation on top of a vehicles radio, transmission tunnel or firewall.
Damaged caused by exposure to heat is not covered under warranty.
Overview
This is a completely plug and play system and has been designed for the following vehicles and features:
2022 - Current Ford Ranger and Everest with the Sync 4A 12 Inch Screen. This system allows for the addition of up to four (4)
cameras to the factory screen
Important Product Information
•
This product comes with a 2 year warranty against manufacturer related defects. Please read the included
warranty card and register the device on the Advanced ICE Pty Ltd website.
•
This installation manual covers a range of products and vehicles.
Contents
Page 1
1469_INS_V1.1
2
2
2
2
3
4
4
4
5
5
6
7
8
9
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1469 and is the answer not in the manual?

Questions and answers

Related Manuals for Advanced ICE 1469

Summary of Contents for Advanced ICE 1469

  • Page 1: Table Of Contents

    • This product comes with a 2 year warranty against manufacturer related defects. Please read the included warranty card and register the device on the Advanced ICE Pty Ltd website. • This installation manual covers a range of products and vehicles.

  • Page 2: Kit Contents

    Required Tools for Installation • Dash and Trim Removal tools • Dash Protection Tape (Recommended) • 7mm Socket Set • Picking Tool Kit Contents Interface LVDS Extension Mounting Bracket Remote Cable (6 x screws included) LVDS Cable Infrared Eye (For Remote) WA7058 - RCA Y Adapter Power &...

  • Page 3: Camera Installation Scenarios

    Camera Installation Scenarios SINGLE CAMERA INSTALLATION Connect to Camera RCA F - CAM R - CAM DUAL CAMERA INSTALLATION F - CAM Connect to Driving Forwards Caravan Camera R - CAM Connect to Reverse Caravan Camera Page 3...

  • Page 4: Wiring Information

    Wiring Information Description Used For This wire can be used to power up your ACC Power Wire cameras Connect Camera video signal for cameras Video Input (F CAM) F - CAM that can be viewed when driving Connect Camera video signal for cameras Video Input (R CAM) that can be viewed when in reverse using R - CAM...

  • Page 5: Step 2 -Multimedia Interface Installation

    Step 2 -Multimedia Interface Installation • Scan or click on the QR Code to watch the video on how to prepare the product for installation and how to connect it to the vehicle. Please watch the entire video before beginning the installation. If you are not comfortable with the technical nature of this installation, we recommend taking it to a 12 volt professional to perform the installation for you.

  • Page 6: Mode Change And Operation

    Mode Change and Operation When Driving Long Press the OK button which is the systems Default Activation button to turn on the Camera Source. If additional camera inputs have been activated, then additional long press of this button will cycle through the camera inputs. In Reverse Long Press the OK button to switch from the vehicles factory reverse camera to the Camera input of our interface.

  • Page 7: Interface Menu Settings

    Climate Adjustments When the Camera source is activated and one of the highlighted climate control functions are adjusted, the system will automatically switch back to display the adjustment. After 5 seconds from the last adjustment made, the system will automatically switch back to the camera source.

  • Page 8: Park Menu

    PARK Menu IMAGE PAS TYPE NOT USED PAS SETUP PARK REAR TYPE FUNC AUTO FCAM UTIL SIDE TYPE WIRE DET SIDE FUNC CAM OFF INFO In the Park Menu the following changes can be made 1. Side Type Change this from WIRE DET to CAN -DET to enable the Left and/or Right Camera inputs to be activated with the cars Indicator.

  • Page 9: Trouble Shooting & Faqs

    Handle Button (Activation Button) IMAGE RESET ALL HANDLE BTN PARK ACC OUT HBEAM FUNC UTIL INFO Under the UTIL menu you can change the button on the steering wheel that is used to activate the camera source. The options include the following: 1.
