Keys And Functions - Modecom freetab 2096+ x2 User Manual

MODECOM FREETAB

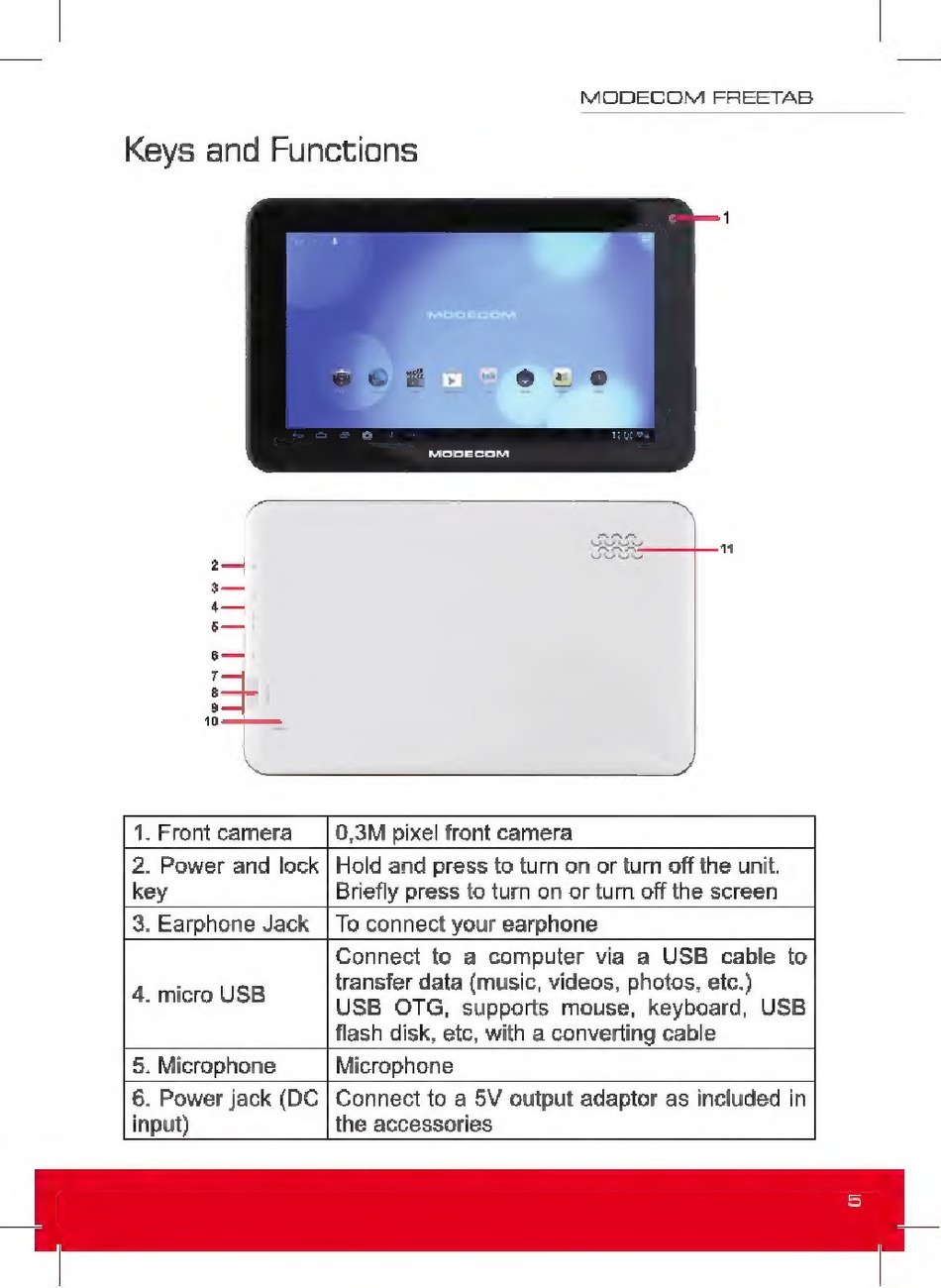

Keys and Functions
1. Front camera
0,3M pixel front camera
2. Power and lock
key
Hold and press to turn on or turn off the unit.
Briefly press to turn on or turn off the screen
3. Earphone Jack To connect your earphone
4. micro USB
Connect to a computer via a USB cable to
transfer data (music, videos, photos, etc.)
USB OTG, supports mouse, keyboard, USB
flash disk, etc, with a converting cable
5. Microphone Microphone
6. Power jack (DC
input)
Connect to a 5V output adaptor as included in
the accessories
