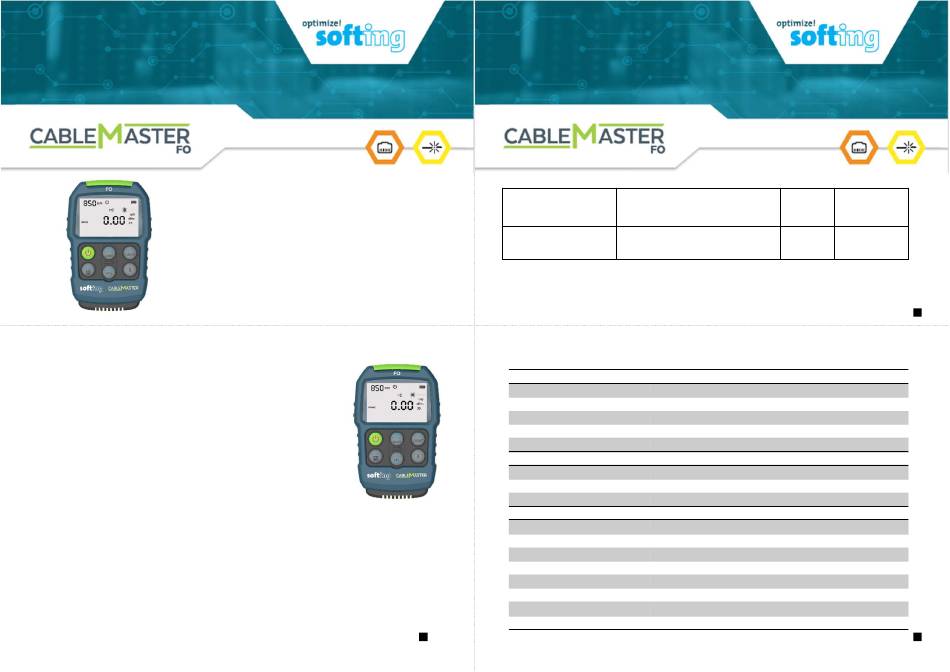

Softing CableMaster-FO Manual

lntroduction

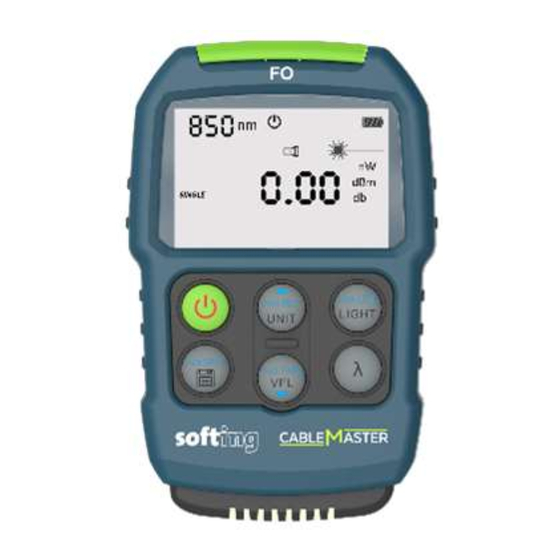

The CableMaster-FO is a multifunctional Optical Power Meter of Softing
integrates the functions of optical power meter, VFL, RJ45 network cable test,
flashlight and other functions. The design is small and lightweight, sturdy and
durable, and is suitable for applications such as FTTX broadband installation
and maintenance test and optical fiber network cable comprehensive test.
Features
• Solid, Robust and Durable
• Multifunction in one (optical power meter, VFL, RJ45 network cable test, flashlight)
• Universal Optical Interface (SC/FC/ST)
• Multi-Unit Display (dBm/dB/mW)
Support relative value measurement function
•
Support user calibration function
•
Support USB interface charging (optional)
•
• Support over 80 hours of continuous use time (only OPM mode)
Smart power saving
•
Manual
Multifunctional OPM
with VFL, Flashlight
and RJ-45 Wiremap
1
Test Range Supported Wavelengths
-70dBm~+10dBm@1550nm 850/1300/1310/1490/1550/1625/1650nm
WARNING: When using dry battery for power supply, it is forbidden to connect external power adapter to
prevent danger
Specifications
OPM
Detector Type lnGaAs
Working Wavelength 800nm-1700nm
Display Resolution 0.01 dBm
Frequency ldentification 270Hz/330Hz/1 kHz/2kHz
Optical Port 2.5mm universal FC/SC/ST
VFL
Working Wavelength 650nm±30nm
Output Mode CW/1Hz/2Hz
Optical Port 2.5mm universal FC/SC/ST
Others
Battery Ni-MH rechargeable battery
Continuous working time 80 hours(only OPM mode)
Auto Power-Off 10 minutes
Working Temp -10°C - +50°C
Storage Temp -25°C - +70°C
Storage Humitidy 0 - 95% (No condensation)
Dimension 105L x 65W x 25H (mm)
Weight 140g
VFL
Output
Accuracy
Power
0 dBm
±0.35dB
1 mW
