Summary of Contents for Softing FiberXpert OTDR 5000

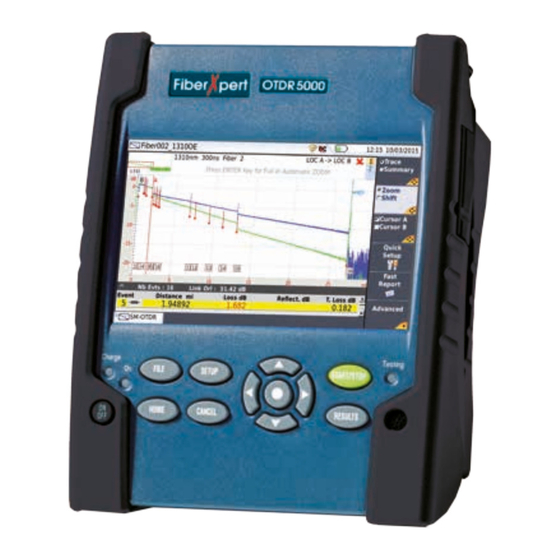

- Page 1 ✗ Fiber pert OTDR 5000 Quick Start Guide...
- Page 2 USB ports (2) 14 15 16 To access the User Manuals concerning the FiberXpert OTDR 5000, go to the Home page and select HELP icon. Click on one link in the WebBrowser page to open the correponding manual in PDF. You can also transfer pdf files onto USB key or onto PC (see «Transferring files...
- Page 3 LASER SAFETY INFORMATION The provisions contained in two standards define the safety procedures to be observed both by users and by manufacturers when utilizing laser products: EN 60825-1: 2001 - Safety of laser products – Part 1: Classification of products, requirements and user guidelines.
- Page 4 PERFORMING A TEST IN EXPERTOTDR MODE START/ STOP TART TART ▼ Once OTDR test is configured, press Step1: connector check TART START/STOP to launch the acquisition Step2: acquisition in progress ▼ At the end of test, the results trace displays. Trace: select the active trace (multi- traces analysis) Event: move the active cursor onto events...
- Page 5 Platform) ly in- ▼ atform) Press ▼ Select usbflash storage FILES ARE media (& directory for TRANSFERRED files storage) ON USB KEY. ▲ Press Press «Exit» > «Remove USB» to correctly remove USB key from FiberXpert OTDR 5000...
- Page 6 TRANSFERRING FILES - THROUGH USB CABLE Connect the FiberXpert to a PC using the USB cable and confirm that you wish to activate the USB link in the pop-up window on the FiberXpert. On your PC, click on the message «Found New Hardware - USB Mass Storage Device». Platform Mini USB port...
- Page 7 USING A VIDEO MICROSCOPE SCOPE Connect the microscope to the FiberXpert On the Home page, select the Scope USB port. icon. ▼ Use Focus control button on Scope to adjust focus. Adjust Brightness and Contrast if necessary (or use Auto Contrast) A summary of test results is displayed.
- Page 8 Softing SARL Créteil, Île-de-France Phone: +33 1 45 17 28 05 E-mail: info.france@softing.com Italy Softing Italia Srl. Cesano Boscone, Milano Phone: +39 02 4505171 E-mail: info@softingitalia.it For technical information and support please contact the Softing office in your country. http://itnetworks.softing.com...
