FEATURES
Conical piston and seat provide a consistently smooth flow
l
that reduces wear and compensates for pressure spikes for
extended valve life.
Lightweight flow-through design for easy installation.
l
Unique high velocity design assures consistent pressure for
l
multiple pump or shut-off gun installations.
Maintains full pressure while running in idle for quick return
l
to system pressure.
Piston retainer and lower body are 316SS for added
l
compatibility on the .100 models.
Standard FPM elastomers for compatibility with many
l
liquids and temperatures up to 240°F.
Adjusting nut allows easy calibrated pressure adjustment.
l
Multiple regulators can be installed in parallel to handle
l
larger volumes.
All High Pressure Systems require a primary pressure regulating device (i.e. regulator,
unloader) and a secondary pressure relief device (i.e. pop-off valve, relief valve). Failure
to install such relief devices could result in personal injury or damage to pump or
property. CAT PUMPS does not assume any liability or responsibility for the operation
of a customer's high pressure system.
Read all CAUTIONS and WARNINGS before commencing service or operation of any
high pressure system. The CAUTIONS and WARNINGS are included in each service
manual and with each Accessory Data sheet. CAUTIONS and WARNINGS can also be
viewed online at www.catpumps.com/cautions-warnings or can be requested directly
from CAT PUMPS.

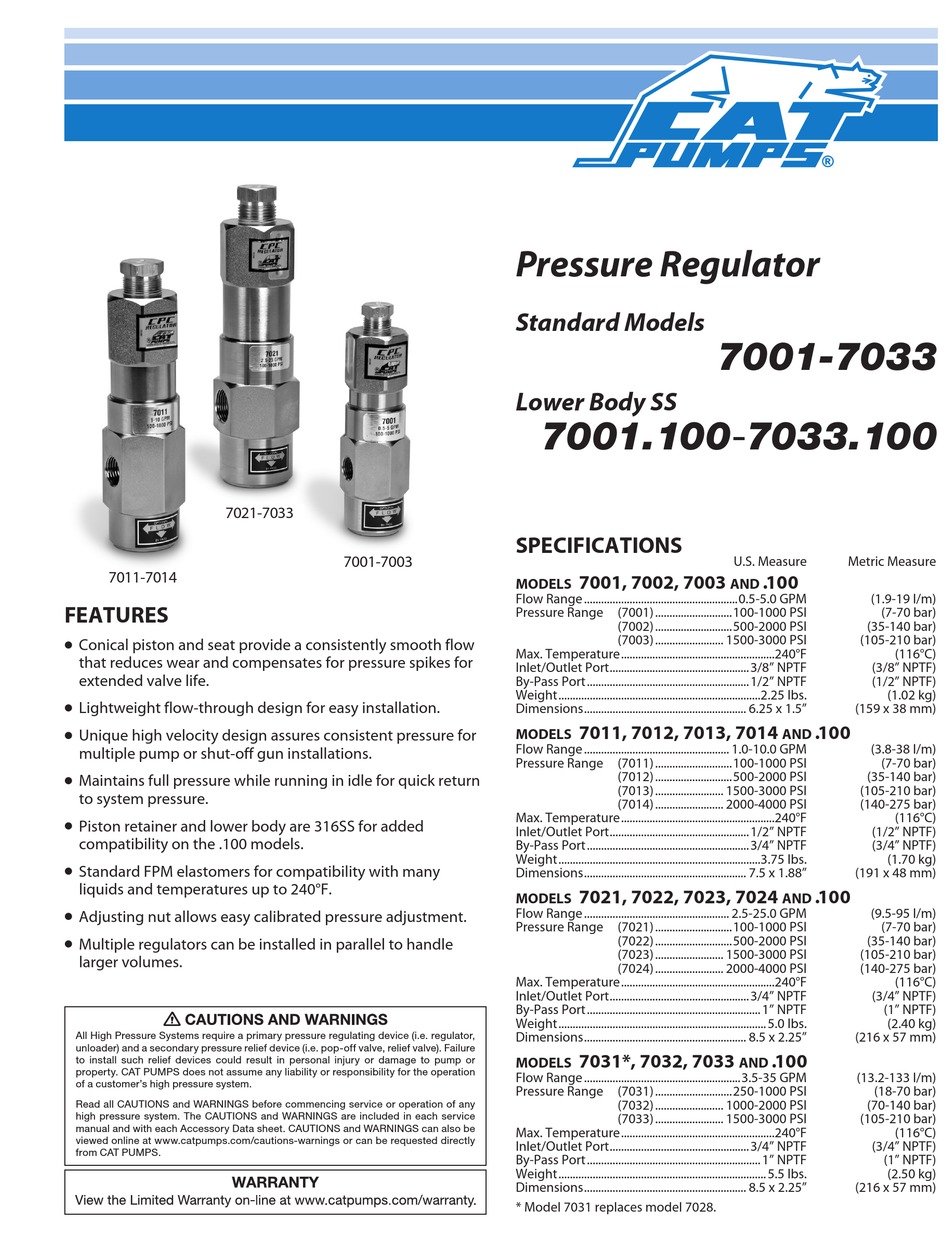

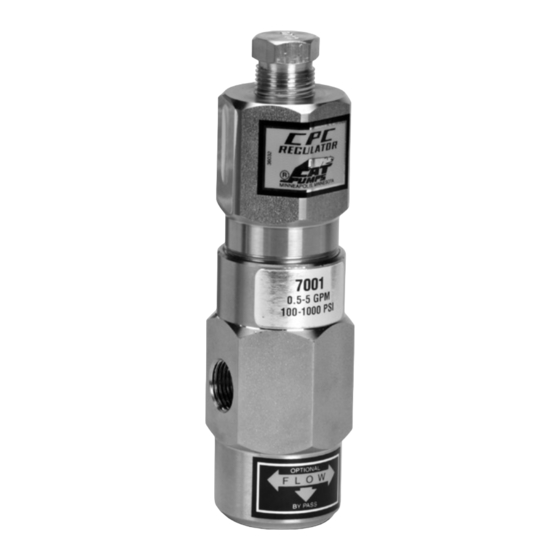

Pressure Regulator
Standard Models
Lower Body SS
SPECIFICATIONS
7001-7003
MODELS
Flow Range ......................................................0.5-5.0 GPM
Pressure Range (7001) ...........................100-1000 PSI
Max. Temperature ......................................................240°F
Inlet/Outlet Port .................................................3/8" NPTF
By-Pass Port .........................................................1/2" NPTF
Weight .......................................................................2.25 lbs.
Dimensions ......................................................... 6.25 x 1.5"
MODELS
Flow Range ................................................... 1.0-10.0 GPM
Pressure Range (7011) ...........................100-1000 PSI
Max. Temperature ......................................................240°F
Inlet/Outlet Port .................................................1/2" NPTF
By-Pass Port .........................................................3/4" NPTF
Weight .......................................................................3.75 lbs.
Dimensions ......................................................... 7.5 x 1.88"
MODELS
Flow Range ................................................... 2.5-25.0 GPM
Pressure Range (7021) ...........................100-1000 PSI
Max. Temperature ......................................................240°F
Inlet/Outlet Port .................................................3/4" NPTF
By-Pass Port ............................................................. 1" NPTF
Weight ......................................................................... 5.0 lbs.
Dimensions ......................................................... 8.5 x 2.25"
MODELS
Flow Range .......................................................3.5-35 GPM
Pressure Range (7031) ...........................250-1000 PSI
Max. Temperature ......................................................240°F
Inlet/Outlet Port .................................................3/4" NPTF
By-Pass Port ............................................................. 1" NPTF
Weight ......................................................................... 5.5 lbs.
Dimensions ......................................................... 8.5 x 2.25"
* Model 7031 replaces model 7028.
7001-7033
7001.100-7033.100
7001, 7002, 7003
(7002) ...........................500-2000 PSI
(7003) ........................ 1500-3000 PSI
7011, 7012, 7013, 7014
(7012) ...........................500-2000 PSI
(7013) ........................ 1500-3000 PSI
(7014) ........................ 2000-4000 PSI
7021, 7022, 7023, 7024
(7022) ...........................500-2000 PSI
(7023) ........................ 1500-3000 PSI
(7024) ........................ 2000-4000 PSI
7031*, 7032, 7033
(7032) ........................ 1000-2000 PSI
(7033) ........................ 1500-3000 PSI
U.S. Measure
Metric Measure
.100
AND
(1.9-19 l/m)
(7-70 bar)
(35-140 bar)
(105-210 bar)
(116°C)
(3/8" NPTF)
(1/2" NPTF)
(1.02 kg)
(159 x 38 mm)
.100
AND
(3.8-38 l/m)
(7-70 bar)
(35-140 bar)
(105-210 bar)
(140-275 bar)
(116°C)
(1/2" NPTF)
(3/4" NPTF)
(1.70 kg)
(191 x 48 mm)
.100
AND
(9.5-95 l/m)
(7-70 bar)
(35-140 bar)
(105-210 bar)
(140-275 bar)
(116°C)
(3/4" NPTF)
(1" NPTF)
(2.40 kg)
(216 x 57 mm)
.100
AND
(13.2-133 l/m)
(18-70 bar)
(70-140 bar)
(105-210 bar)
(116°C)
(3/4" NPTF)
(1" NPTF)
(2.50 kg)
(216 x 57 mm)
