DATA SHEET

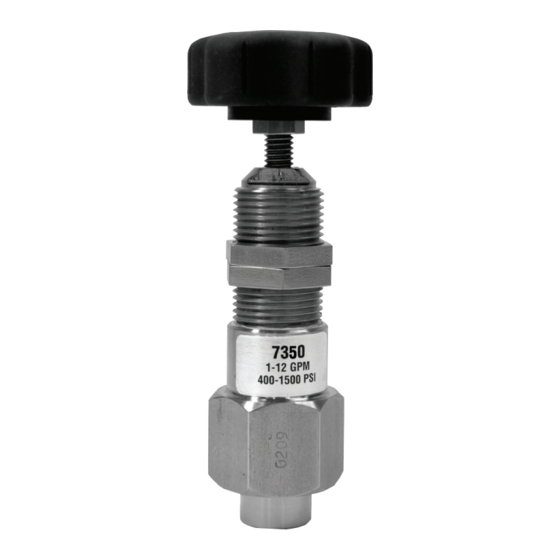

PRESSURE REGULATOR
Stainless Steel
Model:
FEATURES
• Maintains full pressure while running in idle for quick return
to system pressure.
• Stainless steel conical piston and seat extend valve life by providing
a consistently smooth flow that reduces wear and compensates
for pressure spikes.
• Minimum pressure fluctuations with the alternating use of multiple
guns and nozzles.
• Top adjusting cup and locking nut secure calibrated pressure setting.
• Stainless steel internal parts results in durability and compatibility.
• Standard FPM elastomers promote compatibility with many liquids.
7350
SPECIFICATIONS
Flow Range
Pressure Range
Maximum Temperature
Inlet Port
Bypass Port
Weight
Dimensions
U.S.
Metric
1–12 gpm
3.78–45.4 lpm
400–1500 psi
27.5–103 bar
180˚ F
82˚ C
1/4" NPT(F)
1/4" NPT(F)
3/ 8 " NPT(F)
3/ 8 " NPT(F)
1.42 lbs
0.64 kg
2.26 x 6"
56 x 152 mm
Advertisement
Table of Contents
Related Manuals for CAT Pumps 7350
Summary of Contents for CAT Pumps 7350
- Page 1 DATA SHEET PRESSURE REGULATOR 7350 Stainless Steel Model: SPECIFICATIONS U.S. Metric Flow Range 1–12 gpm 3.78–45.4 lpm Pressure Range 400–1500 psi 27.5–103 bar Maximum Temperature 180˚ F 82˚ C Inlet Port 1/4" NPT(F) 1/4" NPT(F) Bypass Port 3/ 8 " NPT(F) 3/ 8 "...
- Page 2 Read all CAUTIONS and WARNINGS before commencing service or operation of any high-pressure system SELECTION PRESSURE ADJUSTMENT Note: Pressure is not set at the factory. This pressure regulator is designed for systems with single or multiple pumps, solenoid (gate) valves, nozzles, shut-off or weep guns. 1.
- Page 3 Read all CAUTIONS and WARNINGS before commencing service or operation of any high-pressure system SERVICING Disassembly Reassembly 1. Place lower regulator body with bypass port facing downwards 1. Disconnect bypass and inlet plumbing from the regulator. in a vise. 2. Remove regulator from the pump. 2.
- Page 4 All high-pressure systems require a primary pressure regulating device (e.g. regulator, unloader) and a secondary pressure relief device (e.g. pop-off valve, relief valve). Failure to install such relief devices could result in personal injury or damage to pump or property. Cat Pumps does not assume any liability or responsibility for the operation of a customer’s high-pressure system.
