Display Cover Removal Instructions

SVS 4000 Series and 16-Ultra Subwoofers

Please read these instructions carefully. Please contact SVS if you encounter problems

or need assistance. E-mail custservice@svsound.com or call 877-626-5623 M-F 9AM-

9PM, Sat 12PM-6PM, Sunday 12-4 – Eastern time zone.

Parts and Tools needed:

 One flathead screwdriver.

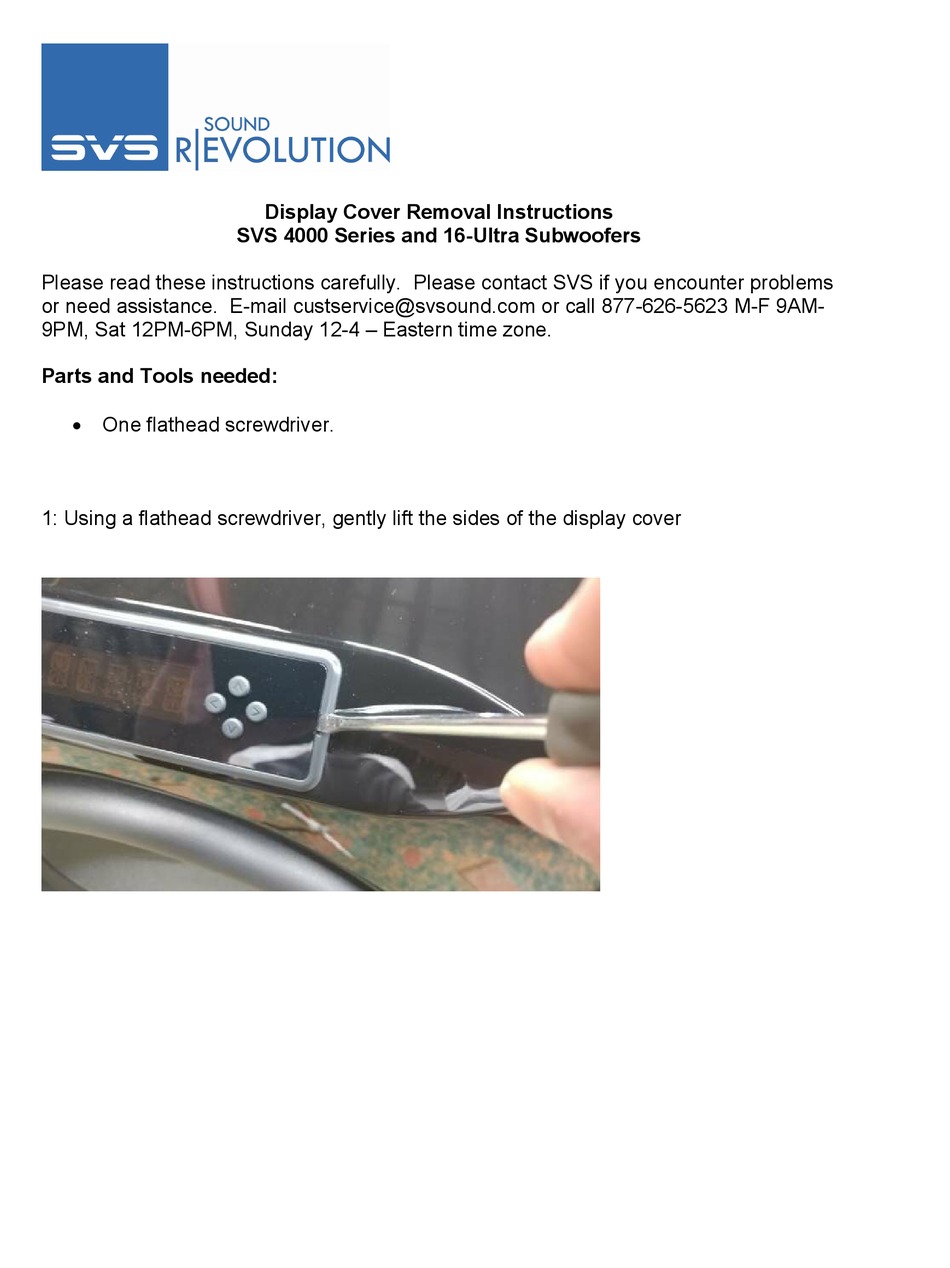

1: Using a flathead screwdriver, gently lift the sides of the display cover

Need help?

Do you have a question about the SVS 4000 Series and is the answer not in the manual?

Page 1 Display Cover Removal Instructions SVS 4000 Series and 16-Ultra Subwoofers Please read these instructions carefully. Please contact SVS if you encounter problems or need assistance. E-mail custservice@svsound.com or call 877-626-5623 M-F 9AM- 9PM, Sat 12PM-6PM, Sunday 12-4 – Eastern time zone.
Page 2 2: When you lift the second side, make sure the display cover is clear of the main assembly 3: With your fingers, gently work the display cover loose from the main assembly...
Page 3 4: Examine the new display cover to ensure the tape is fully seated on the center tabs 5: If there is two-sided tape on either your display or display cover, remove the backing...
Page 4 6: Press in a side tab 7: Press in the other side of the display cover. If your display cover has plastic over it, you will need to peel it back to ensure the side is fully seated PLEASE NOTE: If you need to replace the ribbon cable, please refer to separate Ribbon Cable Replacement Instructions.
Page 5 8: Press the middle tabs until the display cover is fully seated. If your display has two- sided tape on either side of it, press firmly along the edges of the display to ensure the tape adheres properly.
