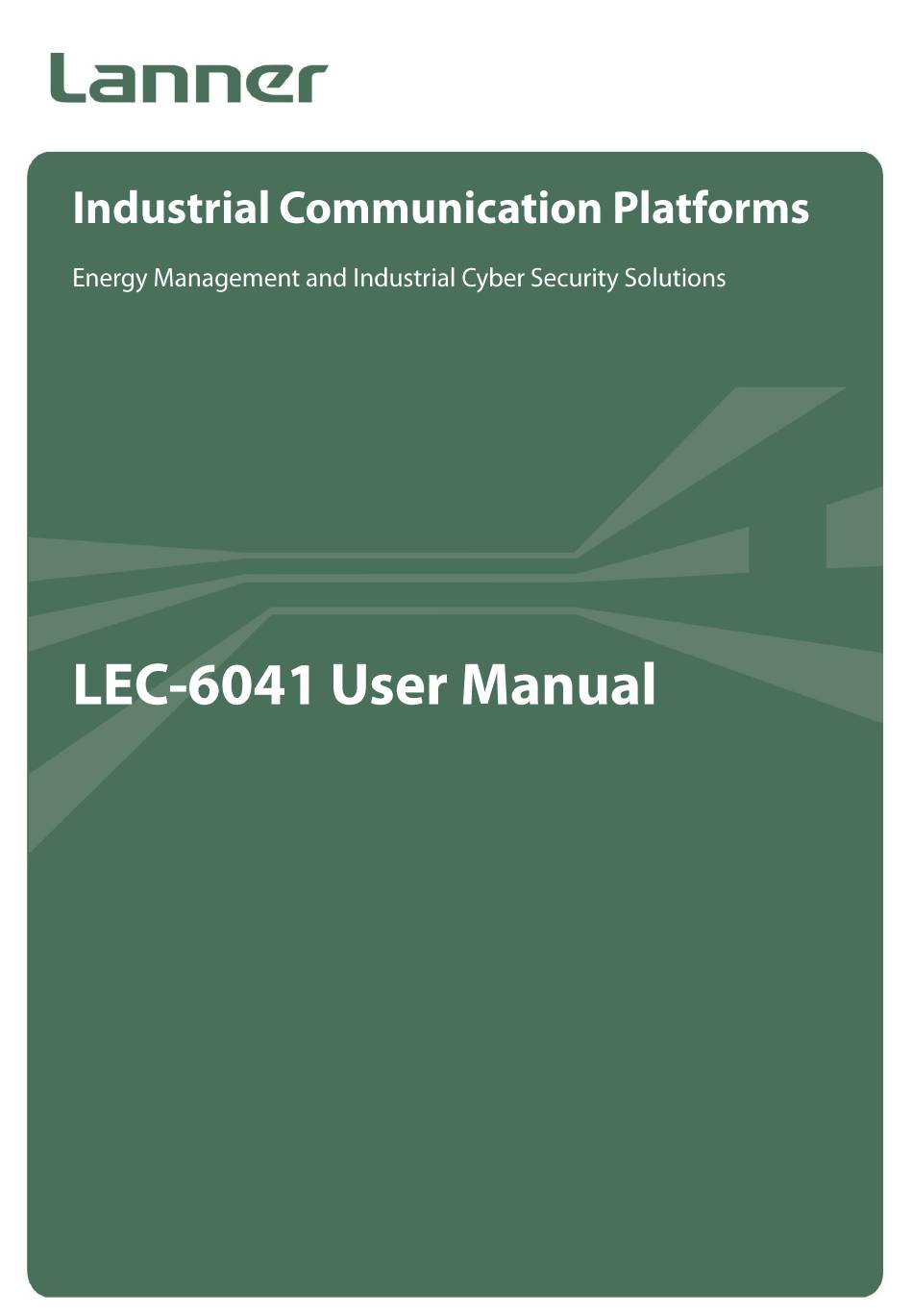

  • Page 1 LEC-6041 User Manual Version: 1.8 Date of Release:2023-09-05...
  • Page 2 To provide any feedback, comments or to report an error, please email contact@lannerinc.com. Thank you for your time. This document is copyrighted © 2023 by Lanner Electronics Inc. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice.
  • Page 3 LEC-6041 User Manual Taiwan Corporate Headquarters China Lanner Electronics Inc. Beijing L&S Lancom Platform Tech. Co., Ltd. 7F, No.173, Sec.2, Datong Rd. Guodong LOFT 9 Layer No. 9 Huinan Road, Xizhi District, New Taipei City 22184, Huilongguan Town, Changping District, Beijing...
  • Page 4 LEC-6041 User Manual Intel® and Intel® Atom® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.
  • Page 5 LEC-6041 User Manual Follow these guidelines to ensure general safety: Keep the chassis area clear and dust-free during and after installation. Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.
  • Page 6 The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create the risk of the system’s falling to the ground or other damages. Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the system or use of inappropriate installation components.
  • Page 7 LEC-6041 User Manual Connect the grounding cable to the ground. The protection device for the DC power source must provide 40A current. This protection device must be connected to the power source before DC power. Branchez le câble de mise à la terre à la terre.
  • Page 8 LEC-6041 User Manual Package Content ........................... 9 Ordering Information ........................9 System Specifications ......................... 10 Front Panel ..........................11 Rear Panel ........................... 12 Motherboard Information ......................13 Connecting Power ........................20 Installing Key Components ......................21 Installing the Hard Disk ....................... 23 Mounting the System on DIN Rail ....................
  • Page 9 As a rugged firewall deployed in challenging environments, LEC-6041 comes with IEC 61850-3, IEEE 1613, and C1D2 certification, as well as 1.5 KV magnetic isolation protections for LAN port and 15KV ESD Protection for I/O ports. The system can operate in a wide range of operating temperature from -40°...
  • Page 10 LEC-6041 User Manual Intel Atom® x7-E3950 or x5-E3930 Frequency Atom x5-E3930: 1.3 GHz, Atom x7-E3950: 1.6 GHz Processor System Core Number Atom x5-E3930: 2, Atom x7-E3950: 4 BIOS AMI SPI Flash BIOS Chipset Fanless Technology DDR3L, up to 1866 MHz System Memory Max.
  • Page 11 LEC-6041 User Manual Description HDMI Port 1x HDMI port SFP Port 2x 1G SFP port RJ45 Port 5x RJ45 port (LAN1 & LAN2 with LAN Bypass support) USB Port 2x USB 3.0 port HDD: Hard Disk Activity STA: System Status...
  • Page 12 LEC-6041 User Manual Description DIN Rail Bracket Reset Button Standard, HW Reset...
  • Page 13 LEC-6041 User Manual The block diagram indicates how data flows among components on the motherboard. Please refer to the following figure for your motherboard’s layout design.
  • Page 14 LEC-6041 User Manual The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as a reference of the pin assignments and the internal connectors. PWR3 JCMOS2 LPC1 SIM1 SATAPWR1 MPCIE1 JCMOS1 COM2 JSPI1 SATA1...
  • Page 15 LEC-6041 User Manual PWR3: Power Button Jumper Description Power ON/OFF system NC (Default) Normal RST3: HW/SW Reset Selection Jumper Description Software reset 2-3 (Default) Hardware reset JCMOS1/2: Clear CMOS Jumper Description 1-2 (Default) Normal Clear CMOS COM1: Serial Port 1 Connector Pin No.
  • Page 16 LEC-6041 User Manual JSPI1: SPI ROM Connector (For RD debug) Pin No. Description Pin No. Description HOLD# +1.8V MISO MOSI LPC1: LPC Connector (For RD debug) Pin No. Description Pin No. Description CLK_24M_P80 L_AD1 PLTRST_P80_N L_AD0 L_FRAME_N P3V3S L_AD3 L_AD2 SATAPWR1: SATA Power Connector Pin No.
  • Page 17 LEC-6041 User Manual MSATA1: MSATA Connector Pin No. Description Pin No. Description V3P3_S Mechanical Key SATA_RXP0_C V3P3_S SATA_RXN0_C SATA_TXN0_C SATA_TXP0_C V3P3_S V3P3_S V3P3_S...
  • Page 18 LEC-6041 User Manual MPCIE1: MPCIE Connector Pin No. Description Pin No. Description WAKE# V3P3_S V1P5_S CLKREQ# UIM_PWR UIM_DATA CLK_MPCIE_DN UIM_CLK CLK_MPCIE_DP UIM_RESET Mechanical Key W_DISABLE# PERST# MPCIE_RXN V3P3_S MPCIE_RXP V1P5_S MPCIE_TXN MPCIE_TXP USB2_DN4 USB2_DP4 V3P3_S V3P3_S LED_WWAN# LED_WLAN# V1P5_S V3P3_S...
  • Page 19 LEC-6041 User Manual SIM1: SIM Card Socket Pin No. Description Pin No. Description UIM_PWR UIM_RST# UIM_CLK UIM_DATA Input Power connector: Dual power input Pin No. Description DC2+ DC2- ALARM1 ALARM2 DC1+ DC1- Note The failure of either power (DC1 or DC2) will cause both Alarm1 and Alarm2 to short-circuit.
  • Page 20 LEC-6041 User Manual Connect the device to a 20~54 VDC power source. The power source comes from the AC/DC Adapter through a Phoenix contact. This power socket is specially designed to guard against a fault in power contact, i.e., the reverse of the electrical polarity will not damage the system.
  • Page 21 LEC-6041 User Manual 1. To install the key components including the SIM card, the mPCIe module, mSATA module and DDR2, loosen the screws indicated below so that the chassis cover can be removed. 2. With some pressure, slide the cover away from the system as shown in the picture.
  • Page 22 Please note, it is recommended to purchase the mSATA module and the mPCIe module from Lanner, for the thermal pads that come with the package were specifically chosen to fit into the gap between the selected modules and the heat sink.
  • Page 23 LEC-6041 User Manual 1. Remove the empty Disk Tray which can accommodate a 2.5” disk from the chassis cover by loosening the three screws on it. 2. Install the disk onto the tray using four provided disk screws, and then fix the tray onto the chassis cover.
  • Page 24 LEC-6041 User Manual 3. Insert the other end of the SATA data cable to SATA1 port on the motherboard, and the end of the SATA power cable to SATAPWR1 port. Arrange the cables and route them neatly to avoid them from getting tangled.
  • Page 25 LEC-6041 User Manual The system can be mounted to a wall with a DIN Rail Bracket. 1. Attach the Bracket to the rear of the system with three screws. 2. Hang the system onto a rail by engaging the hook of the Bracket into the DIN Rail until it is totally fixed.
  • Page 26 LEC-6041 User Manual With the short ear brackets provided in the Ear Bracket Accessory Pack, the system can be mounted on the wall surface directly. 2x Ear Bracket M3 L6mm (3mmx6mm) 4x Ear Bracket Screw 1. To start, remove the screws (indicated in the picture) on both sides of the system, and fix the two ear brackets onto the system using the provided black screws.
  • Page 27 LEC-6041 User Manual 5. Align the four mounting holes on the system’s brackets with the four anchoring bolts you just installed on the wall. 6. Drive the long screws into the four anchoring bolts to secure the system.
  • Page 28 LEC-6041 User Manual BIOS is a firmware embedded on an exclusive chip on the system’ s motherboard. Lanner's BIOS firmware offering including market-proven technologies such as Secure Boot and Intel Boot Guard technology deliver solid commitments for the shield protection against malware, uncertified sequences and other named cyber threats.
  • Page 29 LEC-6041 User Manual Setup main page contains BIOS information and project version information. Feature Description BIOS Vendor : American Megatrends Core Version : AMI Kernel version, CRB code base, X64 Compliancy : UEFI version, PI version BIOS Information Project Version : BIOS release version...
  • Page 30 LEC-6041 User Manual Select the Advanced menu item from the BIOS setup screen to enter the “Advanced” setup screen. Users can select any of the items in the left frame of the screen.

  • Page 31: Trusted Computing

    LEC-6041 User Manual Trusted Computing Feature Options Description Enables or disables BIOS support for security device. Security Device Enabled By disabling this function, OS will not show Security Support Disabled Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 32 LEC-6041 User Manual Trusted Computing (TPM1.2) Feature Options Description Enables or disables BIOS support for security device. Security Device Enabled By disabling this function, OS will not show Security Support Disabled Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 33 LEC-6041 User Manual Trusted Computing (TPM2.0)
  • Page 34 LEC-6041 User Manual Feature Options Description Enables or disables BIOS support for security device. By Security Device Enabled disabling this function, OS will not show Security Support Disabled Device. TCG EFI protocol and INT1A interface will not be available. Enabled SHA-1 PCR Bank Enables or disables SHA-1 PCR Bank.

  • Page 35: Super Io Configuration

    LEC-6041 User Manual Super IO Configuration...
  • Page 36 LEC-6041 User Manual Serial port 1 Configuration Feature Options Description Enabled Serial Port Enables or disables Serial Port 1. Disabled Device Settings IO=3F8h; IRQ = 4 COM1 MODE RS232 Select Com Mode as RS232 Serial Port 1 (CPOM0)
  • Page 37 LEC-6041 User Manual Serial port 2 Configuration Feature Options Description Enabled Serial Port Enables or disables Serial Port 2 Disabled Device Settings IO=2F8h; IRQ = 3 COM2 MODE RS232 Select Com Mode as RS232 Serial Port2 (CPOM1)

  • Page 38: Hardware Monitor

    LEC-6041 User Manual Hardware Monitor Feature Description CPU Temp This value reports the CPU temperature. SYS Temp This value reports the System temperature. CPU VCORE This value reports the CPU VCORE. VSB5V This value reports the VSB5V Input voltage. VBAT This value reports the VBAT Input voltage.

  • Page 39: Watchdog Timer Configuration

    LEC-6041 User Manual Watch Dog Timer Configuration Feature Options Description Watch Dog Enabled Enables or disables Watch Dog Timer function Timer Disabled...

  • Page 40: Serial Port Console Redirection

    LEC-6041 User Manual Serial Port Console Redirection Feature Options Description COM0 Enabled Console Enables or disables Console Redirection Disabled Redirection...
  • Page 41 LEC-6041 User Manual Console Redirection Settings Feature Options Description VT100: ASCII char set VT100 VT100+:Extends VT100 to support color, function keys, etc. VT100+ Terminal Type VT-UTF8:Uses UTF8 encoding to map Unicode chars onto 1 or VT-UTF8 more bytes ANSI ANSI: Extended ASCII char set...
  • Page 42 LEC-6041 User Manual RTS/CTS VT-UTF8 Combo Key Disabled Enables VT-UTF8 Combination Key Support for ANSI/VT100 Support Enabled terminals Disabled With this mode enabled, only text will be sent. This is to capture Recorder Mode Enabled Terminal data. Disabled Resolution 100x31...
  • Page 43 LEC-6041 User Manual Legacy Console Redirection Settings Feature Options Description Legacy Serial Select a COM port to display redirection of Legacy OS COM0 Redirection Port and Legacy OPROM Messages Legacy Serial Redirection Port...

  • Page 44: Cpu Configuration

    LEC-6041 User Manual CPU Configuration Feature Options Description Intel Virtualization Disabled When enabled, a VMM can utilize the additional hardware Technology Enabled capabilities provided by Vanderpool Technology Disabled VT-d Enable/Disable CPU VT-d Enabled When a processor thermal sensor trips (either core), the...
  • Page 45 LEC-6041 User Manual Socket 0 CPU Information...
  • Page 46 LEC-6041 User Manual CPU Power Management Feature Options Description Disabled EIST Enable/Disable Intel SpeedStep Enabled...

  • Page 47: Pci Subsystem Settings

    LEC-6041 User Manual PCI Subsystem Settings Feature Options Description Globally Enables or Disables 64bit capable Devices to be Disabled Above 4G Decoding Decoded in Above 4G Address Space (Only if System Enabled Supports 64 bit PCI Decoding). Globally Enables or Disables Hot-Plug support for the entire Enabled System.

  • Page 48: Csm Configuration

    LEC-6041 User Manual CSM Configuration Feature Options Description Disabled CSM Support Enables or disables CSM Support Enabled Do Not Launch Controls the execution of UEFI and Legacy PXE Network UEFI OpROM Legacy Do Not Launch Controls the execution of UEFI and Legacy Storage...

  • Page 49: Usb Configuration

    LEC-6041 User Manual USB Configuration Feature Options Description Enables Legacy USB support. Enabled Legacy USB Auto option disables legacy support if no USB devices are connected; Disabled Support Disabled option will keep USB devices available only for EFI Auto applications.
  • Page 50 LEC-6041 User Manual USB Configuration Feature Options Description Disabled Control Legacy PXE LAN1 Control Legacy PXE Boot from which LAN Boot from LAN2...
  • Page 51 LEC-6041 User Manual Select the Chipset menu item from the BIOS setup screen to enter the Platform Setup screen. Users can select any of the items in the left frame of the screen.

  • Page 52: North Bridge

    LEC-6041 User Manual North Bridge Feature Options Description 2 GB 2.25 GB Max TOLUD 2.5 GB Maximum Value of TOLUD. 2.75 GB 3 GB Enable/Disable above 4GB MemoryMappedIO BIOS Above 4GB MMIO Enabled assignment This is disabled automatically when Aperture...

  • Page 53: South Bridge

    LEC-6041 User Manual South Bridge Feature Options Description Quiet Serial IRQ Mode Configure Serial IRQ Mode. Continuous Windows Android OS Selection Select the target OS Win7 Intel Linux...

  • Page 54: South Cluster Configuration

    LEC-6041 User Manual South Cluster Configuration...
  • Page 55 LEC-6041 User Manual SATA Drives Please refer to Connector Pin Assignment for the physical port location: SATA Port0 = mSATA storage SATA Port1 = SATA1 port (on motherboard)
  • Page 56 LEC-6041 User Manual Feature Options Description Aggressive LPM Enabled Enable PCH to aggressively enter link power state. Support Disabled Enabled Port 0 Enable or Disable SATA Port Disabled SATA Port 0 Hot Plug Enabled If enabled, SATA port will be reported as Hot Plug...
  • Page 57 LEC-6041 User Manual USB Configuration Feature Options Description Once disabled, XHCI controller would be function disabled, Enable xHCI Mode none of the USB devices are detectable and usable during Disable boot and in OS. Do not disable it unless for debug purpose.
  • Page 58 LEC-6041 User Manual Miscellaneous Configuration Feature Options Description Specify what state to go to when power is re-applied after a Power On Restore AC power failure (G3 state). S0 State: System will boot directly as Power Off Power Loss soon as power applied. S5 State: System keeps in power-off Last State state until power button is pressed.
  • Page 59 LEC-6041 User Manual Select the Security menu item from the BIOS setup screen to enter the Security Setup screen. Users can select any of the items in the left frame of the screen. Feature Description If ONLY the Administrator's password is set, it only limits access to Setup and is only asked for when entering Setup.

  • Page 60: Secure Boot

    LEC-6041 User Manual Secure Boot Feature Options Description Secure Boot is activated when Platform Key (PK) is enrolled, Disabled Attempt Secure Boot System mode is User/Deployed, and CSM function is Enabled disabled. Secure Boot mode selector: Standard Secure Boot Mode...
  • Page 61 LEC-6041 User Manual Key Management Feature Options Description Provision Factory Disabled Allows User to provision factory default Secure Boot keys Default keys Enabled when System is in Setup Mode. Install Factory Forces System to User Mode - install all Factory Default keys...
  • Page 62 LEC-6041 User Manual Select the Boot menu item from the BIOS setup screen to enter the Boot Setup screen. Users can select any of the items in the left frame of the screen. Feature Options Description The Number of seconds to wait for setup activation key.
  • Page 63 LEC-6041 User Manual Select the Save & Exit menu item from the BIOS setup screen to enter the Save and Exit Setup screen. Users can select any of the items in the left frame of the screen. Discard Changes and Exit Select this option to quit Setup without saving any modifications to the system configuration.
  • Page 64 LEC-6041 User Manual Restore Defaults Restore default values for all setup options. Select “Yes” to load Optimized defaults. Note: The items under Boot Override were not same with image. It should depend on devices connect to this system.
  • Page 65 LEC-6041 User Manual HDD Activity (HDD) If this LED blinks, it indicates data access activities; otherwise, it remains off. Blinking Amber Data access activity No data access activity System Status (STA) This LED indicator is programmable. You could program it to display the operating status of the...
  • Page 66 LEC-6041 User Manual Blinking Amber There is fiber activity on this port Solid Amber Fiber link status No link is established C1-C2 COM Port TX Activity Solid Amber Data transmitting No data activity RX Activity Solid Amber Data receiving No data activity Each LAN dedicates 2x LEDs to represent Link and Speed (100/1000) and fiber is only 1x LED.
  • Page 67 LEC-6041 User Manual Console redirection lets you monitor and configure a system from a remote terminal computer by re- directing keyboard input and text output through the serial port. The following steps illustrate how to use this feature. The BIOS of the system allows the redirection of the console I/O to a serial port. With this configured, you can remotely access the entire boot sequence through a console port.
  • Page 68 LEC-6041 User Manual 1. All products are under warranty against defects in materials and workmanship for a period of one year from the date of purchase. 2. The buyer will bear the return freight charges for goods returned for repair within the warranty period;...
  • Page 69 LEC-6041 User Manual When requesting RMA service, please fill out the following form. Without this form enclosed, your RMA cannot be processed.
