Summary of Contents for Candy CDP 2L949W

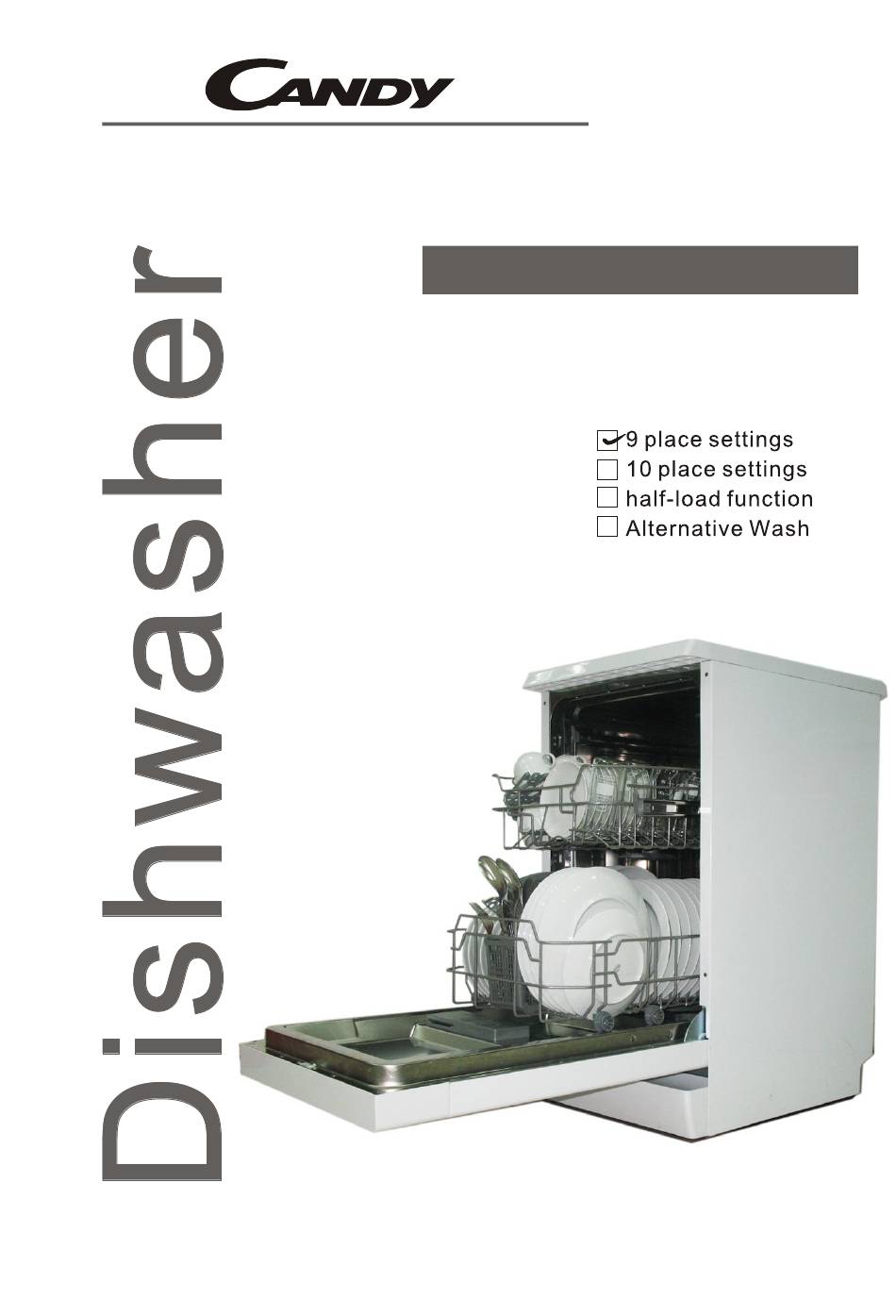

- Page 1 Instruction Manual CDP 2L949W CDP 2L949X...
-
Page 2: Table Of Contents
1) Safety Information..........1 Read this Manual 2) Quick operation guide........2 3) Operation Instruction........3 Dear Customer, Control Panel...........3 Dishwasher Features........3 Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly. 4) Prior using for the first time......4 Keep it to refer to it at a later date. -
Page 3: Safety Information
1.IMPORTANT SAFETY INFORMATION WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. - Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 5 WARNING! WARNING! Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 6: Quick Operation Guide
2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the Power button to switch on the appliance . B. B. The detergent container is inside the door. If the lid of the container is closed, press the button (A) to open. -
Page 7: Operation Instruction
Start... -
Page 8: Prior Using For The First Time
Prior using for the first time Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent A. Water Softener The water softener must be set manually, using the water hardness dial. -
Page 9: B Loading The Salt Into The Softener
B. Loading the Salt Into the Softener Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. -
Page 10: C Loading The Detergent
LOADING THE DETERGENT The detergent IMPORTANT It is essential to use a detergent that is specifically designed for dishwashers either in powder, liquid or tablet form. FINISH gives very good results and can be easily obtained.Unsuitable detergents (like those for washing up by hand) do not contain the proper ingredients for use in a dishwasher and stop the dishwasher from working correctly. - Page 12 LOADING THE RINSE AID The rinse aid The rinse aid, which is automatically released during the last rinsing cycle, helps the dishes to dry quickly and prevents spots and stains forming. Filling the rinse aid container The rinse aid container can be found to the left of the detergent container (fig. A "3").To open the lid, push the reference mark and, in the same time, pull the tab of opening.It is always advisable to use rinse aid that is specifically designed for dishwasher.Check the rinse aid level through the indicator eye (C) which is located on the dispenser.
-
Page 13: Loading The Dishwasher Basket
5.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. -
Page 14: The Method Loading Normal Dishware
The Method Loading Normal Dishware Loading the Lower Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and... -
Page 15: Starting A Washing Programme
6.Starting a washing program Wash Cycle Table Means: need to fill rinse into the Rinse-Aid Dispenser. NOTE: Description Running Energy Cycle Selection Detergent Water Rinse Program of Cycle time(min) (Kwh) Information pre/main Prewash(50 ) For heaviest soiled crockery, Wash (60 ) and normally soiled pots Rinse 5/22... -
Page 16: Change The Programme
NOTE: [ P1 - Intensive, P2 - Normal, P3 - Eco, P4 - Rapid, P5 - Soak ] Change the Programme Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. -
Page 17: Maintenance And Cleaning
7.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). -
Page 18: Caring For The Dishwasher
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 19: Installation Instruction
How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 20: Water Connection
Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. -
Page 21: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 22: Troubleshooting Tips
9.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat to Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start... -
Page 23: Error Codes
Problem Possible Causes What to Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 24: Technical Information
Technical Information Height : 845mm Width : 448m m Depth : 617mm (with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 9 place settings... - Page 25 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer CANDY Type / Description CDP 2L949W.CDP 2L949X Standard place settings Energy efficiency class Annual energy consumption 197 kWh Energy consumption of the standard cleaning cycle 0.69 kWh Power consumption of off-mode 0.30 W...
