- Page 1 USB Dongle Kit User Manual V1.4 Custom P/N: 1069-5893...
-
Page 2: Table Of Contents
Contents Revision history ........................ 2 Introduction ........................3 Specifications ........................4 Kit content ......................... 4 Pinout diagram........................5 Mechanical specifications ....................6 Ordering information ......................8 Certification........................9 FCC Statement ......................9 End-Product Label ....................10... -
Page 3: Revision History
Revision history Date Version Description April 12, 2022 V1.0 First release April 13, 2022 V1.1 Add ordering information July 11, 2022 V1.2 Update kit content Update specifications with pre-installed September 28, 2022 V1.3 firmware. Update antenna connector to RPSMA October 13, 2022 V1.4 Add Certification section. -
Page 4: Introduction

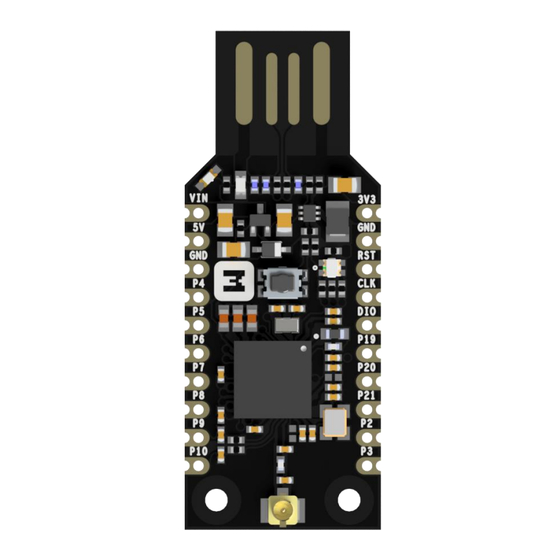

Introduction The nRF52840 USB Dongle Kit is a versatile and low-cost development platform enabled by the nRF52840 multiprotocol SoC in a convenient USB dongle form factor. The design features a programmable user button, RGB LED, up to 12 GPIOs and U.FL connector for external antenna. -
Page 5: Specifications
Pre-installed with UF2 Bootloader and OpenThread Device firmware Measures 45.2mm x 17.8mm x 4.0mm without headers soldered in Kit content 1x nRF52840 USB Dongle (Kontron customized) 2x IP54 compatible U.FL-to-RPSMA Coax RF Cable 1x Tilt/Swivel 2.4GHz Antenna w/ RPSMA... -
Page 6: Pinout Diagram
Pinout diagram Figure 2 Pinout diagram... -
Page 7: Mechanical Specifications
Mechanical specifications The mechanical specifications for the kit show the dimensions in millimeters. Figure 3 nRF52840 USB Dongle dimension Figure 4 U.FL-to-RPSMA Coax RF Cable dimension... - Page 8 Figure 5 Tilt/Swivel 2.4GHz Antenna w/ RPSMA dimension...
-
Page 9: Ordering Information
Ordering information Part Number Part Name 501001001 nRF52840 USB Dongle Kit; Kontron... -
Page 10: Certification
2.2List of applicable FCC rules：FCC Part15 Subpart C, Section 15.247 2.3Specific operational use conditions This device is intended only for OEM integrators under the following conditions: The module must be installed in the host equipment such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. -
Page 11: End-Product Label
End-Product Label It is suggested using following content adding to package or user manual or label to obey the regulation. Any rules of end-product label shall refer to each regulation for final reference. The product is too small to place complete label information, so the label is placed in the user manual.
