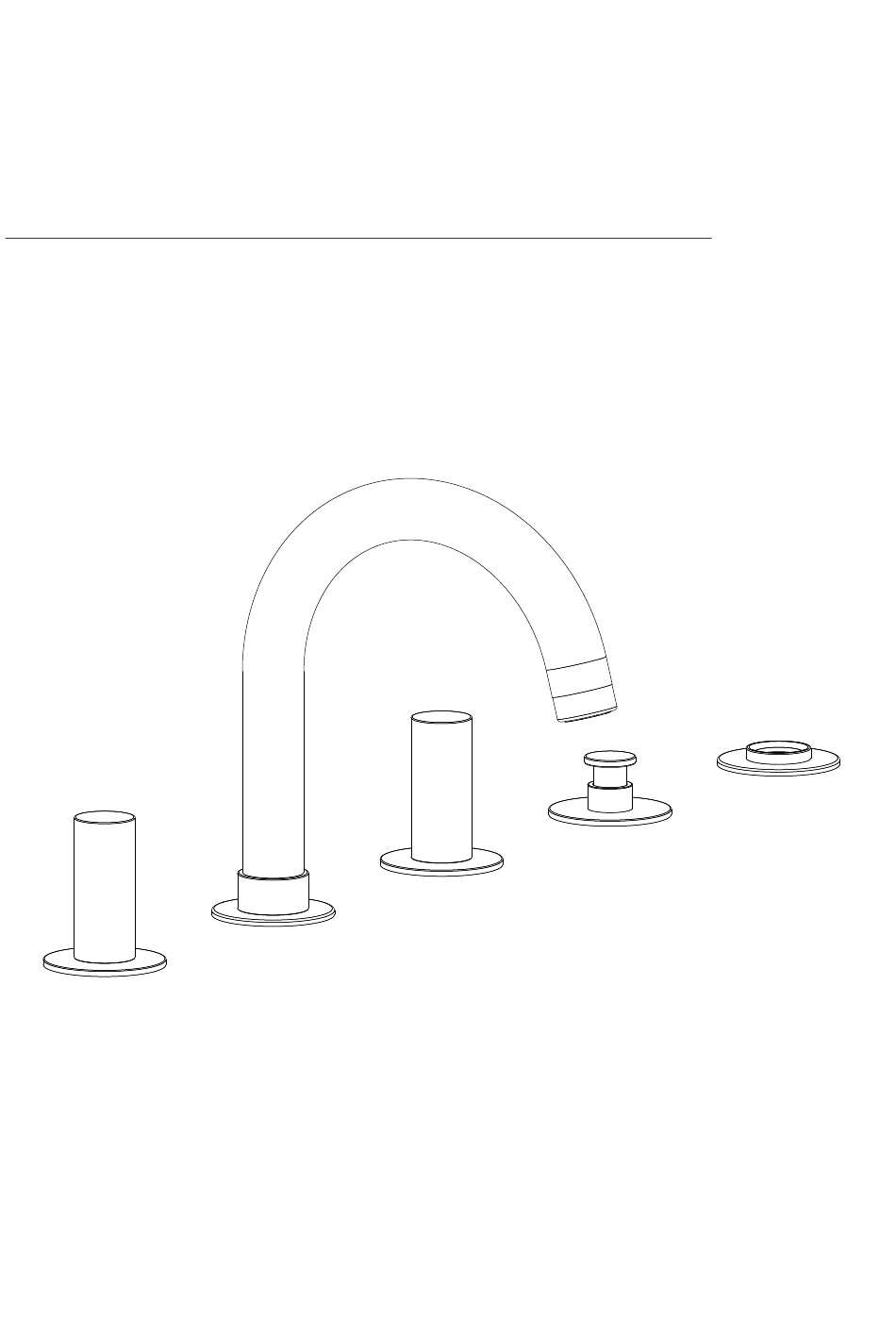

- Page 1 BAGNODESIGN EXPERTLY CRAFTED BATHROOMS Installation Guide BDM-SES-453-XX-XX SESTRIERE 5 HOLE BATH/SHOWER MIXER WITH BLACK MARBLE HANDLE WITHOUT HAND SHOWER A member of SANIPEXGROUP Please leave these instructions with the customer...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS Minimum hydraulic pressure: 0,5 bar Maximum hydraulic pressure: 10 bar Recommended working pressure: from 1 to 5 Tested pressure: 16 bar Temperature of inlet hot water: 80°C Suggested temperature (Energy sa-ving): 60°C Functioning automatic diverter: ≥ 0,5 bar (dynamic pressure) It is very important that hot and cold water temperature will be balanced as much as possible to grant the optimum performance of the single-lever mixer. - Page 4 DRILLING SCHEME FOR DECK MOUNTED TRADITIONAL BATH TAP DRILLING SCHEME FOR DECK MOUNTED TRADITIONAL BATH TAP...
- Page 5 CONTROL Place the upright by screwing the lock-nut the washer and the gasket to adjust the locking according to the bathtub thickness. Screw the same parts in the upper side of the bathtub, then place the washer , screw the cap onto the upright body then fit the han-dle.
- Page 6 DIVERTER Screw onto the diverter body the lock-nut the washer and the gasket. Adjust the locking according to the bathtub thickness, then fit the diverter body upwards inside the bathtub hole. Insert the cap with its OR and the knob. Now it is possible to register properly the cup by screwing or unscrewing it...
- Page 7 Hand shower not include in the box - by separately HAND SHOWER Fit the shower holder and fix with the lock- nut ,connect the fle-xible hose and screw the hand shower. Flow reducer...
- Page 8 FILLER SPOUT Place the filler set by fitting the washer with its OR, then secure with the lock-nut the lock-washer and the gasket.
- Page 9 CLEANING Use soft cloth, soapy solution and water for regular care.Wipe with a dry cloth. Avoid the use of abrasives or solvents, which damage the surface. Damage caused by inappropriate treatment by the user, is not covered by our guarantee.
- Page 10 Note:...
- Page 11 Note:...
- Page 12 INM-SES-453-X-XX-02-21 D766B20156...
