OWNER'S MANUAL
Multimedia
Speaker System
Please read this manual carefully before operating your set and
retain it for future reference.
MODEL
LH62B (LH62B, LH62B-S)
LH62G (LH62G, LH62G-S)
*MFL69306405*
LH64B_LH62B_LH64G_LH62G.AINDLLK_ENG.indd 1
LH64B (LH64B, LH62B-S)
LH64G (LH64G, LH62G-S)
www.lg.com
2016-06-30
4:05:19
Advertisement
Table of Contents
Related Manuals for LG LH62B-S
Summary of Contents for LG LH62B-S

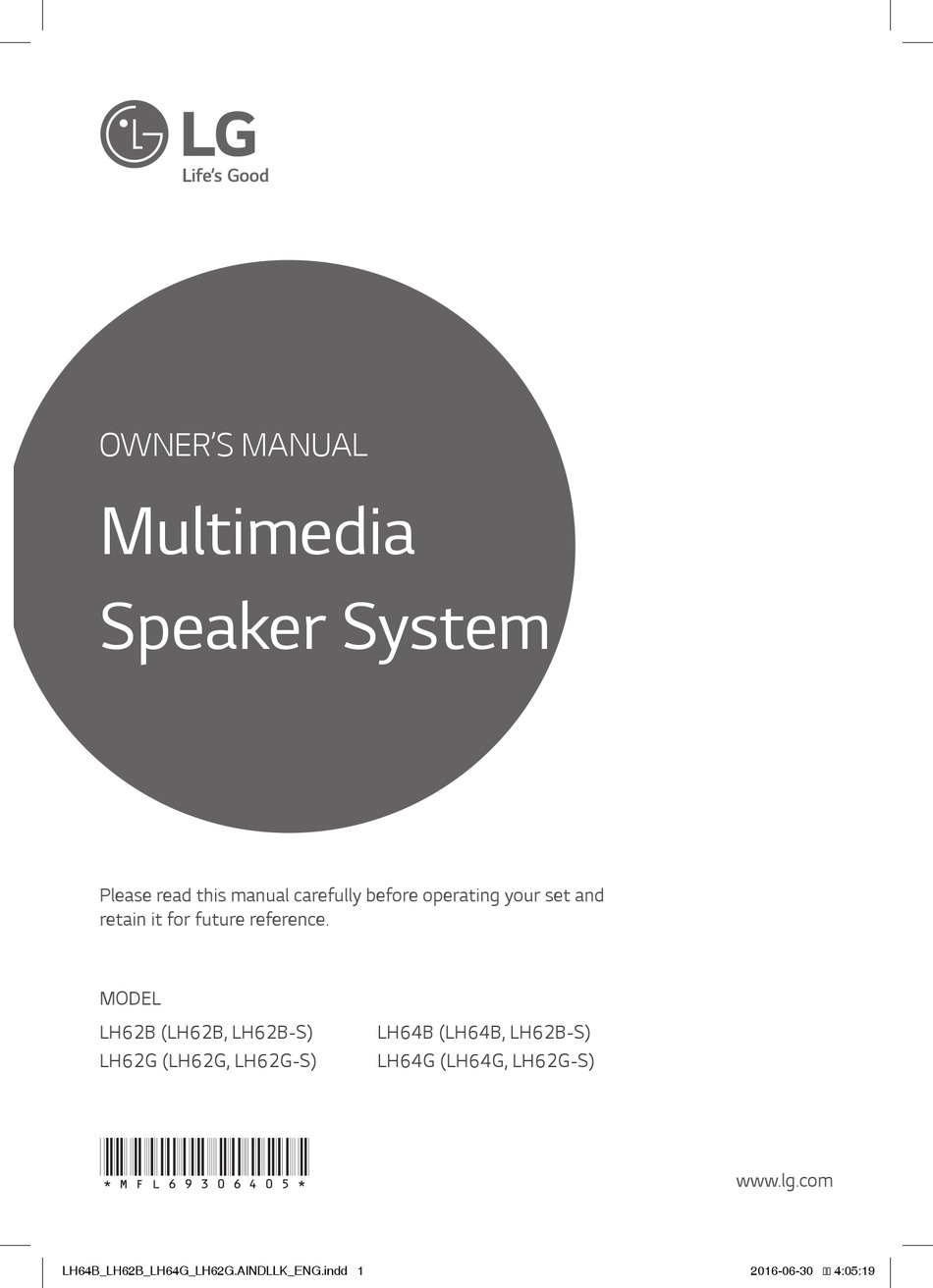

- Page 1 OWNER’S MANUAL Multimedia Speaker System Please read this manual carefully before operating your set and retain it for future reference. MODEL LH62B (LH62B, LH62B-S) LH64B (LH64B, LH62B-S) LH62G (LH62G, LH62G-S) LH64G (LH64G, LH62G-S) *MFL69306405* www.lg.com LH64B_LH62B_LH64G_LH62G.AINDLLK_ENG.indd 1 2016-06-30 4:05:19...
-
Page 2: Getting Started
Getting Started Safety Information NOTICE: For safety marking information including product identification and supply ratings, please refer CAUTION to the main label on the bottom or the other surface of the product. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION concerning the Power Cord CAUTION: TO REDUCE THE RISK OF ELECTRIC Most appliances recommend they be placed upon a SHOCK DO NOT REMOVE COVER (OR BACK) -
Page 3: Table Of Contents
Table of Contents Table of Contents Getting Started Using External device Safety Information USB MP3 Playback – Selecting a folder Unpacking BLUETOOTH® Connection Front of the unit Back of the unit Troubleshooting Remote control Troubleshooting Connection Appendix Speaker Connection AUX IN Connection Specification PORT. -
Page 4: Unpacking

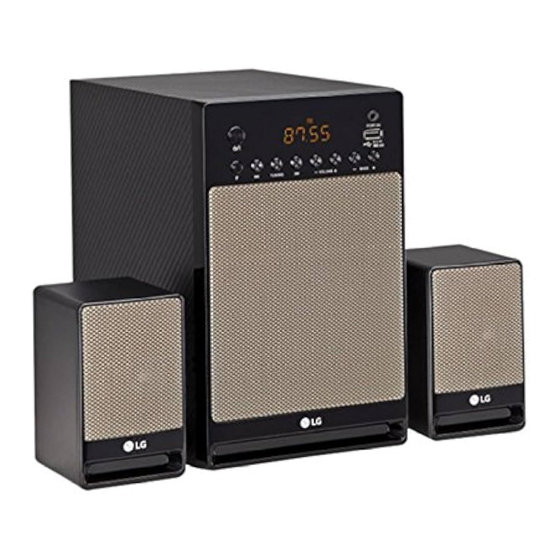

Getting Started Unpacking Unit and Speakers Unit and Speakers Remote Control Audio Cable Owner’ s Manual (LH62B/LH62G) (LH64B/LH64G) and Batteries Front of the unit A Remote sensor B 1 / ! (Standby/On) C F (Function) : Selects the function and input source. (USB / AUX / PORT / BT / FM) Y TUNING U y Skips backward or Forward. -
Page 5: Back Of The Unit
Getting Started Back of the unit LH64B/LH64G LH62B/LH62G A AUX IN connector (L/R) B FM ANTENNA C POWER IN cable D LH64B/LH64G: FRONT / REAR SPEAKERS Terminal LH62B/LH62G: FRONT SPEAKERS Terminal LH64B_LH62B_LH64G_LH62G.AINDLLK_ENG.indd 5 2016-06-30 4:05:20... -
Page 6: Remote Control
Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power) : Switches the unit ON or OFF (standby mode). -
Page 7: Connection
Connection Speaker Connection Connect the wires to the unit. LH64B/LH64G LH62B/LH62G 1. Press each plastic finger pad to open speaker terminals. 2. Insert the wire and release the finger pad. 3. Connect the black wire of each wire to the terminal marked - (minus) and the red wire to the terminal marked + (plus). -
Page 8: Port. In Connection
Connection OPTION 2 Connect an output of auxiliary device (Camcorder, TV, Player, etc) to the AUX IN (L/R) connector. Audio cable (L/R) (Not supplied) PORT. IN Connection Portable cable (ø 3.5 mm) (Not supplied) Listening to music from your portable player or external device The unit can be used to play the music from many types of portable player or external device. -
Page 9: Operation
Operation Radio Operation Listening to the radio FM antenna 1. Press F on the remote control or F on the unit until FM appears on the display window. The last received station is tuned in. 2. Auto tuning: Press TUNING -/+ (C/V) on the remote control or TUNING (Y/U) on the unit for about 1 second until the frequency indication starts changing, then release. -
Page 10: Sound Adjustment
Operation Sound Adjustment Setting the surround mode This system has a number of pre-set surround sound fields. The displayed items for the Equalizer may be different depending on sound sources and effects. You can select a desired sound mode by using SOUND EFFECT on the remote control. On Display Description BASS... -
Page 11: Using External Device
Using External device USB MP3 Playback USB Storage Device 1. Insert the USB storage device to the USB port on the unit. 2. Select the USB function by pressing F on the unit or F on the remote control. When you select USB function, the USB storage device will be played automatically. -
Page 12: Selecting A Folder
Using External device Selecting a folder When a USB containing MP3 files in several folders is being played, 1. Press PRESET/FOLDER W/S on the remote control repeatedly. Index of the first played file in the folder is displayed. 2. Press T on the unit or d/M on the remote control to play it. The first file of the folder will play. , Note y USB Folders/Files are recognized as below. -
Page 13: Bluetooth® Connection
3. “READY” appears to find a Bluetooth device on the display window. 4. Select “LG LH62(XX) or LG LH64(XX)” on your Bluetooth device for pairing. 5. When this unit successfully paired with your Bluetooth device, “PAIRED” appears on the display window. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting No Power y The power cord is not plugged in. Plug in the power cord. y Check whether electricity failed. Check the condition by operating other electronic devices. No sound and sound distortion y The unit or your external device’ s volume is set to minimum. Check and adjust the volume of the unit. y When you use external device at high volume, the sound quality may be deteriorated. -
Page 15: Appendix
Appendix Appendix Specification LH62B/LH62G LH64B/LH64G Product type 2.1 speaker system 4.1 speaker system Power Supply Refer to the main label. Power Consumption 30 W 38 W Unit Approx. 160 mm x 260 mm x 258 mm Dimensions (W x H x D) Speaker Approx. - Page 16 LH64B_LH62B_LH64G_LH62G.AINDLLK_ENG.indd 16 2016-06-30 4:05:22...
