- Page 1 PVS24088L PVS24102N PVS24140N Instructions for use Built-in freezer...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. www.pelgrim.nl Important safety warning General warnings and tips Protecting the environment...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME 5 IMPORTANT SAFETY INSTRUCTIONS 8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE 9 ENVIRONMENT PROTECTION 10 ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES APPLIANCE 11 INSTALLATION AND CONNECTION DESCRIPTION 13 APPLIANCE DESCRIPTION... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! Risk of fire/flammable materials. The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet). - Page 6 Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 7 Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Warning regarding the refrigerant The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged.
-
Page 8: Important Information On The Use Of Appliance
IMPORTANT INFORMATION ON THE USE OF APPLIANCE WARNING! This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments;... -
Page 9: Environment Protection
Technical information on the appliance Rating plate can be found in the appliance interior (see figure). It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes. ENVIRONMENT PROTECTION Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. -
Page 10: Advice For Saving Energy With Refrigeration Appliances
ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced as soon as possible. -
Page 11: Installation And Connection
INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. - Page 12 CONNECTING THE APPLIANCE • Connect the appliance to the power mains using the power cord. The wall outlet should be fi tted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information on the appliance.
-
Page 13: Appliance Description

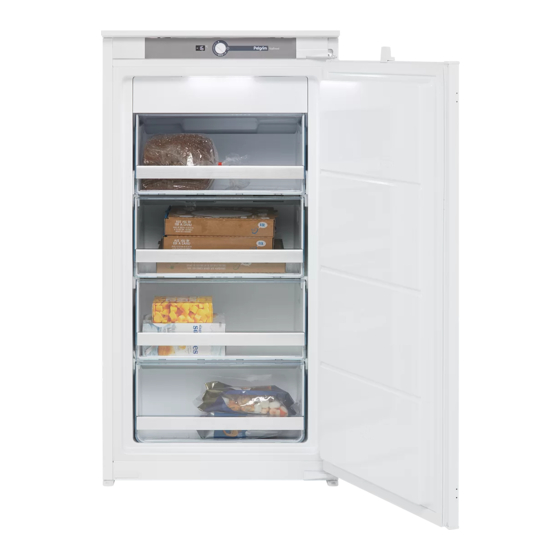

APPLIANCE DESCRIPTION NoFrost appliance 1 Control unit 2 LED lighting 3 NO FROST freezing unit 4 Drawers for freezing and storage 5 Storage compartment Best location for freezing fresh food. - Page 14 Conventional appliance 1 Control unit 2 Drawers for freezing and storage Best location for freezing fresh food.
-
Page 15: Operating The Appliance
OPERATING THE APPLIANCE NoFrost appliance Conventional appliance A Temperature setting and on/off knob Use the dial to switch the appliance on or off , set the temperature, and control the ECO function. B Display of the set temperature SWITCHING THE APPLIANCE ON/OFF Switching on: To switch on: rotate the A dial clockwise. - Page 16 ADJUSTING THE TEMPERATURE IN THE APPLIANCE • After the appliance is switched on, it may take several hours for the set temperature to be reached. Do not place any food into the refrigerator before the temperature drops to the selected setting. •...
- Page 17 HIGH-TEMPERATURE ALARM A signal will be given when the temperature in the appliance is too high. The set temperature shown in the display and, if present, the LED lighting will fl ash. A high temperature can be caused for several reasons: •...
-
Page 18: Appliance Interior Equipment
APPLIANCE INTERIOR EQUIPMENT Ice tray • If the tray is used as an ice tray, fi ll it with water and place it in the freezer in a horizontal position. -
Page 19: Storing And Freezing Food
STORING AND FREEZING FOOD RECOMMENDED DISTRIBUTION Sections of the freezer compartment • Top section: leftovers, ice, pizza. • Middle section: meat, fi sh, bread. • Bottom section: standard freezer, vegetables and fruit. Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt, buttermilk, sour cream or mayonnaise in the freezer. - Page 20 • Distribute the fresh food equally between all the drawers in the freezer compartment. • After 24 hours, you can transfer the food to another compartment in the freezer and then freeze a new batch of food. Important recommendations for storing frozen food •...
-
Page 21: Defrosting The Appliance
DEFROSTING THE APPLIANCE DEFROSTING A CONVENTIONAL FREEZER • Defrost the freezer when a layer of approximately 3 -5 millimetre of frost or ice has built up. • 24 hours before defrosting, activate the intensive freezing function to additionally cool the food. After this period, remove the food from the freezer and protect it from defrosting. -
Page 22: Cleaning The Appliance
CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter 'Operating the appliance') and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. -
Page 23: Troubleshooting
TROUBLESHOOTING Problem: Cause or remedy Appliance is connected • Make sure there is voltage in the power outlet and to the power mains but that the appliance is switched on. it does not work. Cooling system • Too high ambient temperature. operates continuously •... - Page 24 Problem: Cause or remedy LED lighting does not • If LED lighting does not work, call a service work: technician. • Do not attempt a repair of the LED lighting yourself, as there is danger of contact with high voltage! Appliance makes a •...
- Page 28 FREEZER BI540-F2 ESS PEL en (05-19)
