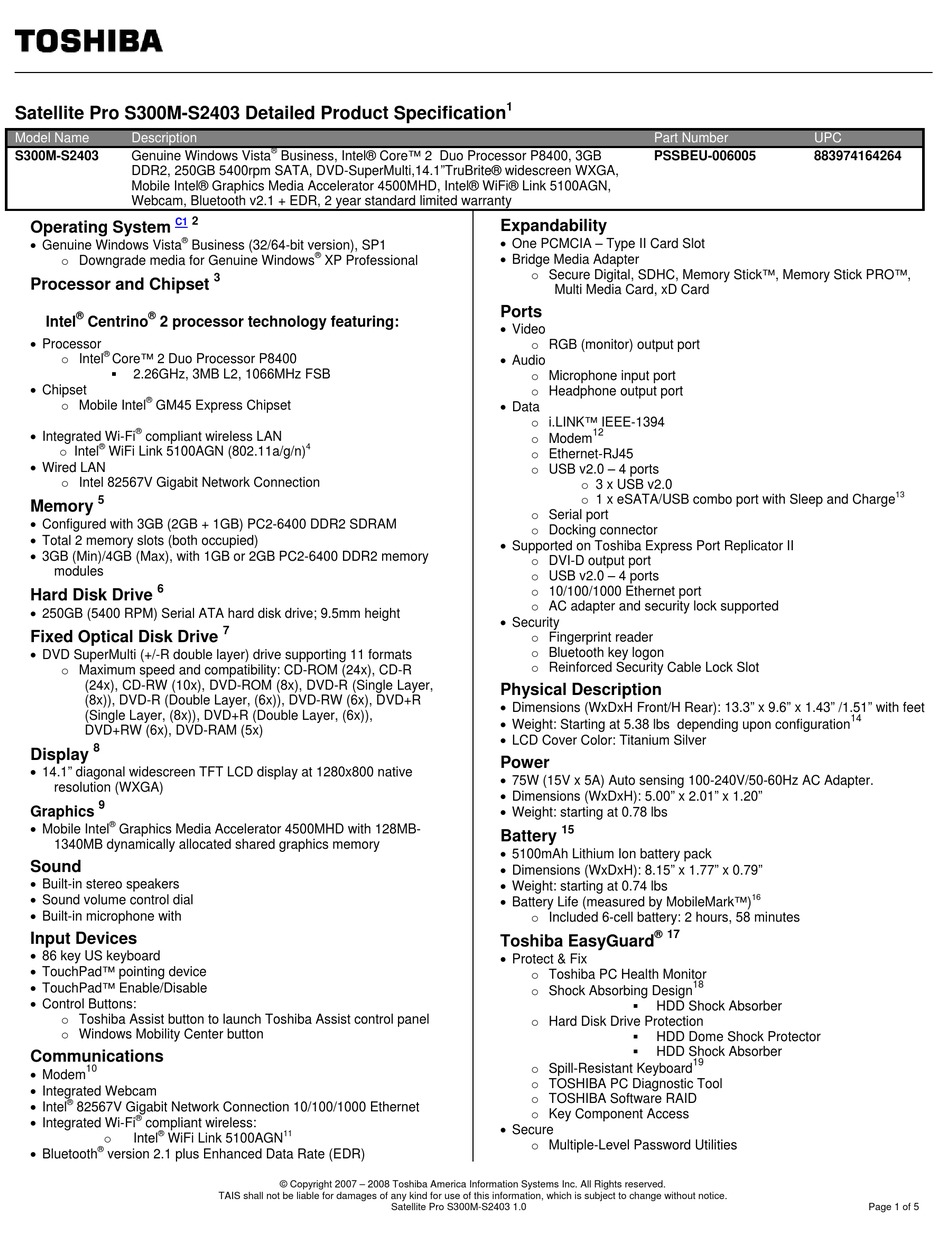

Toshiba Satellite Pro S300M-S2403 Specifications

Satellite Pro S300M-S2403 Detailed Product Specification
Model Name Description
S300M-S2403 Genuine Windows Vista
DDR2, 250GB 5400rpm SATA, DVD-SuperMulti,14.1"TruBrite® widescreen WXGA,
Mobile Intel® Graphics Media Accelerator 4500MHD, Intel® WiFi® Link 5100AGN,
Webcam, Bluetooth v2.1 + EDR, 2 year standard limited warranty
2
C1
Operating System
 Genuine Windows Vista
®
Business (32/64-bit version), SP1
o Downgrade media for Genuine Windows
Processor and Chipset
® ®
Intel Centrino 2 processor technology featuring:
 Processor
®
o Intel Core™ 2 Duo Processor P8400

2.26GHz, 3MB L2, 1066MHz FSB
 Chipset
®
o Mobile Intel GM45 Express Chipset
 Integrated Wi-Fi
®
compliant wireless LAN
®
o Intel WiFi Link 5100AGN (802.11a/g/n)
 Wired LAN
o Intel 82567V Gigabit Network Connection
5
Memory
 Configured with 3GB (2GB + 1GB) PC2-6400 DDR2 SDRAM
 Total 2 memory slots (both occupied)
 3GB (Min)/4GB (Max), with 1GB or 2GB PC2-6400 DDR2 memory
modules
6
Hard Disk Drive
 250GB (5400 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (6x), DVD-RAM (5x)
8
Display
 14.1" diagonal widescreen TFT LCD display at 1280x800 native
resolution (WXGA)
9
Graphics
 Mobile Intel
®
Graphics Media Accelerator 4500MHD with 128MB-
1340MB dynamically allocated shared graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone with
Input Devices
 86 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
10
 Modem
 Integrated Webcam
 Intel
®
82567V Gigabit Network Connection 10/100/1000 Ethernet
 Integrated Wi-Fi
®
compliant wireless:
®
Intel WiFi Link 5100AGN
o
 Bluetooth
®
version 2.1 plus Enhanced Data Rate (EDR)
®
Business, Intel® Core™ 2 Duo Processor P8400, 3GB
®
XP Professional
3
4
7
11
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite Pro S300M-S2403 1.0
1
Part Number
PSSBEU-006005
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD Card
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
12
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o 3 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator II
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
 Security
o Fingerprint reader
o Bluetooth key logon
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 13.3" x 9.6" x 1.43" /1.51" with feet
 Weight: Starting at 5.38 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.20"
 Weight: starting at 0.78 lbs
15
Battery
 5100mAh Lithium Ion battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.74 lbs
 Battery Life (measured by MobileMark™)
o Included 6-cell battery: 2 hours, 58 minutes
17
®
Toshiba EasyGuard
 Protect & Fix
o Toshiba PC Health Monitor
o Shock Absorbing Design

HDD Shock Absorber
o Hard Disk Drive Protection

HDD Dome Shock Protector

HDD Shock Absorber
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o TOSHIBA Software RAID
o Key Component Access
 Secure
o Multiple-Level Password Utilities
UPC
883974164264
14
16
18
19
Page 1 of 5
13
