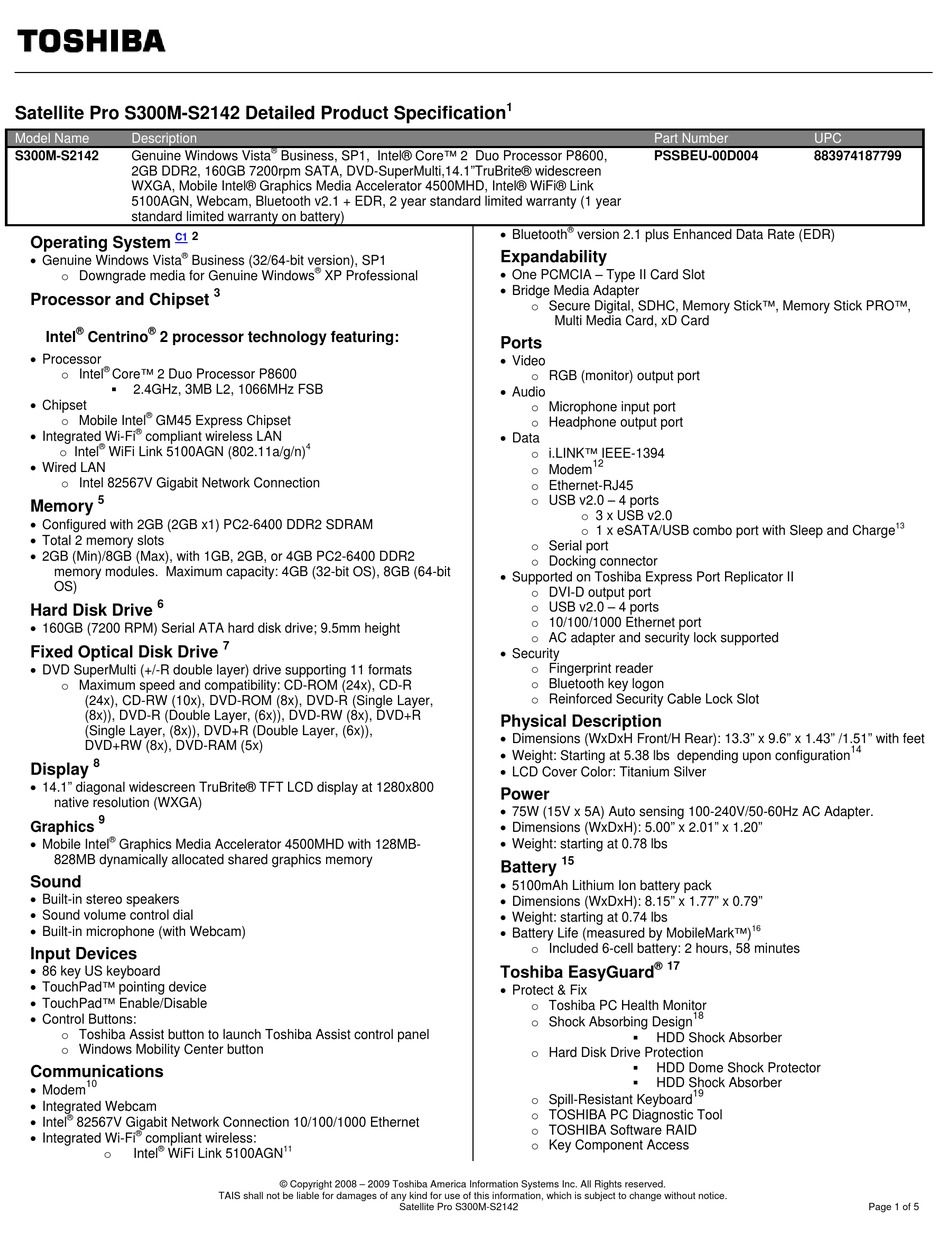

Satellite Pro S300M-S2142 Detailed Product Specification
Model Name
Description
S300M-S2142
Genuine Windows Vista
2GB DDR2, 160GB 7200rpm SATA, DVD-SuperMulti,14.1"TruBrite® widescreen
WXGA, Mobile Intel® Graphics Media Accelerator 4500MHD, Intel® WiFi® Link
5100AGN, Webcam, Bluetooth v2.1 + EDR, 2 year standard limited warranty (1 year
standard limited warranty on battery)
2
C1
Operating System
Genuine Windows Vista
®
Business (32/64-bit version), SP1
o Downgrade media for Genuine Windows
Processor and Chipset
®
®
Intel
Centrino
2 processor technology featuring:
Processor
®
o Intel
Core™ 2 Duo Processor P8600
2.4GHz, 3MB L2, 1066MHz FSB
Chipset
®
o Mobile Intel
GM45 Express Chipset
Integrated Wi-Fi
®
compliant wireless LAN
®
o Intel
WiFi Link 5100AGN (802.11a/g/n)
Wired LAN
o Intel 82567V Gigabit Network Connection
5
Memory
Configured with 2GB (2GB x1) PC2-6400 DDR2 SDRAM
Total 2 memory slots
2GB (Min)/8GB (Max), with 1GB, 2GB, or 4GB PC2-6400 DDR2
memory modules. Maximum capacity: 4GB (32-bit OS), 8GB (64-bit
OS)
6
Hard Disk Drive
160GB (7200 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (8x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)),
DVD+RW (8x), DVD-RAM (5x)
8
Display
14.1" diagonal widescreen TruBrite® TFT LCD display at 1280x800
native resolution (WXGA)
9
Graphics
Mobile Intel
®
Graphics Media Accelerator 4500MHD with 128MB-
828MB dynamically allocated shared graphics memory
Sound
Built-in stereo speakers
Sound volume control dial
Built-in microphone (with Webcam)
Input Devices
86 key US keyboard
TouchPad™ pointing device
TouchPad™ Enable/Disable
Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
10
Modem
Integrated Webcam
Intel
®
82567V Gigabit Network Connection 10/100/1000 Ethernet
Integrated Wi-Fi
®
compliant wireless:
®
Intel
WiFi Link 5100AGN
o
®
Business, SP1, Intel® Core™ 2 Duo Processor P8600,
®
XP Professional
3
4
7
11
© Copyright 2008 – 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
1
Bluetooth
®
version 2.1 plus Enhanced Data Rate (EDR)
Expandability
One PCMCIA – Type II Card Slot
Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD Card
Ports
Video
o RGB (monitor) output port
Audio
o Microphone input port
o Headphone output port
Data
o i.LINK™ IEEE-1394
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o Serial port
o Docking connector
Supported on Toshiba Express Port Replicator II
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
Security
o Fingerprint reader
o Bluetooth key logon
o Reinforced Security Cable Lock Slot
Physical Description
Dimensions (WxDxH Front/H Rear): 13.3" x 9.6" x 1.43" /1.51" with feet
Weight: Starting at 5.38 lbs depending upon configuration
LCD Cover Color: Titanium Silver
Power
75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
Dimensions (WxDxH): 5.00" x 2.01" x 1.20"
Weight: starting at 0.78 lbs
15
Battery
5100mAh Lithium Ion battery pack
Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
Weight: starting at 0.74 lbs
Battery Life (measured by MobileMark™)
o Included 6-cell battery: 2 hours, 58 minutes
Toshiba EasyGuard
Protect & Fix
o Toshiba PC Health Monitor
o Shock Absorbing Design
o Hard Disk Drive Protection
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o TOSHIBA Software RAID
o Key Component Access
Satellite Pro S300M-S2142
Part Number
PSSBEU-00D004
12
o 3 x USB v2.0
o 1 x eSATA/USB combo port with Sleep and Charge
16
17
®
18
HDD Shock Absorber
HDD Dome Shock Protector
HDD Shock Absorber
19
UPC
883974187799
13
14
