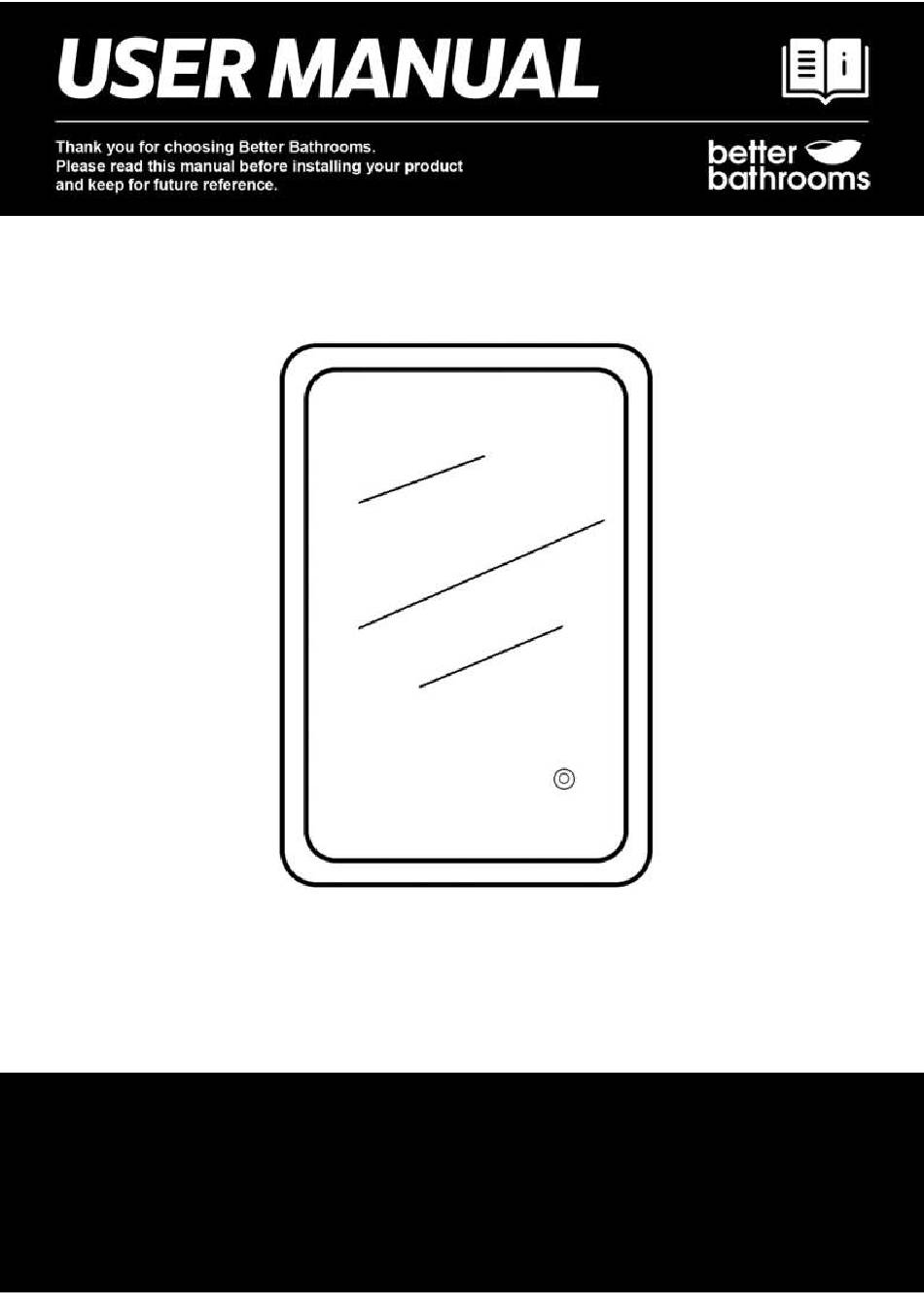

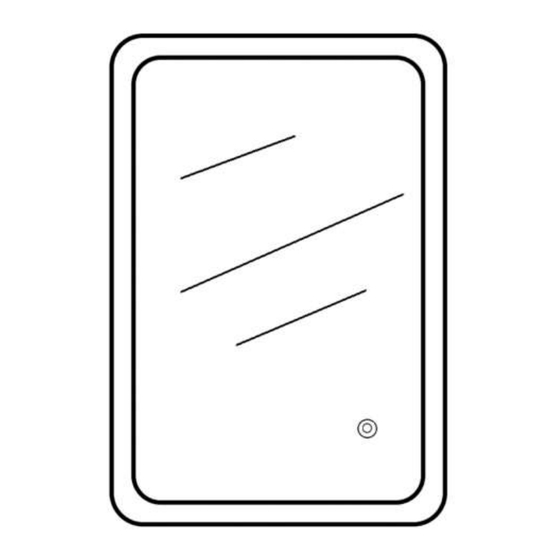

- Page 1 TOUCH CONTROL LED MIRROR BeBa_27532, BeBa_27533 BeBa_27534, BeBa_27535 • TOUCH CONTROL BeBa_27535 • LED LIGHT • IP44 INGRESS PROTECTION...
-
Page 2: Table Of Contents
CONGRATULATIONS ON YOUR PURCHASE Our aim at Better Bathrooms is to bring you extraordinary bathroom products, for less. If you’re after a modern, traditional, or a totally unique style bathroom, we have the fittings and fixtures to bring your ideas to life, so you can fall in love with your space every day. -
Page 3: Safety
SAFETY • The fitting should be installed by a qualified electrician. • This fitting is only suitable for connection to a 220V~50Hz earthed supply in accordance with current IEE wiring regulations, and should be installed in accordance with local Building Regulations. •... -
Page 4: Bathroom Zones
BATHROOM ZONES Zone 0: The interior of the bathtub or shower basin. The area around the bathtub or shower Zone 1: basin up to a height of 2.25m above the floor The area stretching to 0.6m outside the bath Zone 2: or shower and above the bath or shower if over 2.25m... - Page 5 PARTS LIST D6 WALL PLUG x4 SCREW x4 MIRROR x1 TOOLS NEEDED FOR INSTALLATION TAPE ELECTRIC MEASURE DRILL SPIRIT FLAT HEAD LEVEL SCREWDRIVER HAMMER...
-
Page 6: Product Overview
PRODUCT OVERVIEW LIGHT BAR ON/ OFF TOUCH BUTTON INSTALLATION IMPORTANT: Before commencing installation, ensure that there are no pipes or wires located behind the wall that you will be drilling into. • Ensure that the hanging location has been decided upon and marked clearly to avoid unwanted damage in the wall due to incorrect positioning. - Page 7 HANGING THE MIRROR The mirror comes with the option of hanging in a landscape or portrait position. At the back of the mirror, there are 4 key holes 2 on the vertical side and 2 the horizontal side. To hang the mirror, you will need to drill two holes into the wall, ensuring that no wires or pipes are behind the wall before commencing.
-
Page 8: Connecting The Mirror
CONNECTING THE MIRROR To connect your mirror, it must be first be connected to the mains supply. IMPORTANT: Installation must only be carried out by a qualified professional or electrician. At the back of your mirror is a length of 3 core cable which is connected to the mirror. -
Page 9: Operation
OPERATION When the mirror is connected and hung securely onto the wall, turn the mains power back on and the mirror will be ready to use. To operate, use the touch button on the front of the mirror, it is located at the bottom. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATION Model BeBa_27532 BeBa_27533 BeBa_27534 BeBa_27535 WxHxD (mm) 900x700x55 1200x600x55 500x700x55 600x800x55 Net Weight 10.5 (Kg) Power Cord length (cm) Rated Power Input 220 V - 240 V 50 Hz This product contains a light source of energy efficiency class F. DISPOSAL Recycling facilities are now available for all customers at which you can deposit your old electrical products.
