- Page 1 USER’S OPERATION MANUAL Before operating this unit, please read this manual thoroughly, and retain for future reference RB440N4ACA English...
-
Page 3: Table Of Contents
Contents Safety and warning information...2 Using your appliance......19 Helpful hints and tips......21 Installing your new appliance....9 Cleaning and care......22 Reversing the door......10 Troubleshooting....... 23 Description of the appliance....14 Disposal of the appliance....25 Display controls........ 15 Safety and warning information For your safety and correct usage, before installing and first using the appliance,read this user manual carefully, including its hints and warnings.To avoid unnecessary... - Page 4 (including children) with reduced physical,sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety. Children should be supervised to ensure that they do not ●...
- Page 5 qualified persons in order to avoid a hazard. WARNING — Keep ventilation openings,in the appliance ● enclosure or in the built-in structure,clear of obstruction. WARNING — Do not use mechanical devices or other ● means to accelerate the defrosting process,other than those recommended by the manufacturer.
- Page 6 The refrigerant (R600a) is flammable. WARNING — Refrigerators contain refrigerant and gases ● in the insulation.Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
- Page 7 phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope,for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge.The fridge must employ a special power socket instead of common one with other electric appliances.
- Page 8 The appliance is intended for keeping food stuff and/or ● beverages in normal household as explained in this instruction booklet.You should take care when move it as the appliance is heavy. Do not remove or touch items from the freezer ●...
- Page 9 it.In this case retain packing. It is advisable to wait at least four hours before ● connecting the appliance to allow the oil to flow back in the compressor. Adequate air circulation should be around the appliance, ● lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
-
Page 10: Installing Your New Appliance
Installing your new appliance Before using the appliance for the first Note: time, you should be informed of the This appliance performs well within ● following tips. the climate class from SN to showed in the table below.It may not Ventilation of appliance work properly if being left at a In order to improve efficiency of... -
Page 11: Reversing The Door
Reversing the door The side at which the door opens 2.Remove part ①, loose part ② from can be changed, from the right side the top right side of refrigerator. (as supplied) to the left side, if the installation site requires. ①... - Page 12 4. Remove the upper door from the 6.When the refrigerator with a middle hinge by carefully lifting the display on door, remove part from ① door straight up. Then place the the top left side of upper cover and upper door on a smooth surface with take out part ②...
- Page 13 ① ② ③ ④ ⑤ ① Lower hinge part (right) ② Adjustable bottom feet part ③ Adjustable bottom feet part ④ Self-tapping screws ⑤ Adjustable bottom feet part 9. Place the lower door on a smooth Remove part ③ from the lower surface with its panel upwards.
- Page 14 part ② by screws ① .Before fix part ② ① electrical connector pass connector ③ through hinge ② ② upper hinge cover refer to step 3. (Please hold upper ③ self tapping screw door by hand when installing) MODEL WITH DISPLAY 17.
-
Page 15: Description Of The Appliance

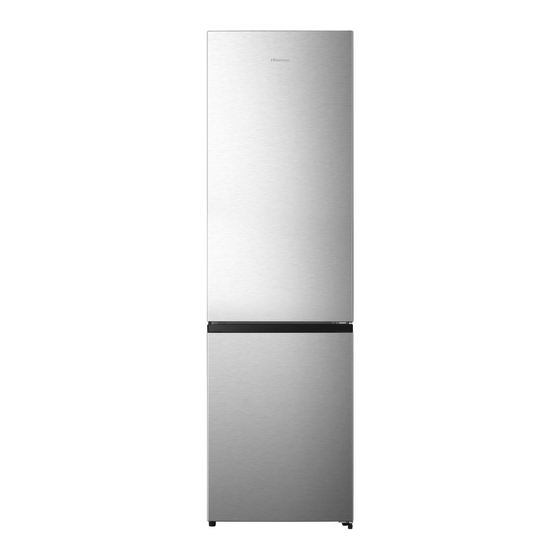

Description of the appliance 1.Cabinet R efrigerator door 2.LED light R efrigerator door gasket 3.Wine shelf(alternative) U pper rack(X3) 4.Glass shelves 5. Upper fresh box 6. Fresh box cover 7. Lower fresh box 8.Upper drawer 9.Middle drawer 10.Lower drawer 11.Adjustable feet Note: Due to unceasing modification of our products,some parts of your ●... -
Page 16: Display Controls
Display controls Display panel inside door display panel will display corresponding User your appliance according to the values according to the following following control regulations, your sequence. appliance has the corresponding Note: When the“ ” is lighted, the holiday functions and modes as the display mode is activated. - Page 17 appliance by press this button. Press “ ” for 3 seconds, after a ● buzzer sound, the appliance will be turned off. Press “ ” for1seconds, after a ● buzzer sound, the appliance will be turned o . Demo mode Demo mode is for store display,and it prevents the refrigerator from generating cool air.
- Page 18 Display controls Display panel on door to the following sequence. Freezer Press “ZONE CHOICE”, when the “ ” light turns on. Then press “SET TEMP ”, you can set freezer temperature between -14°C and -24°C as needed, and the display panel will display corresponding value according to the following sequence.
- Page 19 activated, the light will be illuminated. The Alarm freezer temperature will be set at -17°C When the door of fridge has been ● and the fridge temperature will be set at opened for over 2 minutes, the door alarm 6°C. will sound.
-
Page 20: Using Your Appliance
Using your appliance Your appliance is supplied with a fridge temp. storage period slide bar food number of accessories and this section describes how best to use left most vegetables <5 days 2°C them. right most <3 days 2°C fish&meat Door rack 5°C left most... - Page 21 Flexible wine rack It is for storing bottled wine or drinks, ● and it can be taken out to clean. Freezer Drawer It is used to store food which needs to be ● frozen, including meat, fish, ice cream, etc. Ice cube tray It is used to make ice cubes.
-
Page 22: Helpful Hints And Tips
Helpful hints and tips Energy saving tips Milk bottles: ● We recommend that you follow the tips Should have a lid and be stored in the below to save energy. door racks. Try to avoid keeping the door open for ●... -
Page 23: Cleaning And Care
Cleaning and care For hygienic reasons the appliance defrosts, a layer of frost may occur on the (including exterior and interior freezer compartment’s interior walls if the accessories) should be cleaned regularly freezer door is opened frequently or kept (at least every two months). open too long.If the frost is too thick, choose a time when the freezer is nearly Warning! -
Page 24: Troubleshooting
Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service,please see below. Warning! Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. - Page 25 Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow A layer of frost occurs sufficient ventilation.Ensure that door is fully closed.To in the compartment remove the frost, please refer to the“Cleaning and care” chapter.
-
Page 26: Disposal Of The Appliance
Disposal of the appliance It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. - Page 27 Note: please store different foods according to the compartments or target storage temperature of your purchased products. - If the refrigerating appliance is left empty for long periods,switch off,defrost, clean,dry, and leave the door open to prevent mould developing within the appliance. Hisense Service Help Line:0191 387 0804...
- Page 28 Hisense UK Ltd Ground floor Munroe Court White Rose Office Park Millshaw Park Lane Leeds LS11 0EA ４２９７３６３...
