Aqua Creek Products F-045SCH-03 Instructions Manual

24v solar charger
Hide thumbs

Advertisement

Quick Links

Download this manual
9889 Garrymore Ln
Missoula, MT 59808
888-687-3552 | +1-406-549-0769
www.aquacreek.com
Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's
warranty and may affect the safety of the user.
Copyright © 2019 Aqua Creek Products All Rights Reserved

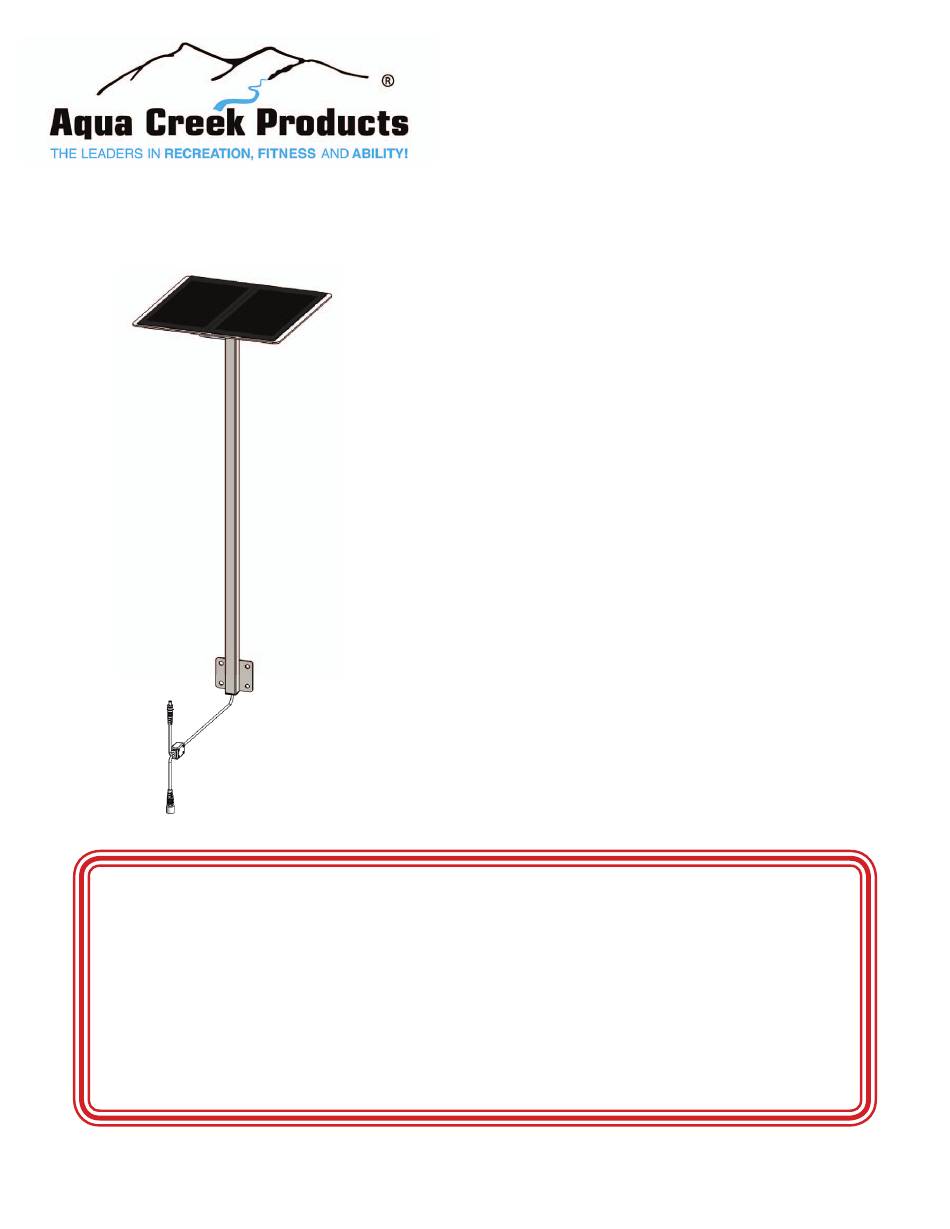

24V Solar Charger
(For use with Revolution, Scout and Titan)
Lift safety can only be ensured if the lift is installed and
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
supervision
• NEVER apply direct water pressure to the electronics
• NEVER use the lift with a dry pool
READ CAREFULLY
Instructions
PART #: F-045SCH-03
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
Read and follow all instructions.
operated according to these instructions.
1
Revised 9/10/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-045SCH-03 and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua Creek Products F-045SCH-03

Summary of Contents for Aqua Creek Products F-045SCH-03

  • Page 1 It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
  • Page 2 To install the 24V Solar Charger, remove the four (4) 3/8” Nylock nuts and fl at washers from the lift as shown, and install the charger. The control box connector plugs directly into the control box as shown above and on page 8. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 3 TO OPEN THE CONTROL BOX “TORX” T20 DRIVER FOR USE A TORX T20 DRIVER OPENING CONTROL-BOX REMOVE THE FOUR (4) SCREWS FROM THE TOP OF THE CONTROL BOX: LEAVE SCREWS IN HOLES Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 4 REMOVE THE COVER AND PLACE ON TABLE RIGHT-SIDE UP: NOTE POSITION OF EMERGENCY-SWITCH CAP USE A “TORX” T10 DRIVER TO REMOVE THE THREE (3) SCREWS FROM THE CONTROL BOARD Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 5 Control Box Modification Instructions REMOVE THE CONTROL BOARD FROM THE CONTROL BOX USE SCREWDRIVER, AND MALLET IF NECESSARY, TO PUNCH-OUT AND REMOVE PLASTIC-DISC ON 24V INPUT/OUTPUT PORT Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 6 PLACE THE CONTROL BOARD BACK IN PLACE INSIDE THE CONTROL BOX RETURN THE THREE (3) SCREWS TO SECURE REPLACE THE EMERGENCY-SWITCH CAP WITH THE CONTROL BOARD BACK IN PLACE “ARROW” POINTING DOWN AS SHOWN Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 7 Control Box Modification Instructions PUT COVER ON AND REINSTALL SCREWS TEST EMERGENCY-SWITCH WITH DRIVER, LISTEN FOR “CLICK” Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 8 When installed properly the battery will charge as the lift operates simultaneously. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 9 CHARGER CABLE to the male end of the CONTROL BOX. See pictures below. NOTE: Make sure all plugs are fully engaged, the lights on the solar charger come on and that the lift functions correctly. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...

  • Page 10: Charge Controller

    The 24V Solar Charger will continue to charge the battery, even as the lift is being used. So once the 24V Solar Charger has been installed it will function without any need for adjustment. The user should check the indicators periodically to make sure it is working. Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 11 Scotch-Brite pad and then apply dielectric grease (supplied with lift) as shown in the figure below. Clean with alcohol and a cotton swab and apply dielectric grease to terminals Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 12 BOLT, 316 SS, 3/8-16 X 3 3/4 HCS NN 3/8 NUT, 316 SS, NYLOCK, 3/8-16 SQR-1-14-20 CAP, PLASTIC, 1 X 1 SQUARE 00918174 LINAK DUMMY PLUG FOR DC PORT Copyright © 2019 Aqua Creek Products All Rights Reserved Revised 9/10/19...
  • Page 13 (ITEM #’s F-043SCH, F-044SCH, F-045SCH, F-046SCH, F-047SCH) Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions and properly used and maintained, shall be...
