Installation and mounting manual for EK-FC780 GTX Classy Rev.2.0
Backplate
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
www.ekwb.com
for updates. Before
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

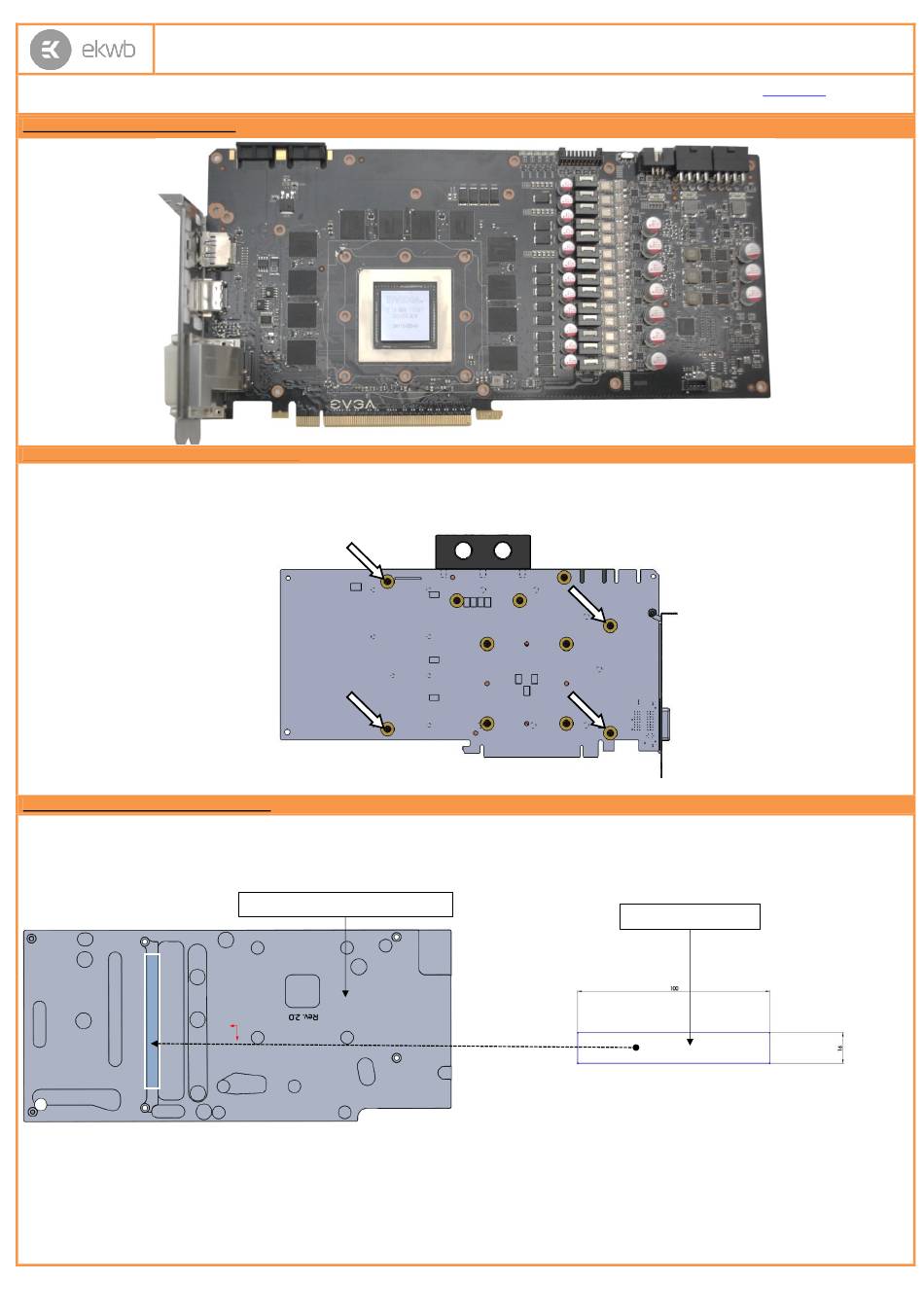

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce 780 GTX Classified graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
EK-FC780 GTX Classy Backplate Rev.2.0 is very easy to install. First install EK-FC780 GTX Classy series water block according to its installation
manual. If you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are
to be removed. Please remove the four (4) M3x4 DIN7985 screws and their washers (marked with arrow).
STEP 3: APPLYING THE THERMAL PADS
EK-FC780 GTX Classy Backplate Rev.2.0 features passive cooling of the printed circuit board and it's components therefore it is mandatory to install
the enclosed thermal pad. Please install enclosed 1mm thick thermal pad (Thermal Pad A – 1mm (100x16)) as shown on the picture below. You may
need to trim the excess thermal pad.
EK-FC780 GTX Classy Backplate Rev.2.0
Thermal PAD A 1mm
th
All disclosures, notices and warranty conditions are being written on the back of the box.
Revision 1.0. Released on 8
of October, 2013.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ekwb EK-FC780 GTX Classy Rev.2.0 Backplate
Summary of Contents for ekwb EK-FC780 GTX Classy Rev.2.0 Backplate
- Page 1 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
- Page 2 STEP 4: ATTACHING EK-FC780 GTX Classy BACKPLATE Rev.2.0 TO THE GRAPHICS CARD Take enclosed mounting screws and install them as shown on picture below. EKWB recommends users to start with four (4) M3x8 DIN 7991 and two (2) M3x4 DIN7985 (HINT: do not tighten screws until they are all positioned in their mounting holes) in the middle of the card and then continue outwards.
