HDMI 1
or
HDMI 2
Y/VIDEO
AV/COMPONENT
Pb/Cb
IN
Pr/Cr
L
PC/AV/COMPONENT
AUDIO IN
R
VGA
ANTENNA IN

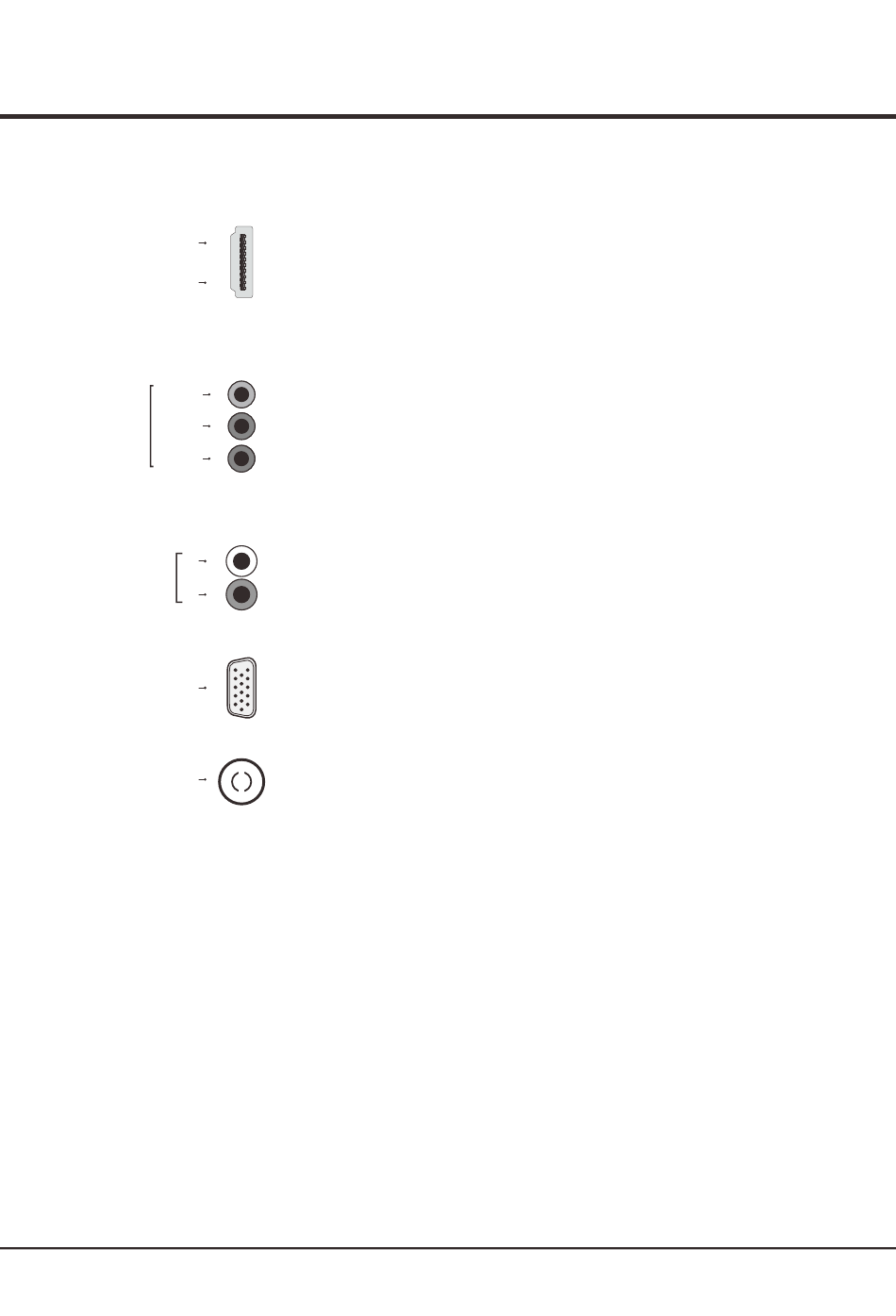

HDMI1 and HDMI2 socket (input)
The HDMI (High-Definition Multimedia Interface) socket
PC with a compatible video card installed, certain DVD players or a high-definition
compatible digital satellite decoder. This socket p
connection that carries both video and audio data by way of an integrated mini-plug
cable.
YPbPr/VIDEO component sockets (input)
These Y/VIDEO sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the device
you're connecting to is Y Pb Pr compatible or Y Cb Cr compatible. The component
sockets provide excellent picture quality because the video is separated into three
separate parts.
PC/ AV/ COMPONENT AUDIO IN
These AUDIO IN L & R sockets can be used to connect a range of equipment,
including video recorders, camcorders, satellite receivers, DVD players, or games
consoles. AUDIO IN sockets are shared by AV, VGA and YPbPr sockets.
VGA socket (input)
This socket can be used to connect a computer.
Note: The VGA is same as the PC
ANTENNA IN socket (input)
This socket can be used to connect the outside aerial.(including the analog signal
and the digital signal)
