General Description
This document describes the SLA7070MPRT series,
which are unipolar 2-phase stepping motor driver ICs. The
SLA7070MPRT series employs a clock input method as
a control signal input method, enabling full control of the
device operation using only a few signal lines, instead of
the conventional phase input method that requires about 10
signal lines. This allows simplification of the circuit design
and a reduced workload on the control microprocessor.
In addition, the SLA7070MPRT series is improved in its
reliability by preventing the IC from damage due to abnor-
mal conditions. For example, it has a flag output terminal
to signal that a protection circuit has operated. The series
also has a built-in protection circuitry against motor coil
opens/shorts and thermal shutdown protection as well.
All the SLA7070MPRT series ICs are compatible in their
pin layouts and interface specifications, allowing custom-
ers the flexibility of choosing the IC that is optimal for the
target equipment characteristics.
Features and Benefits
• Power supply voltages, V
BB
normal operating range
• Logic supply voltages, V
DD
• Maximum output currents: 1 A, 1.5 A, 2 A, 3 A
• Built-in sequencer
• Full-, half-, and microstepping available (microstepping
options are capable of full-, half-, quarter-, eighth-, and
sixteenth-stepping
The SLA7070MMPR series product variants and optional features
Part Number
SLA7070MPRT
SLA7071MPRT
SLA7072MPRT
SLA7073MPRT
SLA7075MPRT
SLA7076MPRT
SLA7077MPRT
SLA7078MPRT
SLA7070MPRT-AN, Rev. 2
January 10, 2013
SLA7070MPRT Series Unipolar 2-Phase
: 46 V (max.), 10 to 44 V
: 3.0 to 5.5 V
Output Current
Stepping
Rate
Full and
half step
Microstep
SANKEN ELECTRIC CO., LTD.
http://www.sanken-ele.co.jp/en/
Application Information
Stepper Motor Driver ICs

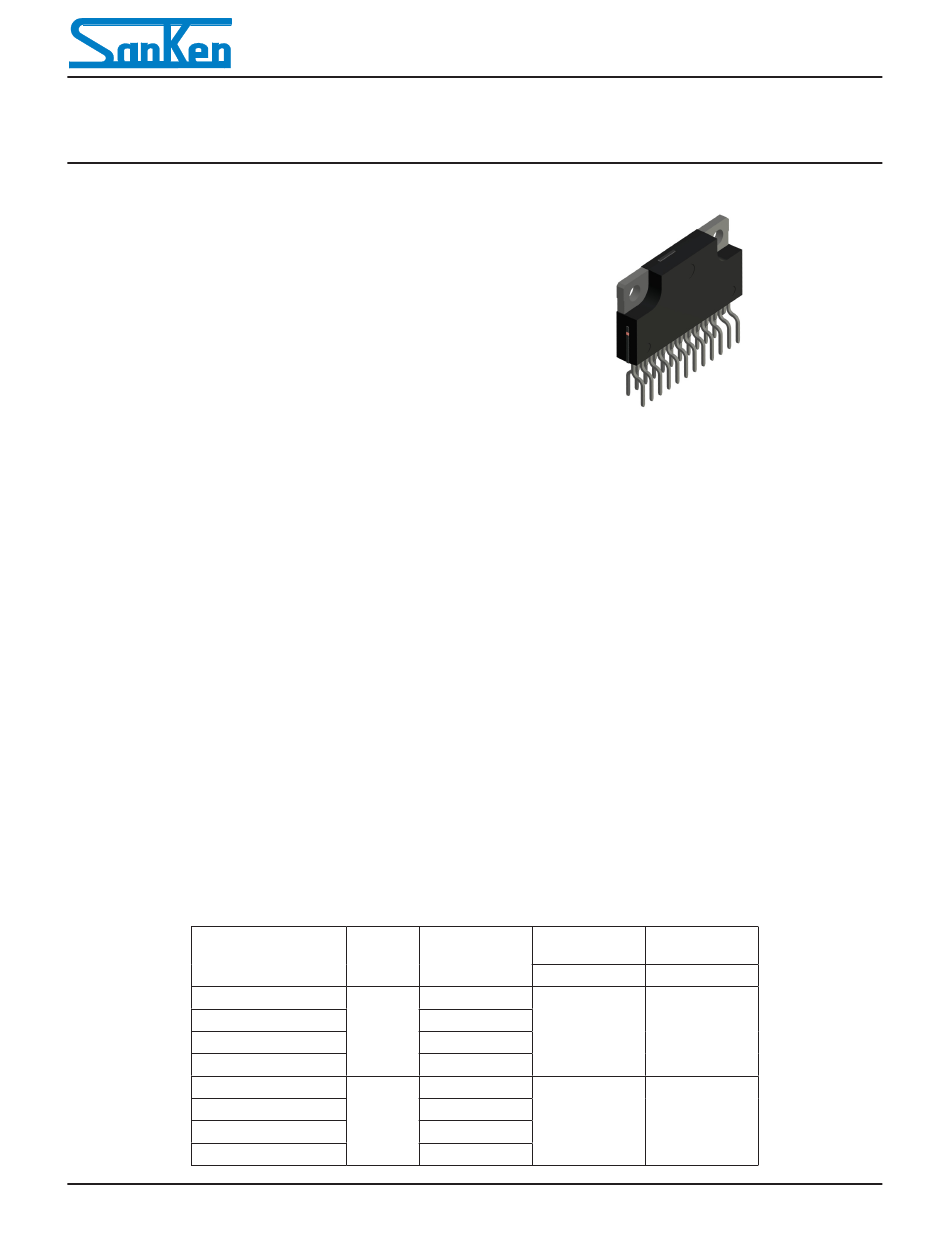

Figure 1. SLA7070MPRT packages are fully molded ZIPs with an
exposed pad for heatsink mounting.
• Built-in sense resistor, R
• All variants are pin-compatible for enhanced
design flexibility
• ZIP type 23-pin molded package (SLA package)
• Self-excitation PWM current control with fixed off-time
(microstepping options off-time adjusted automatically by
step reference current ratio; 3 levels)
• Built-in synchronous rectifying circuit reduces losses at
PWM-off
• Synchronous PWM chopping function prevents motor
noise in Hold mode
• Sleep mode for reducing the IC input current in
stand-by state
• Built-in protection circuitry against motor coil
opens/shorts and thermal shutdown protection options
Applications
• LBPs, PPCs, ATMs, industrial robots, and so forth
Input Clock
Edge Detection
(I
)
OUT
(A)
Standard
1
1.5
Rising (positive)
edge
2
3
1
1.5
Rising (positive)
edge
2
3
SInt
Blanking Time
(µs)
Standard
3.2
1.7
