Crate BFX100T User Manual

Professional, transportable bass amplifier with digital signal processing
Hide thumbs

Advertisement

Quick Links

BFX100T
Congratulations!

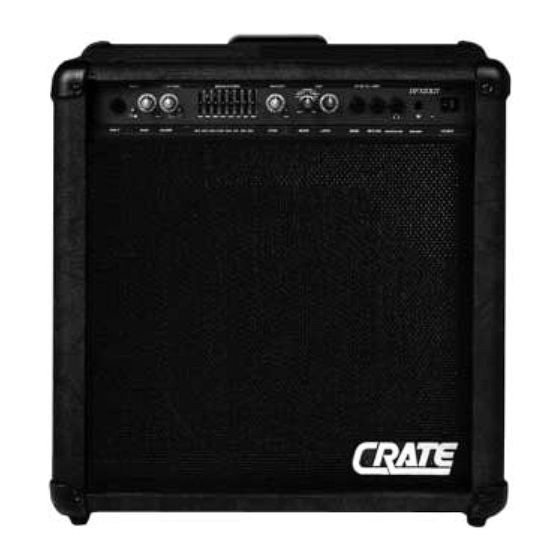

You are now the proud owner of the professional, transportable Crate BFX100T
Bass Amplifier with Digital Signal Processing. The BFX100T offers a wide selection
of digital effects designed specifically for the bass guitar, each of which are easily
accessed with a simple turn of a control knob. The BFX100T features an extended
range low frequency driver, a dome tweeter, an extremely clean power amp, and
an 8-band graphic equalizer. The balanced line out jack has a level control for pre-
cisely matching the signal to a recording console or house PA system, and is selec-
table for either pre or post EQ. The built-in limiter ensures pure, clean power even
at its full 100 watts output. An effects loop, a jack for headphones, and a jack for
an external speaker add to the overall versatility of the amplifier. The compact cab-
inet features heavy duty recessed side handles, recessed rear wheels, removable
tilt-back support peg and retractable luggage style roll-around handle.
Like all Crate products, your BFX100T is designed by musicians, and built
using only the best components. Extensive testing confirms that this amplifier is the
absolute best it can be.
In order to get the most out of your new amplifier, we strongly urge you to read
the information contained in this manual before you begin playing.
And thank you for choosing
Professional,
Transportable

Bass Amplifier

with
Digital Signal
Processing

Advertisement

loading

  Related Manuals for Crate BFX100T

  Summary of Contents for Crate BFX100T

  • Page 1: Bass Amplifier

    The BFX100T features an extended range low frequency driver, a dome tweeter, an extremely clean power amp, and an 8-band graphic equalizer.
  • Page 2: Table Of Contents

    BFX100T Table of Contents: Using the Transport Handle ..... .3 Using the Tilt-Back Peg ......3 The Front Panel .
  • Page 3: Using The Transport Handle

    BFX100T Using the Transport Handle: (1) Squeeze the handle together just below the attachment bracket (2) Lift the lower end of the handle up and out in an arcing motion (3) Lock the handle into the attachment bracket in its upright position...
  • Page 4: The Front Panel

    BFX100T The Front Panel: INPUT 1. INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shielded instrument cable. 2. -15dB/0dB SWITCH: This switch, when depressed, attenuates the level of the input signal by 15dB. If the Peak LED (#4) flashes with the Gain control (#3) near fully counter clockwise, depress this switch.
  • Page 5 BFX100T 11. DSP LEVEL: Use this control to adjust the amount of digital effect: in its full counter clockwise posi- tion the signal will be “dry” (without any effect). As you rotate the control clockwise the amount of effect increases.
  • Page 6: The Rear Panel

    BFX100T The Rear Panel: 18. FUSE: The fuse protects the amplifier from damages caused by a faulty AC power source and/or other problems. If the fuse opens, replace it ONLY with the same size and type. If fuses continue to fail, check the AC source –...
  • Page 7: Suggested Settings

    BFX100T Suggested Starting Tone Settings: ROCK: CONTOUR JAZZ: CONTOUR COUNTRY: CONTOUR FUNK: CONTOUR System Block Diagram: INPUT CONTOUR GAIN SHAPE -15dB PAD PEAK POST BAL. LINE OUT LEVEL Professional, Transportable Bass Amp with DSP EQUALIZATION EQUALIZATION IN IN EQUALIZATION IN IN...
  • Page 8 Power Requirements Size and Weight The BFX100T is covered with a durable black Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish. Crate continually develops new products, as well as improves existing ones. For this reason, the specifications and information in this manual are subject to change without notice.
