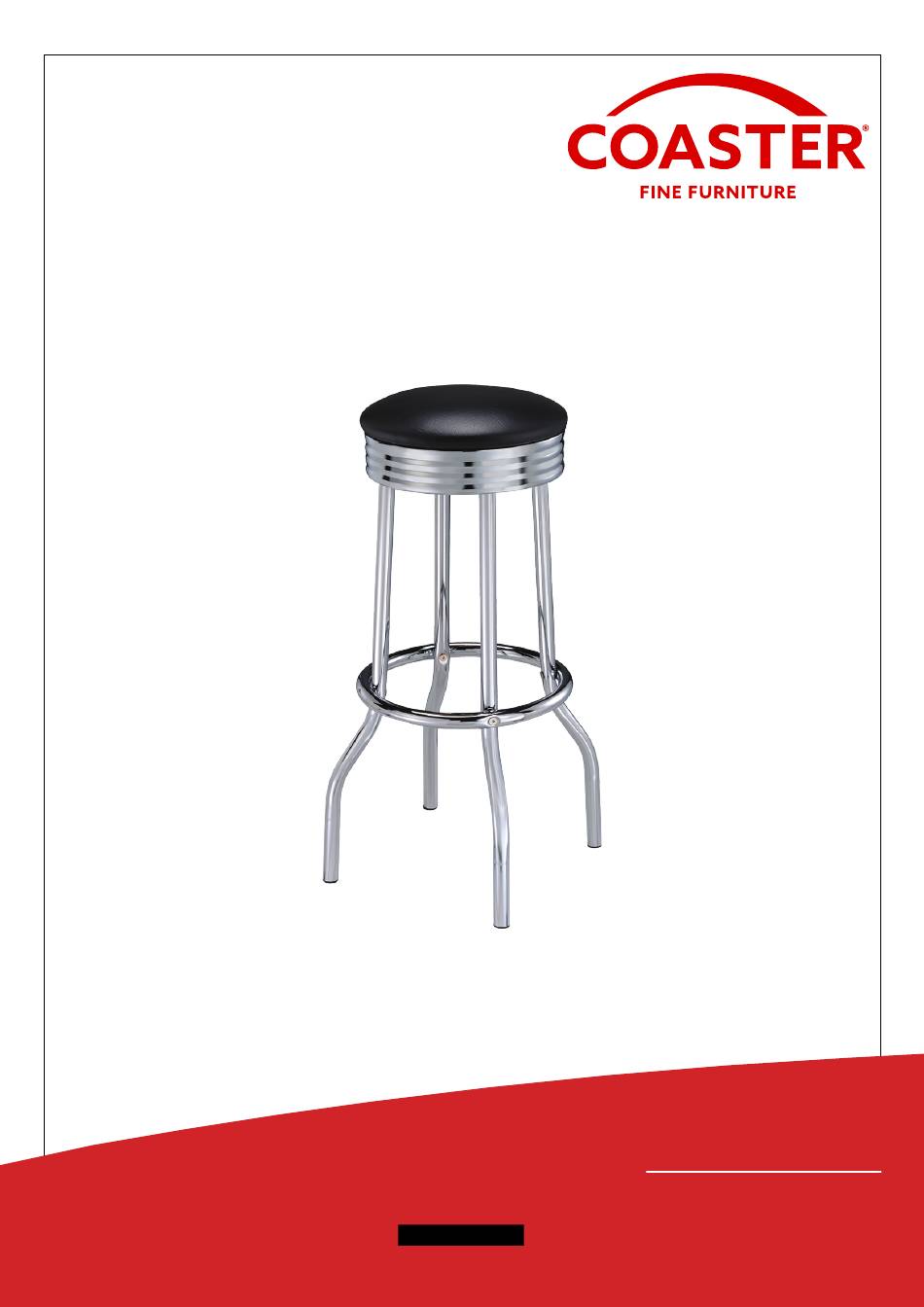

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 2408 Bar Stool REVISION 0: 04/02/2018 REVISION 1: 08/08/2022 PAGE 1 OF 6 COASTERFURNITURE.COM...
- Page 2 2408 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
- Page 3 2408 ITEM: HARDWARE IDENTIFICATION ALLEN BOLT-LARGE (1/4" x 1-1/2"L - SR) 8PCS ALLEN BOLT-SMALL (1/4" x 3/4"L - SR) 4PCS SCREW TUBE (1/4" x 5/8"L - SR) 4PCS WASHER (Φ18mm - SR) 4PCS HEX NUT (5 x 10H mm - SR) 4PCS PLASTIC END CAP (Φ25 x 22mm - BLK)
- Page 4 2408 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 2408 ITEM: ASSEMBLY INSTRUCTIONS STEP 4 STEP 3 STEP 5 COMPLETE PAGE 5 OF 6 COASTERFURNITURE.COM...
- Page 6 2408 ITEM: PAGE 6 OF 6 Note : Dimension tolerance ±5% COASTERFURNITURE.COM...
