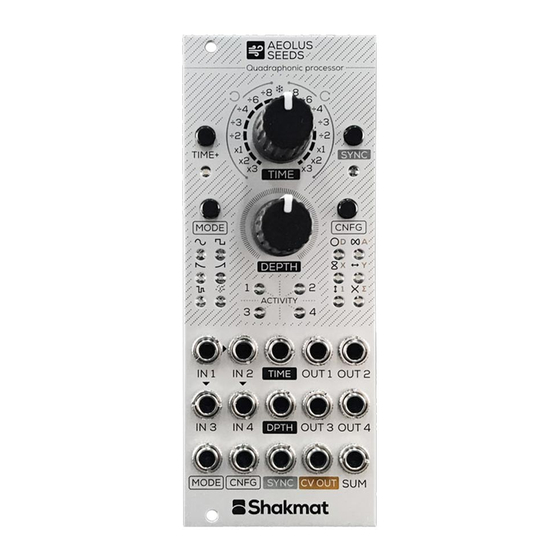

- Page 1 Shakmat Aeolus Seeds 10HP Eurorack Module Built & designed in E.U. www.shakmat.com...
-
Page 3: Installation
As well as an obvious tool for quadraphonic spatialisation, Aeolus Seeds is also a useful device for vector synthesis, thanks to its Sum output. The CV output also pushes the exploration further by providing signals to other modules, enabling you to breathe more life into the sound spatialisation of a quad environment. - Page 4 CV input [4]. The inputs of the Aeolus Seeds are normalised as such: IN 1 goes to IN 2, 3 & 4 while IN 2 goes to IN 4. This normalisation allows you to easily turn a mono signal (using only IN 1) or a stereo signal (using IN 1&...
- Page 5 Modes The type of modulation generated by the Modulators is set by a dedicated button and LED menu [F]. Pressing this button will cycle through the 6 modes from left to right and top to bottom. The mode is also selectable via CV by using the Mode input [5]. Quadrature Sine Square LFO In this mode, each VCA is...
- Page 6 Configurations The configuration sets the way the VCAs are successively adressed by the Modulators. In practice, it defines the path the sound is taking through the quadraphonic space. The dedicated button and LED menu cycle through the configurations from left to right and top to bottom. Those configura- tions are also accessible via CV by using the CNFG input [6].
- Page 7 CV Output The Aeolus Seeds has a specific CV output that is assignable to different parameters of the Modulators. To select the type of CV signal you want, hold the CNFG button for two seconds (until the LED menu starts blinking), then navigate through the menu by clicking the CNFG button.
-
Page 8: Additional Modes
Additional Modes In addition to the 6 main modes, the Aeolus Seeds offers 6 utilitarian modes that are accessed by holding the Mode button down for 2 seconds. In those additional modes, there are no configurations available and the Mode and CNFG CV inputs are disabled. - Page 9 Sum output The sum output of the Aeolus Seeds provides a mix of the four outputs. This feature opens the module to a whole new range of applications such as modulated mixing, automated morphing and vector synthesis. For example, the inputs can be fed 4 waveforms coming form an analog VCO, allowing for automated morphing of those waveforms.
-
Page 10: Specifications
Specifications Size CV Inputs 10 HP -5 to 5V Depth CV Output 29 mm 0 to 8V Current Draw Analog Inputs & Outputs 65 mA @ +12V -10 to +10V 20 mA @ -12V www.shakmat.com...
