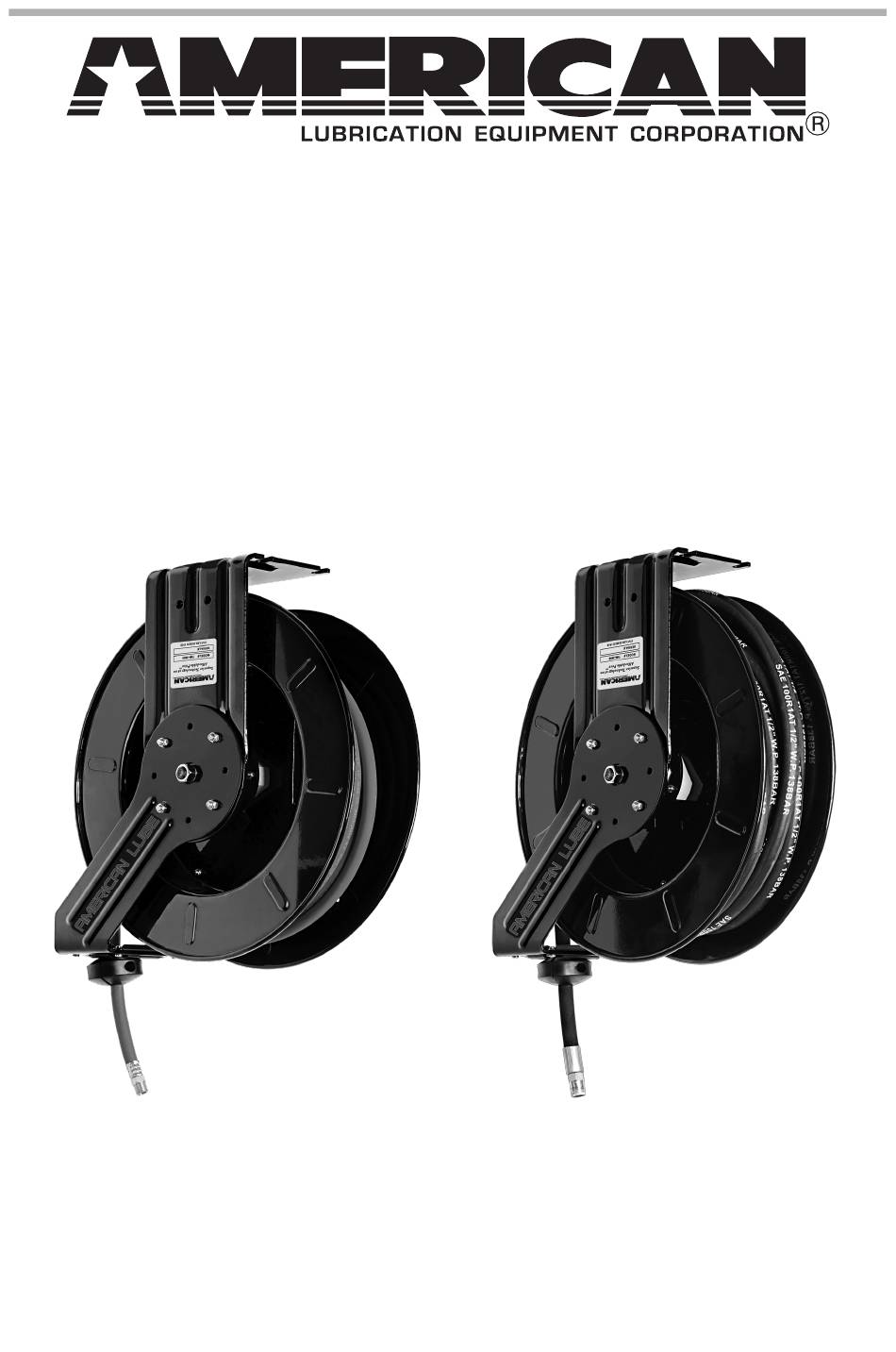

- Page 1 AMERICAN LUBRICATION EQUIPMENT CORPORATION 11212A MCCORMICK ROAD, HUNT VALLEY, MD 21031 WWW.AMERICANLUBE.COM CONTACT: 410-252-9300 TIM-3600 SERIES ADVANTAGE PLUS HOSE REEL MANUAL Low Pressure Medium & High Pressure Red Hose Black Hose Superior Technology at an Affordable Price ®...
- Page 2 WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 3 10. Apply Teflon tape to outlet fitting on reel hose, then attach to desired tool or nozzle. Check connection for leakage, also check hose reel for correct operation. (Details see Operation section.) 11. If hose stop adjustment is required, pull hose from reel and latch the reel at desired length. Loosen hose stop bolts and slide hose stop to a position close to the hose guide.
- Page 4 Replacement of Hose CAUTION: Bleed the line pressure from the supply line before working on the reel. Pull out all the old hose and lock the reel. CAUTION: Make sure the reel drum is securely locked and cannot retract. Remove the two hose clamps from the hose. CAUTION: Carefully disconnect the hose from the swivel joint on the side of the reel, or the male fitting in the axle center and remove the old hose.
- Page 5 EXPLODED PARTS DIAGRAM...
- Page 6 PARTS LIST Qty. Description Part Number Swivel Assembly Reel Swivel Assembly, order: TIM-3600-32 TIM-3616-xx TIM-3618-xx TIM-3600-34 NOTE: Swivel seal kit, TIM-OILSWIV-KIT TIM-3628-xx TIM-3600-34 NOTE: Swivel seal kit, TIM-OILSWIV-KIT TIM-3636-xx TIM-3600-36 Hose, Delivery Reel Delivery Hose, order: TIM-3616-50 AIR-HP3838-50 TIM-3616-50A TIM-4216-50A TIM-3616-65 AIR-HP3838-65 TIM-3616-65A...
- Page 7 TIM-3600-14 Ratchet Assembly Replacement Procedure 1. Remove fluid pressure. 2. Pull 3’ of hose out of reel. 3. Remove control handle, hose stop, etc. 4. Relieve all recoil spring tension by slowly retracting the hose into the reel. 5. Remove swivel retaining ring and spacer. 6.
- Page 8 Mounting Hole Dimensions L = 5-63/64"; M = 3-15/16" Size Index Chart Mount L-M 8-7/16" 21-1/2" 20-5/8" 6-3/32" 7-3/32" 5-63/64" x 3-15/16" 14' maximum mounting height 3.02.02.055 REV 10/26/22...
