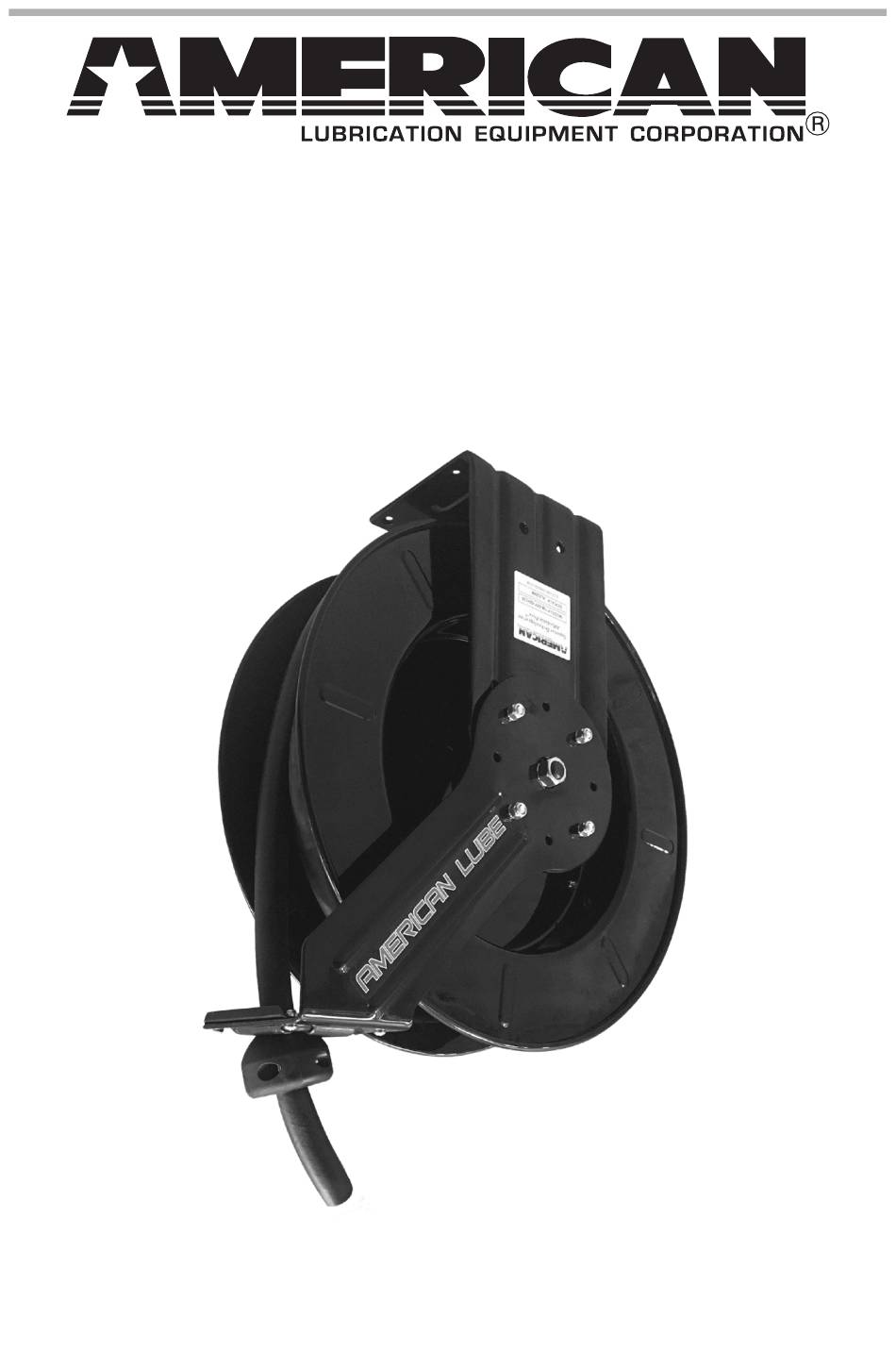

- Page 1 AMERICAN LUBRICATION EQUIPMENT CORPORATION 11212A MCCORMICK ROAD, HUNT VALLEY, MD 21031 WWW.AMERICANLUBE.COM CONTACT: 410-252-9300 DEF-52H33S REEL MANUAL Superior Technology at an Affordable Price ®...
- Page 2 WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 3 11. If hose stop adjustment is required, pull hose from reel and latch the reel at desired length. Loosen hose stop bolts and slide hose stop to a position close to the hose guide. Tighten stop bolts and unlatch the reel. Wall Floor Ceiling...
- Page 4 CAUTION: Carefully release the drum latch and slowly allow the hose to wind onto the reel. NOTE: Final spring adjustment is accomplished by adding or removing wraps of hose around the drum. (Details see Adjustment of Spring Tension). SPRING CANISTER WARNING WARNING: If the rewind spring fails the manufacturer strongly recommends the replacement of the spring canister by a factory approved service center.
- Page 5 EXPLODED PARTS DIAGRAM...
- Page 6 DEF-52H33S PART LIST Description Qty. Part Number DEF-52H-SWV Swivel Assembly DEF-33FHS Hose, Delivery Clamp TIM-CLAMP-18 Locking Ring TIM-3600-16 Axle Stud No part number (M10 x 1.5 x 30mm) Ratchet Assembly TIM-3600-14 Note: Latch spring is included in the Ratchet Assembly but is also sold...
- Page 7 TIM-3600-14 Ratchet Assembly Replacement Procedure 1. Remove fluid pressure. 2. Pull 3’ of hose out of reel. 3. Remove control handle, hose stop, etc. 4. Relieve all recoil spring tension by slowly retracting the hose into the reel. 5. Remove swivel retaining ring and spacer. 6.
- Page 8 Mounting Hole Dimensions L = 5-63/64"; M = 3-15/16" Size Index Chart Mount L-M 8-7/16" 21-1/2" 20-5/8" 6-3/32" 7-3/32" 5-63/64" x 3-15/16" 14' maximum mounting height REV 11/03/22...
