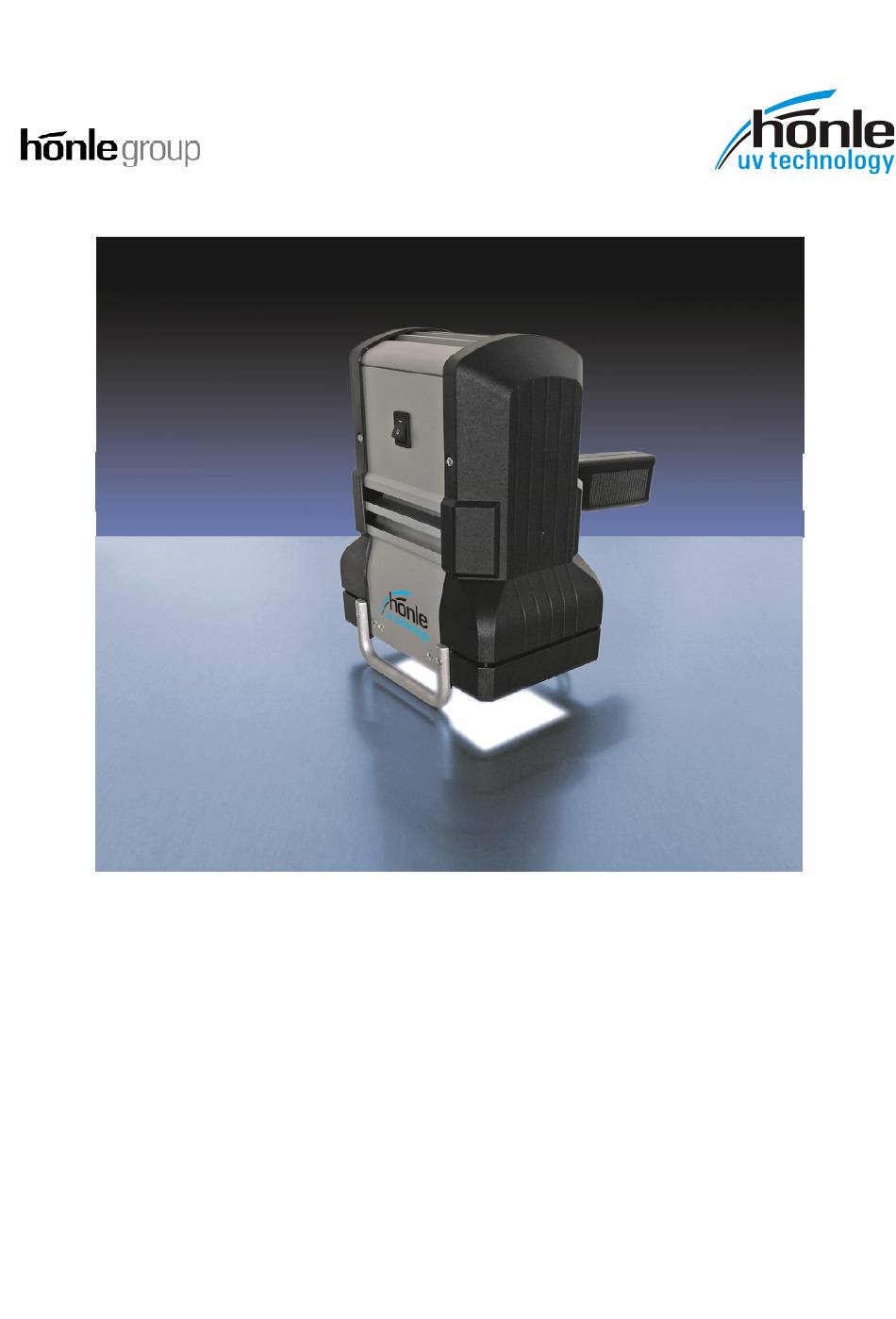

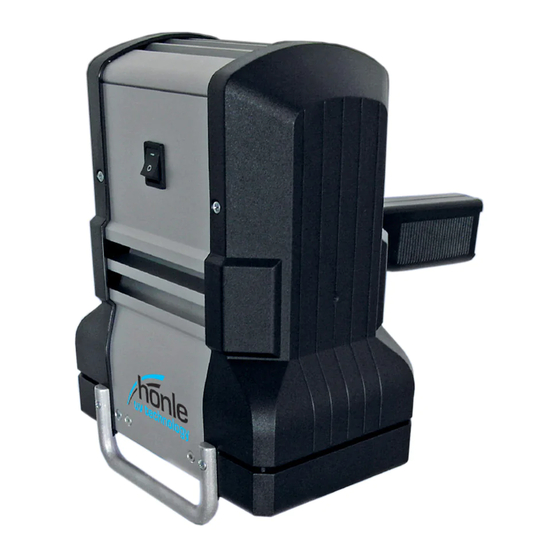

- Page 1 Operating Manual UVAHAND LED # 73350a...
- Page 2 UVAHAND LED # 73350a...
- Page 3 UVAHAND LED Copyright All rights reserved Copyright by Dr. Hönle AG Lochhamer Schlag 1 82166 Gräfelfing / München Printed in Germany, October 2014 No part of this operating manual may be reproduced in any form without the prior written permission of the Dr. Hönle AG.
-
Page 4: Table Of Contents
Installation, setting-up, commissioning and operation ......15 General information ..................15 Commissioning ....................15 Switching the UVAHAND LED ON/OFF ............15 Servicing, maintenance and cleaning ............16 Maintenance ....................16 Replacing the protective glass unit ............... 16 ... -
Page 5: Warning Notes And Symbols In The Operating Instructions
UVAHAND LED 1. Warning notes and symbols in the operating instructions These operating instructions describe the UVAHAND LED, its operation and its uses. The safety and warning notices explain the safe, proper handling of the device. You will find the symbols listed below next to all safety and warning instructions in these operating instructions where there is danger to life and limb. -
Page 6: Description
2. Description The UVAHAND LED is a high-intensity, mobile hand-held UV-lamp. Its intensive radiation ensures reliable production results within seconds. A homogeneous intensity distribution is guaranteed by the arrangement of the LEDs. The device is available with emitted wavelengths of 365 or 405 nm +- 10 nm. -
Page 7: Safety Information
Any other or additional usage is regarded as improper use, and is thus danger- ous. The UVAHAND LED must not be used for medical or therapeutic purposes, for skin-tanning, or in other medical equipment. The operator must operate the unit only in accordance with the usage notes in these operating instructions. -
Page 8: Warranty And Liability
Improper use of the UVAHAND LED Incorrect assembly, commissioning or operation of UVAHAND LED operation of the UVAHAND LED with faulty and/or non-functioning safety and protection devices, non-observance of the instructions given in the user’s manual with reference to the safety, transport, storage, assembly, commissioning, operation and servicing of the device. -
Page 9: Risk Group
Risks in handling Risks in Handling the Device the device The UVAHAND LED has been built to the latest state of technology and to the recognized safety regulations. Certain risks nevertheless may arise from han- dling the device, such as: ... -
Page 10: Organizational Measures
It may also cause damage to the device or other material damage. UV Radiation The radiation source of the UVAHAND LED emits UV radiation, see also „Risks from UV radiation“, p. 11. Safety label on the device... -
Page 11: Risks From Electrical Power
UVAHAND LED: Never touch the protective glass when operating the device. A safe position (parking place) must be considered for the UVAHAND LED when switched on, but not being hand held. The lamp has spacer bars to create an air gap at the front of the protective glass, but must not be placed on temperature-sensitive or combustible surfaces. -
Page 12: Risks From Uv Radiation
Protective articles are listed in the chapter „Order data for equipment, spare parts and accessories“. CAUTION! UV radiation can cause damage to electronic components! If EPROMs are used in the vicinity of the UVAHAND LED, they must be protected against UV radiation. Betriebsanleitung... -
Page 13: Risks Caused By Gases
UV rays encourage the production Some materials under certain condi- tions can release fumes when irradiat- of ozone. For this reason, it is ed with the UVAHAND LED. essential to ensure that the workroom is well ventilated. Observe the safety data sheets for ... -
Page 14: Maintenance And Fault Removal
The chapter Faults on page 19 contain The contact address for claims under information on faults which may occur warranty, repair and replacement-part on the UVAHAND LED, possible caus- service is as follows: es and tips on how to remedy the fault. Dr. Hönle AG... -
Page 15: Transport, Storage, Delivery
UVAHAND LED 4. Transport, storage, delivery Scope of delivery: UVAHAND LED Operating manual Inspect the delivered parts for completeness and damage or other issues. Any damage found must be documented at once, and reported immediately to the dealer or to Dr. Hönle AG. -
Page 16: Installation, Setting-Up, Commissioning And Operation
The UVAHAND LED may only be connected up to properly installed and earthed sockets. Switching the - UVAHAND Switching the UVAHAND LED ON/OFF LED ON/OFF The UVAHAND LED is directly switched ON / OFF via the corresponding switch on the upper side of the housing. Betriebsanleitung... -
Page 17: Servicing, Maintenance And Cleaning
6. Servicing, maintenance and cleaning Maintenance Maintenance The following maintenance tasks must be carried out on the UVAHAND LED: At regular intervals (depending on the operating conditions): Check the protective glass unit for dust and other pollutants. If required, thoroughly clean the protective glass or replace the protective glass unit. -
Page 18: Surface-Cleaning Of The Uvahand Led
Check that the unit fits correctly and then tighten the securing screws. If necessary, clean the protective glass again. The UVAHAND LED is now ready for use. Surface- cleaning of the Surface-cleaning of the UVAHAND LED... -
Page 19: Order Data For Equipment, Spare Parts And Accessories
Article / Order Number Protective glass unit 73581 WARNING! Use only original spare parts from the Dr. Hönle AG. The operational safety of the UVAHAND LED cannot be guaranteed if other parts are used. Accessories Accessories Description Article / Order Number... -
Page 20: Faults
8. Faults The following fault lists contain infor- Contact address: mation on faults which may occur on the UVAHAND LED, possible causes Dr. Hönle AG UV-Technologie and tips on how to remedy the fault. Lochhamer Schlag 1 If a fault occurs on your device and D-82166 Gräfelfing / München... -
Page 21: Technical Data
UVAHAND LED 9. Technical data Dimensions and weights Dimensions and weights Width [mm] Depth [mm] Height [mm] Weight [kg] UVAHAND LED 180 mm 213 mm 112 mm 1.9 kg Electrical data Electrical data Supply voltage 115 - 230 V Permitted main voltage... - Page 22 Operating manual...
- Page 23 UVAHAND LED Dr. Hönle AG UV-Technology Lochhamer Schlag 1 D-82166 Gräfelfing/München Tel.: +49 (0)89 / 856 08-0 Fax: +49 (0)89 / 856 08-148...
