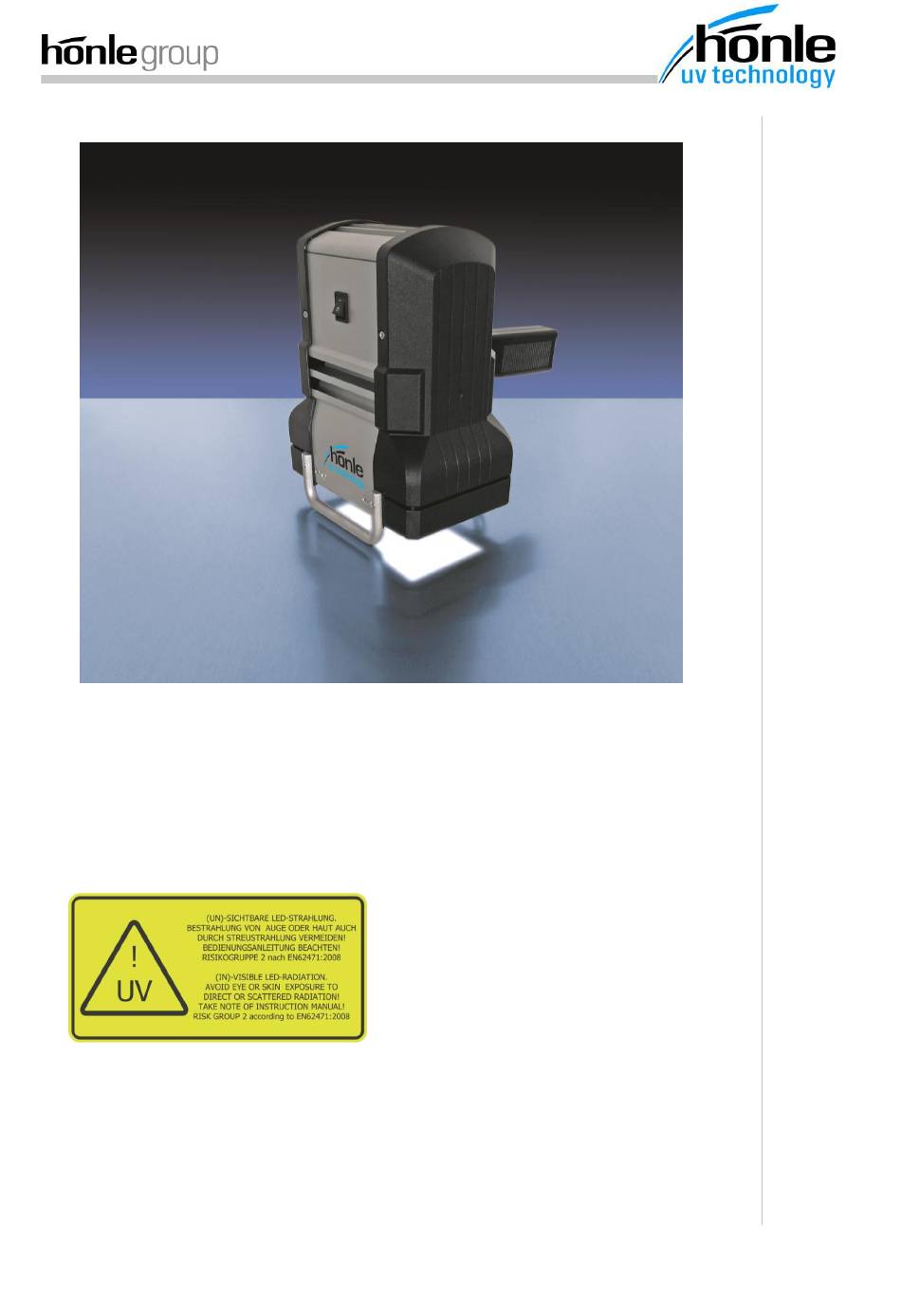

  • Page 1 Operating Instructions UVAHAND LED Operating Instructions...
  • Page 2 UVAHAND LED Masthead All rights reserved  Copyright: Dr. Hönle AG Lochhamer Schlag 1, 82166 Gräfelfing / Munich, Germany Printed in Germany, October 2016 These Operating Instructions must not be reprinted or otherwise duplicated – even in part – without the express, written consent of Dr. Hönle AG.

  • Page 3: Table Of Contents

    Setup, assembly, startup and operation ............14 4.1. General ..................... 14 4.2. Startup ....................15 4.3. Switching the UVAHAND LED on and off ........15 Servicing, Maintenance and Cleaning ............16 5.1. Service ....................16 5.2. Servicing ................... 16 Ordering Data for Units, Replacement Parts and Accessories ....18 Faults .......................

  • Page 4: Warnings And Symbols In These Operating Instructions

    UVAHAND LED Warnings and symbols in these operating instructions These Operating Instructions describe the UVAHAND LED, its operation and possi- ble applications. They contain safety information and information on danger points to ensure safe and correct handling of the unit.

  • Page 5: Description

    1. Description The UVAHAND LED is a high-intensity, mobile UV LED hand-held lamp. Its high- intensity radiation ensures reliable production results in a matter of seconds. At the same time, the arrangement of the LEDs guarantees homogenous intensity distribution. The unit is available in the wavelengths 365 and 405 nm +- 10 nm. This allows adaptation of the hand-held lamp to suit the respective application.

  • Page 6: Safety Information

    2.2. Intended purpose of use Intended use  The UVAHAND LED is a high-intensity, mobile UV LED lamp for the irradia- tion of surfaces (see also section Applications, p. 5).  Any other use or use above and beyond these terms is defined as inappro- priate and is thus dangerous.

  • Page 7: Warranty And Liability

    UVAHAND LED,  incorrect assembly, startup and operation of the UVAHAND LED,  operation of the UVAHAND LED with defective and/or inoperable safety and protective equipment,  failure to observe the information in the Operating Instructions regarding the...

  • Page 8: Risk Group

    Safety label on the unit Located on the top side of the housing of the UVAHAND LED there is a UV warn- ing label (see Fig. below). If this label is concealed or not visible to the user for some other reason, the operator is responsible for ensuring that a suitable safety notice is posted in the work area.

  • Page 9: Organisational Measures

    2.8. Duties of personnel Obligation of personnel Persons who are assigned the task of working on and with the UVAHAND LED undertake to do the following before starting work:   to observe the occupational...

  • Page 10: Danger From Electrical Power

    There is danger of direct or indirect contact with electricity! WARNING! The UVAHAND LED may only be connected to properly in- stalled power sockets with a protective ground conductor. Fur- thermore, the UVAHAND LED may only operated with the mains voltage specified in the technical data.

  • Page 11: Danger From Irradiation

    2.12. Danger from irradiation The radiation source of the UVAHAND LED emits UVA radiation and visible light. DANGER! If improperly handled, UV radiation can damage skin and eyes! It can lead to severe sunburn, premature ageing of the skin, inflammation of the retina and conjunctiva, and possibly to skin cancer.

  • Page 12: Danger From Gases

    If faults occur in the UVAHAND LED, the dards of robustness and safety. chapter "Faults" provides information on the causes of faults and possible remedial No changes, additions or conversions action.

  • Page 13: Transport, Storage, Delivery

    3. Transport, Storage, Delivery Scope of delivery:  UVAHAND LED  Protective goggles  Protective gloves  Operating Instructions The delivered parts must be inspected for completeness and damage or other issues. Any damage that has been ascertained must be documented at once, and re- ported to the dealer or to Dr.

  • Page 14: Setup, Assembly, Startup And Operation

    This is automatically prevented if spacer bars are fitted. For this reason, do not remove the spacer bars. DANGER! When operating the UVAHAND LED, make sure that there is sufficient cooling. There is acute danger of fire if the equip- ment is not sufficiently cooled! Neither the ambient temperature nor the cooling air tempera- ture may exceed 35 °C.

  • Page 15: Startup

    Startup  Insert the mains power plug into the power socket and position the UVAHAND LED so that it is pointing away from your body before switch- ing it on.  Also check the vicinity to ensure that there are no other persons nearby.

  • Page 16: Servicing, Maintenance And Cleaning

    UVAHAND LED 5. Servicing, Maintenance and Cleaning Service 5.1. Service The following servicing tasks must be carried out on the UVAHAND LED: Regularly (depending on the operating conditions):  Check the safety glass plate for dust and other contamination. ...
  • Page 17  If necessary, clean the safety glass plate again. The UVAHAND LED is ready for operation again. WARNING! Under no circumstances may the reflector located below or the surface of the LEDs be touch or cleaned. Any contact with the LEDs would lead to their destruction and thus render the entire lamp defective.

  • Page 18: Ordering Data For Units, Replacement Parts And Accessories

    Designation Article/Order number Safety glass unit 73581 WARNING! Only original replacement parts from Dr. Hönle AG may be used. Safe operation of the UVAHAND LED cannot be guar- anteed if parts from other manufacturers are used. # 073350DE-EN b...
  • Page 19 Accessories Accessories Designation Article/Order number Systainer transport case 30850 Protective goggles, tinted (for 405 nm) 0067 Protective goggles, clear glass (for 365 0068 Protective gloves 19754 Adapter plate for tripod 73582 Operating Instructions...

  • Page 20: Faults

    UVAHAND LED 7. Faults The fault lists below contain informa- tion on faults which may occur on the Dr. Hönle AG UVAHAND LED, their causes and UV-Technologie remedial action. Lochhamer Schlag 1 D-82166 Gräfelfing / Munich, Ger- Should a fault occur in the unit that...

  • Page 21: Technical Data

    8. Technical data Dimensions and weights 8.1. Dimensions and weights Width Depth Height Weight UVAHAND LED 180 mm 213 mm 112 mm 1,9 kg Electrical data 8.2. Electrical data Supply voltage 90 - 264 V AC Mains frequency 47 Hz - 63 Hz...
  • Page 22 Dr. Hönle AG UV-Technology Lochhamer Schlag 1 82166 Gräfelfing, Munich, Germany Phone: +49 (0)89 / 856 08-0 Fax: +49 (0)89 / 856 08-148...
