Manitowoc K00523 Instruction Sheet

Instruction Sheet

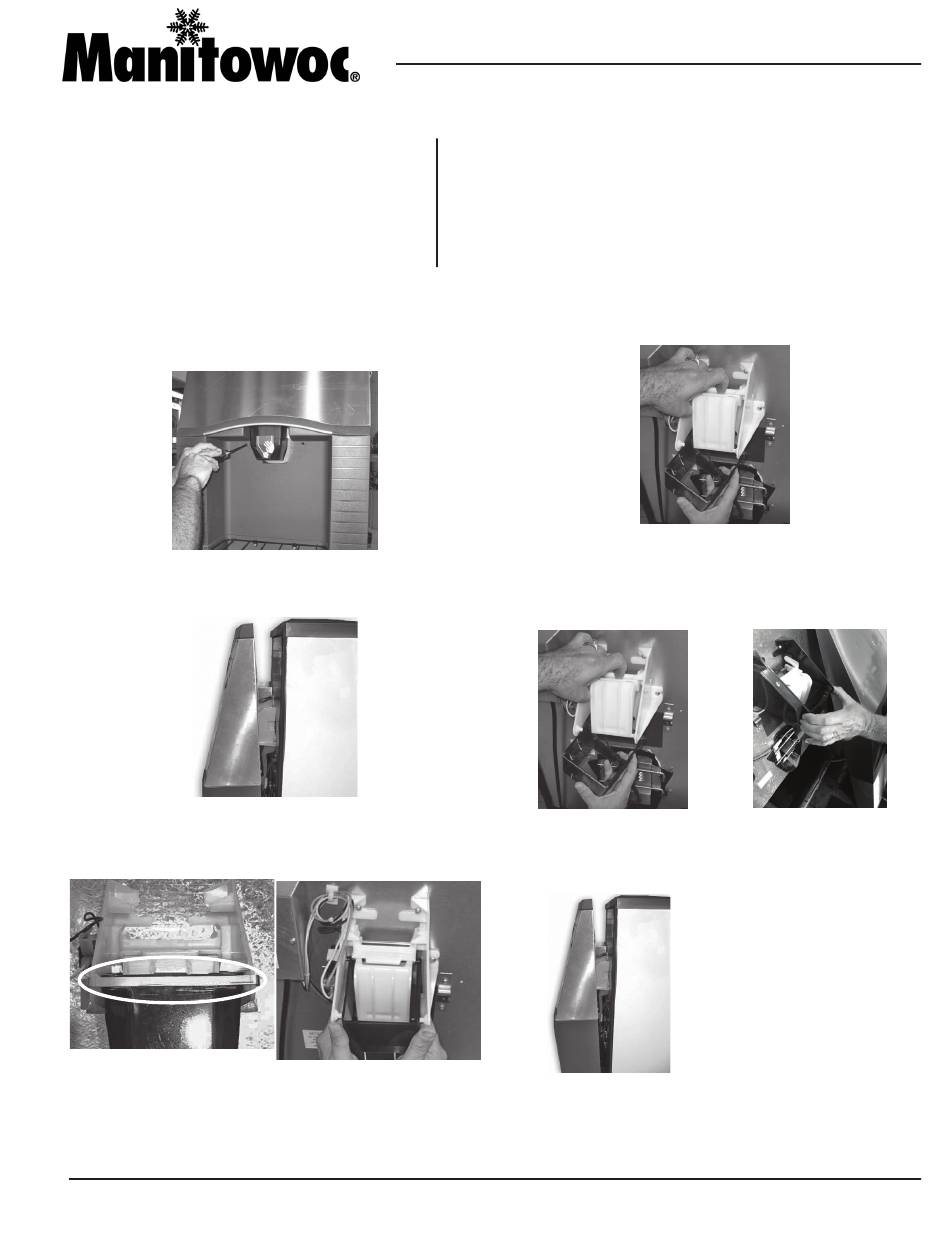

1. Disconnect the power from the dispenser by unplugging
the power cord from the electrical outlet.
2. Using a phillips head screwdriver, remove the two screws
located on both sides of the ice chute.
3. With the screws out remove the front panel by grasping
both sides and pulling towards you until it is clear of the
ice chute, then pull the panel up and out.
4. Remove the metal outer bracket clip, then use your
thumbs to spread the bracket and unhinge the ice chute
from the bracket pins.
2110 SOUTH 26TH STREET, MANITOWOC, WI 54220
K00523 Touchless Lever Activated Ice Chute
CONVERT PUSH FOR ICE TO TOUCHLESS
5. Lift the door lock and rotate the ice chute clockwise
while pulling towards you in a slightly downward motion
to complete removal.
6. Put the new ice chute into place by lifting the door lock
and door lock assembly. Rotate the chute counter
clockwise in an up and away from you motion and snap
the bracket pins into place. Replace the metal bracket
clip.
7. As you lift the front panel up onto the lower brackets,
slide the chute through the opening in the front panel.
Rest the panel on the lower brackets.
MANITOWOC ICE
800-545-5720
WWW.MANITOWOCICE.COM
Document Number: 000016900 7/21
1 of 2
