Lumenier Cinequads Edition QAV-PRO MEGA WHOOP Product Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
product manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cinequads Edition QAV-PRO MEGA WHOOP and is the answer not in the manual?

Questions and answers

Related Manuals for Lumenier Cinequads Edition QAV-PRO MEGA WHOOP

Summary of Contents for Lumenier Cinequads Edition QAV-PRO MEGA WHOOP

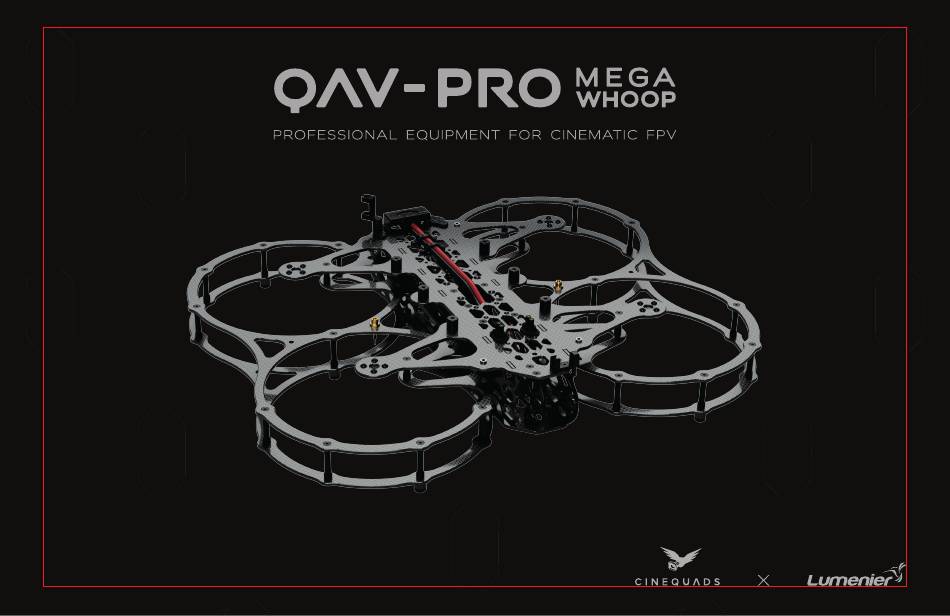

  • Page 1 product manual...

  • Page 2: Table Of Contents

    table of contents step # 1 guards pre-assembly step # 2 bottom plate pre-assembly step # 3 top plate pre-assembly step # 4 core assembly step # 5 guards assembly step # 6 final assembly...

  • Page 3: Step # 1 Guards Pre-Assembly

    parts needed for this assembly guards pre-assembly BOTTOM GUARD MID GUARD M3x6mm M3x14mm M3x15 M3x29mm carbon fiber nylon insert screws screws standoff standoff tube...
  • Page 4 LANDING GEAR ASSEMBLY CARBON FIBER TUBE NYLON INSERT M3x29mm M3x14 standoff SCREWS diag #1 M3x6mm screws BOTTOM GUARD Start the assembly by using the bottom guards and install the 29mm standoff landing with the M3x6mm screws. gear Assemble the landing gear with a M3x14mm screw running inside the nylon insert and the landing gear tube.
  • Page 5 M3x15 standoff MID GUARD M3x6mm screws assemble the mid guard with the M3x6mm screws to close the guard assembly. finish this step by adding the 15mm standoffs for the guard braces.

  • Page 6: Step # 2 Bottom Plate Pre-Assembly

    parts needed for this assembly bottom plate pre-assembly isolation camera battery foam pad bottom plate rear bracket bone mount M1.6x12mm M3 hex nut dji O3 air unit isolation M2x5mm M3x6mm M2 rubber M2x8mm M3x16mm heat sink set camera screws screws screws grommet screws...
  • Page 7 isolation camera mount orientation isolation camera mount O3 / 20mm 19mm camera setup camera setup bone battery foam pad rear bracket diag #2 bottom plate Use the M3x6mm screws to secure the aluminum parts to the bottom plate. the isolation camera mount attaches on the front, the bone attaches in the middle and the rear bracket attaches to the back.
  • Page 8 camera isolation system assembly M2 rubber grommet isolation camera plate DJI O3 camera M2x8mm screws diag #3 dji O3 air unit M2x5mm heat sink set screws Use the previous assembly to mount the video transmission system. Remove the stock M1.6x12mm screws from the DJI O3 unit and replace screws them with the M1.6x12mm screws to secure...
  • Page 9 M3 hex nut M3x16mm screws To conclude this assembly, install the flight controller to the bottom plate by using M3x16mm screws and secure it with M3 hex nuts.
  • Page 10 parts needed for this assembly top plate pre-assembly top plate core plates motor universal XT-90 mount XT-90 cable XT-30 XT-30 10AWG 18AWG washer washer pigtail pannel bracket mount set connector power wire power wire plate mount M3x6mm M3x8mm M3x10mm M3x6mm M3x8mm M3x16mm M3x25mm...
  • Page 11 esc XT-90 wiring 10AWG power wire XT-90 pannel mount top plate diag #4 M3x16mm cable screws bracket XT-90 mount Use the M3x16mm screws and M3 hex nuts to mount the esc to the top plate, solder M3 hex nut M3x6mm the 10AWG wires and run them all the way screws to the back where the XT-90 pannel mount...
  • Page 12 motor spacer mount M3x8mm screws M3x6mm screws motor washer plate motor diag #5 Depending on the motor size that you are using, a spacer must be used to clear the propeller. If the motor is tall enough, use M3x6mm screws to mount it to the top motor plate.
  • Page 13 XT-30 connector XT-30 18AWG power wire mount set Install the XT-30 mounts to the top plate by pushing them into the cutouts. Solder the 18AWG wires to the XT-30 connectors and then push them in place into the TPU mounts.
  • Page 14 mounting pattern top plate bottom plate universal gopro mount 25x25 mounting pattern dji O3 adapter plates 30x30 mounting pattern 20x20 mounting pattern XT-90 mount...

  • Page 15: Step # 4 Core Assembly

    core assembly top plate pre-assembly core plates Use the core plates to join the bottom plate and top plate pre- assemblies together. Check the bottom plate pre-assembly orientation of the core plates so to ensure the cutouts follow the tabs of the top plate and the openings to run the wires from the electronics.
  • Page 16 M3x8mm screws crossfire horizontal mount M3x6mm screws M3x25mm screw M3x6mm screws crossfire vertical mount M3x10mm screws Start by closing the frame using M3x6mm screws in the bone and the front of the top plate. Add the Crossfire horizontal mount using a M3x8mm screw. Secure the XT-90 mount to the top plate by using the M3x10mm screws.

  • Page 17: Step # 5 Guards Assembly

    guards assembly guards pre-assembly main body guards pre-assembly Use the guards pre-assembly to complete the structure of the frame. use the tabs of the guards to insert them into the cutouts of the core plates.

  • Page 18: Step # 6 Final Assembly

    final assembly M3x6mm screws Add the M3x6mm screws to the braces of the top M3x8mm plate , and add the screws M3x8mm screws to the bottom plate.
  • Page 19 universal gopro mount pigtail Locate the holes on the guards and secure the sma pigtail using the included metalic washers. lipo strap Add the accessories, such as gopro mount and lipo strap.
