Summary of Contents for Lumenier QAV 210

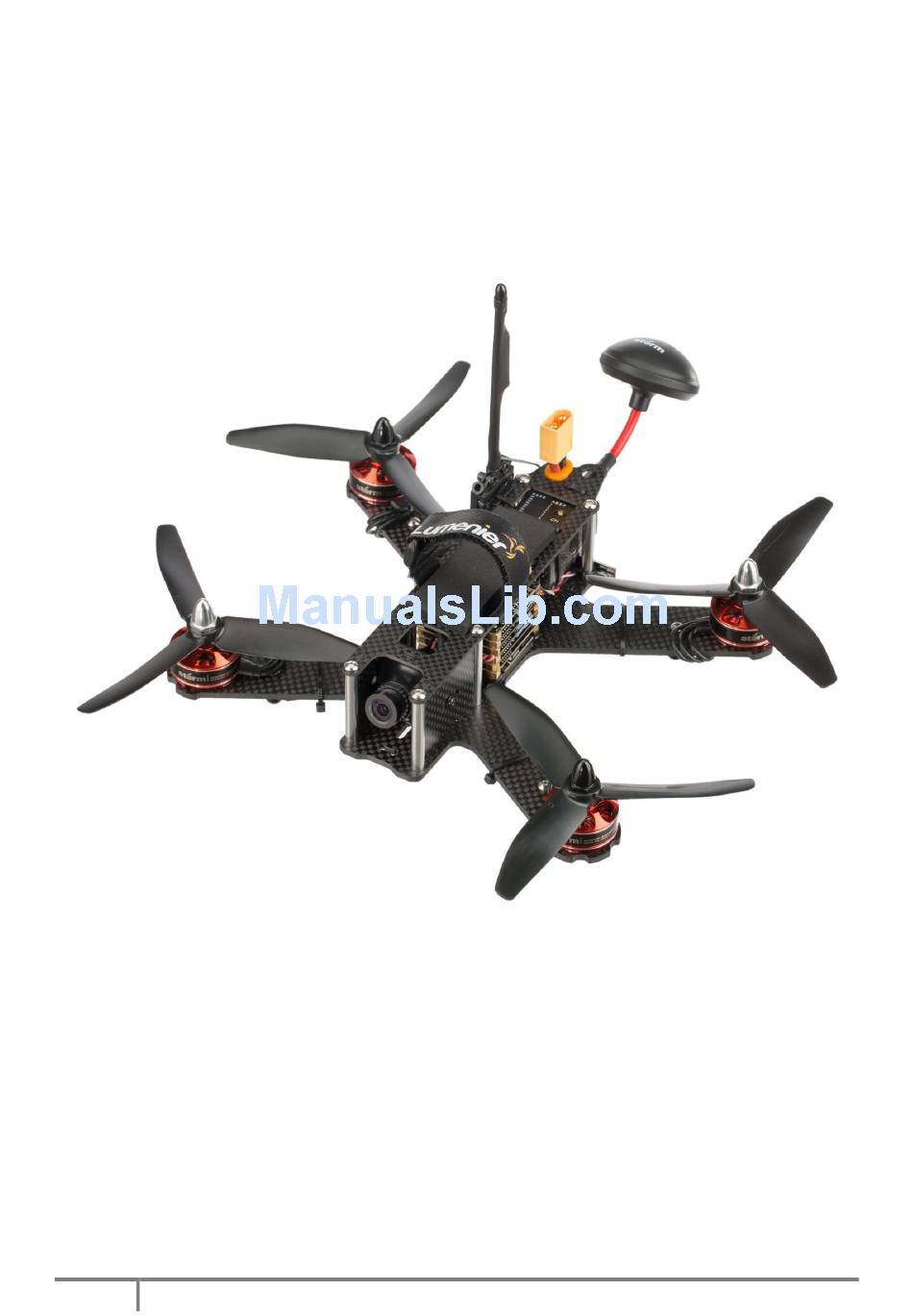

- Page 1 Lumenier QAV 210 Storm Edition QUICK START GUIDE Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 2 DISCLAIMER Please read this disclaimer carefully before using this product. This product is a hobby with motors but not a toy which is not suitable for people under the age of 18. By using this product, you hereby agree to this disclaimer and signify that you have read them fully.
- Page 3 Package includes: 1. Fully Assembled QAV210 Storm Edition and FPV System (Camera and Transmitter) 2. RadioLink AT9 Radio System 3. 6pcs Clockwise HQ 5 x 4 x 3 Tri-Blade Propeller 4. 6pcs Counter-Clockwise 5 x 4 x 3 Tri-Blade Propeller 5.
-
Page 4: Quick Start
Quick Start Copyright@2015 HeliPal.com. All Rights Reserved... - Page 5 Copyright@2015 HeliPal.com. All Rights Reserved...
-
Page 6: How To Control
How to control Copyright@2015 HeliPal.com. All Rights Reserved... -
Page 7: Circuit Diagram
Circuit Diagram Copyright@2015 HeliPal.com. All Rights Reserved... -
Page 8: Frequency Table
FPV System Our video transmitter has up to 32 different video channels available to avoid interference with other channels. If two or more drones are flying at the same time, try to select different video frequency to avoid video interference. The bigger different in video frequency between drones, the less interference generated. - Page 9 What is the difference between Angle, Horizon and Manual Mode? Angle Mode Angle mode is a stabilized mode that will not allow your drone to spin in any direction past a set angle (50 degrees). This means that with your hands off the controls, it will use the accelerometer and the gyroscope to keep the drone leveled. It is good for beginner.
- Page 10 What is the difference between different LED status? Copyright@2015 HeliPal.com. All Rights Reserved...
- Page 11 Lost connection with radio controller If you’re the drone cannot response to the radio controller stick travel, the connection between radio controller and receiver may lost and you can try to re-bind them by following the procedure below: Press the switch inside the receiver twice with small screwdrivers to make LED indicator turns PURPLE to set the control mode to D Bus Mode.
- Page 12 3) [TYPE] = AIRCRAFT [SELECT] = 01 [NAME] = CLEANFL (Any name you want) [CH5] = ------- [CH6] = SwE [CH7] = VrA Go to [AUX-CH] -> ATTITUDE, apply the setting below: [CH8] = VrB [CH9] = SwF [CH10] = SwA [CH] = CH5 [SW3] = SwG [SW2] = NUL...
- Page 13 [1] [AILE] = 100/100 [2] [ELEV] = 100/100 [3] [THRO] = 100/100 [4] [RUDD] = 100/100 [5] [ATTI] = 100/100 [6] [AUX1] = 100/100 [7] [AUX2] = 56/56 [8] [AUX3] = 100/100 10) Go to [F/S], apply the setting below: [1] [AILE] = NOR [2] [ELEV] = NOR [3] [THRO] = 15%...
