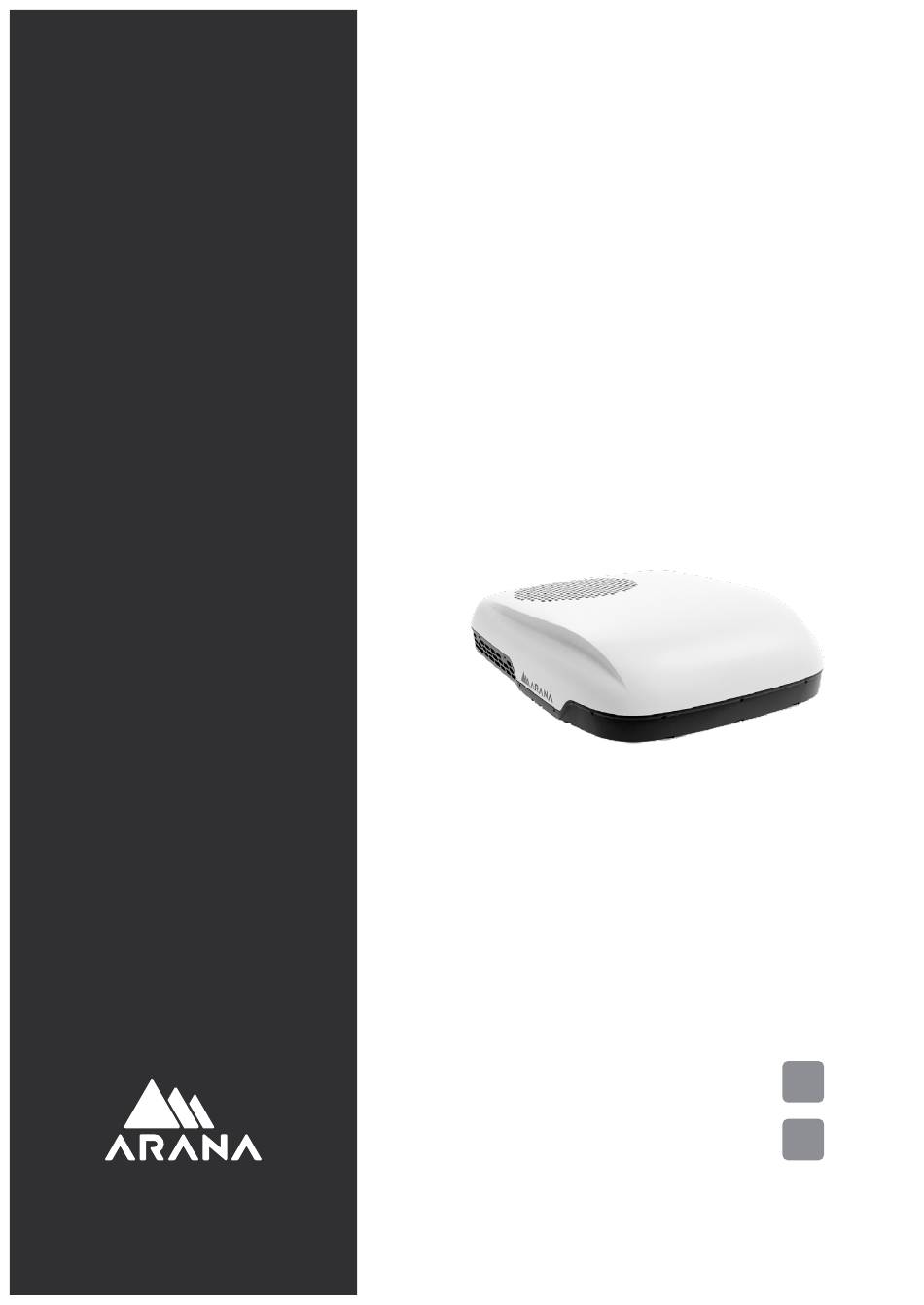

  • Page 1 Make CONDITIONER Difference KAC 33/36 卓 / 尔 / 不 / 凡 顶置空调 安装和使用说明书 Rooftop Air Conditioner Installation and Operating Instructions...
  • Page 2: Table Of Contents

    非常感谢您选购阿雷纳的制冷设备,在安装或使用该设备之前,请您仔细阅读此说明书。 请将说明书保存在所有用户都可以找到的地方,以便随时查阅使用。如果该设备转让或 者出售,请确保此说明书也交付给新用户,以便告知他们安装方法、使用和安全要求。 目 录 1.0 安全符号说明 2.0 安全说明 2.1 一般性安全说明 2.2 操作安全说明 3.0 预期用途 4.0 技术描述 4.1 部件名称 4.2 控制面板 4.3 遥控控制 4.4 工作模式 5.0 安装说明 5.1 选择安装位置 5.2 顶部准备工作 5.3 将顶置空调放置在车顶上 5.4 系统接线 5.5 通风面板的安装 6.0 初次使用 6.1 启动前的检查 6.2 检查遥控器并装入电池...
  • Page 3: 安全符号说明

    Make A Difference 卓 / 尔 / 不 / 凡 1.0 安全符号说明 危险! 表示潜在的危险情况,会导致死亡或重伤。 警告! 表示潜在的危险情况,会导致轻伤或重度损伤。 注意! 表示潜在的危险情况,会导致财产损害。 提示! 产品操作的补充信息。 2.0 安全说明 请遵守车辆制造商和售后服务商提到的安全说明和规定。 以下情况造成的损坏,阿雷纳不承担任何责任: 错误装配或连接。 机械影响和过电压造成产品的损坏。 未取得制造商明确许可擅自改变产品。 用于此说明书之外的用途。 2.1 一般性安全说明 警告! 该空调的安装和维修只能由熟悉风险和相关规定的专业人员进行,不当维修可能会 造成严重的危险。 该电气设备不是玩具。 请将该电气设备远离儿童或体弱者,不要让他们在没有监督的情况下使用该电气设 备。 生理、感官、精神能力受限或者缺乏知识和经验而无法安全使用该电气设备的人,...
  • Page 4: 操作安全说明

    在没有责任人监督或指导下不得使用该电气设备。 不要拆卸该空调的外壳,以防发生火情。如果发生火情,不要用水灭火,要使用许 可的灭火剂。 注意! 该顶置空调必须安装牢固,防止坠落。 不要在靠近易燃液体或者封闭空间内使用顶置空调。 确保通风口附近没有存放或者安装易燃物品,应至少保持 50cm 的安全距离。 切勿将手插入通风口内或者将异物塞入顶置空调内。 注意! 只能按照预期用途使用该电气设备。 该顶置空调不适合于安装在农用或者建筑车辆上。 不要对该电气设备进行任何变更或者改造。 如果制冷回路发生故障,必须由专业的公司进行正确的检查和维修。制冷剂绝对不 可以释放到空气中。 提示! 请和车辆制造商确认,在安装顶置空调后是否需要进行技术检测,以及车辆文件中 填写的车辆高度是否需要变更。 2.2 操作安全说明 警告! 必须由专业人员进行电源线的连接。 安装或维护该电气设备时,一定要切断电源。 注意! 在穿过有锋利边缘的墙壁时,请使用穿线管铺设电缆线。...
  • Page 5: 预期用途

    Make A Difference 卓 / 尔 / 不 / 凡 不要把松动或者弯曲的电缆放置在导电材料旁边。 只有在确定外壳和电线未损坏的情况下, 才可操作该电气设备。 3.0 预期用途 该顶置空调是专为自行式房车、拖挂式房车和其它带有生活居住空间的车辆设计。 该顶置空调不适合于安装在建筑机械、农业机械或者类似的设备上,剧烈震动会造成顶 置空调无法正常工作。 如果环境温度超过 52° C,请不要使用顶置空调,在极端温度下,顶置空调的性能会受到 影响。 提示! 可以从说明书的技术描述和操作说明中查阅到顶置空调的更多信息。 4.0 技术描述 该顶置空调向室内输送凉爽或温暖的干燥空气。 该顶置空调可以通过控制面板上的按键或者遥控器操作。 提示! 顶置空调可以将车内温度降低到一定程度。温度取决于车辆类型、环境温度以及顶 置空调的制冷能力。室外温度低于 16° C 时,顶置空调将不再制冷,只运行“送风” 模式。...
  • Page 6: 部件名称

    4.1 部件名称 顶置空调的制冷回路包含以下主要部件 , 详见第 25 页零部件明细表。 压缩机 压缩机将使用过的制冷剂吸入并进行压缩,这就提高了制冷剂的压力和温度。 冷凝器 内置液化器的工作原理与冷却器或热交换器类似,流经的空气吸收热量,热的制冷气 体冷却变成液体。 蒸发器 蒸发器将流经的空气进行冷凝和除湿,制冷剂吸收热量并蒸发。 风机 风机通过通风口将冷气吹入车内。 4.2 控制面板 控制面板位于顶置空调的出风口单元上。 包含以下控件和显示元素: 说明 按键 开机,长按 3 秒关机 按键 转换工作模式 按键 风速调节 按键 调整设定温度...
  • Page 7: 遥控控制

    Make A Difference 卓 / 尔 / 不 / 凡 4.3 遥控控制 通过遥控器控制顶置空调的所有设置。 遥控器可控制以下控件和显示元素: 自动模式 制热模式 吹风模式 除湿模式 制冷模式 华氏温度 温度显示 摄氏温度 氛围灯 超强模式 睡眠模式 定时图标 风速图标 风速档位 定时时间 向上调温度 调风速按键 氛围灯开关 向下调温度 超强模式选择 定时关机按键 睡眠模式选择 温度单位转换 模式转换 开关机按键...
  • Page 8: 工作模式

    4.4 工作模式 顶置空调包含以下工作模式: 空调模式 页面显示 说明 根据设定的温度,顶置空调会自动将温度保持 自动 在设定温度。 设定好温度和风速,顶置空调将室内温度降低 制冷 至此。 温度和风速锁定(23℃ /73 ℉,三档),不用 除湿 调节。 设定好温度和风速,顶置空调将室内温度升高 制热 至此。 吹风 设定好风速,顶置空调将空气吹入室内。 提示 请使用符合国家规定的连接线。 在选择发电机容量时,必须考虑车辆的总用电量,以及发电机的功率会因高海拔和 缺少维护而受损这些因素。 电路保护:务必使用漏电开关。 5.0 安装说明 注意! 请在开始安装和使用该产品前,仔细阅读此安装和操作说明。 由于不遵循本说明书引起的任何损失或伤害,制造商概不承担任何责任。 安装务必遵守国家电气规程、法规或行业规范。...
  • Page 9: 选择安装位置

    Make A Difference 卓 / 尔 / 不 / 凡 未经阿雷纳的书面授权,该产品不得加装任何设备或附件。 该电气设备须由专业人员进行安装和维修。 5.1 选择安装位置 该顶置空调专用于安装在车顶上,在确定您的制冷需求时,应该考虑以下几点: 车辆尺寸。 车窗面积(面积越大,受热越多)。 车厢板和车顶隔热材料的厚度和保温性能。 客户使用车辆的地理位置。 通用位置:将顶置空调安装在现有车顶通风口上。 拆除通风口后,通常切割一个 360*360mm±2mm 或 400*400mm±2mm 的开口。 其他位置:当车顶没有通风口或者是有更理想的位置时,建议采取以下做法: 安装一台顶置空调时:应该安装在中心点略靠前的位置(从前头看),并处于左右 两端的中心点(见图 01.)。...
  • Page 10 安装两台顶置空调时:两台顶置空调应分别安装在距车辆车前端 1/3 和 2/3 的位置, 并处于两端的中心点(见图 02.)。 选择位置后: 检查该电气设备安装区是否有障碍物。 当车辆处于运动状态时,顶部须能够支撑 60Kg 的重物,通常 100Kg 的静载荷设计 可满足此要求。 检查车辆内部是否有阻碍安装顶置空调内面板的障碍物(如:门孔、隔间架、窗帘 和天花板夹具等)。空调主机及面板的外形尺寸请见图 03。 注意! 该顶置空调最好水平安装 (车辆停放在水平表面上为标准) , 最大倾斜度不可超过 5°。 设计人员应负责确保车辆结构的整体性,切勿在车顶制造会积水的低洼处,否则该 电气设备周围不流动的水可能会渗入车内,损坏电气设备和车辆。...
  • Page 11: 顶部准备工作

    Make A Difference 卓 / 尔 / 不 / 凡 87.5 87.5 107.5 107.5 5.2 顶部准备工作 拆除车顶通风口: 拧开螺钉,并拆除通风口。 去除开口处的所有填隙料。 使用优质的耐候密封胶将车顶垫圈处的所有螺钉孔和接缝密封。 新开口:(非通风口的安装) 如果不打算使用现有的车顶通风口,则必须在车顶切割一个 360*360mm(±2mm) 或 400mm*400mm(±2mm)的开口,此开口必须位于车顶加强固件之间。 360*360mm(±2mm)或 400mm*400mm(±2mm)的车顶开口是安装该顶置空调所 必须的,请参考图 04 所示尺寸和位置在车顶切口。 危险! 车顶和天花板之间可能有电线,安装时请断开 220V AC 和 12V DC 电源。不遵循此 操作有触电的危险,会导致死亡或严重的人员伤害。...
  • Page 12 919mm 486mm 467mm 560mm...
  • Page 13 Make A Difference 卓 / 尔 / 不 / 凡 开口须知: 如果开口超过 365*365mm,则有必要安装防水垫片。 如果开口小于 358*358mm,则必须扩大开口。 布线要求: 需要安装保险丝或断路器,并良好的接地。从断路器引出一条 2.5mm 的铜质电缆线到 车顶开口的前侧。 电源必须位于单独的 20Amp 延时断路器上。 确保至少有 380mm 的电线延伸到车顶开口内部,这可方便顶置空调的安装。 必须按照相关国家和地方的规定进行布线。 拆除通风口之后,如果现有电线的尺寸合适并正确安装了保险丝,则可以使用。 接入开口的电线需要加以保护避免损坏。 开口处必须有足够的支撑,并需要把车顶夹层填充满保温材料,防止夹层内有空气产 生共振。必须使用 20mm 厚或更厚的木条密封四周(见图 05.)。 360*360mm±2mm 或 400*400mm±2mm 车顶开口是回气管的组成部分,必须根据 行业标准进行抛光处理。...
  • Page 14: 将顶置空调放置在车顶上

    5.3 将顶置空调放置在车顶上 注意! 该顶置空调约重 39Kg。为防止损坏顶置空调,请使用机械起重机将其吊到车顶上。 取出面板纸箱内的车顶安装框,将其放置在车顶上已经准备好的开口上方,注意安装 框的方向。安装框可以适合 360x360 及 400x400 两种规格开口尺寸(见图 06.)。 车头方向 使用非硬化丁基密封胶对安装框四周进行密封(见图 07.)。...
  • Page 15 Make A Difference 卓 / 尔 / 不 / 凡 取出主机纸箱内的顶置空调主机,将顶置空调对准车顶安装框,放在车顶上(见图 08)。...
  • Page 16: 系统接线

    冷凝器盘管朝向房车的后方(见图 09)。 5.4 系统接线 危险! 在车内,将顶置空调的电源线从回风口取出并连接到接线器上,然后与车顶开口预 留的 240V 电源相连。 同时将通讯线也取出备用(见图 10.)。 重要事项:电气安装必须由电工进行, 并遵守国家电气规程和当地的准则或规定。...
  • Page 17: 通风面板的安装

    Make A Difference 卓 / 尔 / 不 / 凡 5.5 通风面板的安装 取出面板纸箱内的通风面板、金属托架、出风口垫块和安装用的紧固件。 对准车顶安装框,使用四根长螺栓(M6 x 120mm) 将金属托架与车顶安装框和空调主 机固定在一起,紧固扭矩为 2.5Nm±0.3Nm(见图 11.)。...
  • Page 18 2.5±0.3Nm 依据车顶厚度确定出风口垫块的数量,然后安装到出风口上(见图 12.)。...
  • Page 19 Make A Difference 卓 / 尔 / 不 / 凡 将通风面板上的防尘网拉出,把通讯线取出,与主机通讯线的端子相连。 对准金属托架的 4 根螺栓,使用 4 颗 M6 螺母将通风面板固定好,扣上盖子(见图 13)。 根据需要,可以用 4 个自攻螺丝将通风面板固定在天花板上。 插入防尘网(见图 14.)。 提示! 检查车顶厚度,风口垫块由 EPP 材料制造,分底板、垫板和顶板三部分构成,每块 垫板的厚度为 10mm, 最大可以适用于 100mm 的车顶厚度, 根据需要加减垫块数量。...
  • Page 21: 初次使用

    Make A Difference 卓 / 尔 / 不 / 凡 6.0 初次使用 6.1 启动前的检查 在运行顶置空调之前 , 请注意以下事项 : 检查电源是否与产品上所粘贴的铭牌参数一致。 请确保进气口和送风道无堵塞。所有通风格栅必须始终保持畅通 , 以确保顶置空调能够 发挥最大的制冷性能。 注意! 请不要将手指或者物体插入送风道或进气格栅,小心受伤! 6.2 检查遥控器并装入电池 电池盒位于遥控器的背部下方。 轻轻向下推动滑盖,将滑盖从导向槽内滑出取下; 如电池盒中所示,装入两节 7 号电池(AAA); 将滑盖推入导向槽,向上推动并关闭。...
  • Page 22: 操作说明

    7.0 操作说明 7.1 基本的操作说明 通过触碰控制面板上的按键可以实现: 操作模式 功能 关机状态下按下 键即开机,在开机状态下长按 3 开关机 秒关机。 按下 键,可以依次选择 自动、制冷、除湿、送风 运行模式选择 和制热五个运行模式。 每按一次 键,风速增加一档,调到四档后再按一 调节风速 次回到自动风速档。 可以通过 或 键,来设定温度。 调节温度 通过遥控器也可以实现以上功能,同时还可以实现如下操作: 睡眠模式 强冷模式 开关氛围灯 定时关机 摄氏和华氏转换 7.2 遥控器的使用说明 遥控器安装上电池 2 秒后点亮显示屏,显示 16 摄氏度 6 秒后进入待机状态。 在关机状态下,除了...
  • Page 23 Make A Difference 卓 / 尔 / 不 / 凡 功能按键 开关机 按 键,打开或者关闭空调。 按下 键,可以依次选择 自动、制冷、除湿、送风 运行模式选择 和制热五个运行模式。 每按一次 键,风速增加一档,调到四档后再按一 调节风速 次回到自动风速档。 调节温度,可以通过 或 键,来设定温度。 按下 键,压缩机和风扇都在低速下运行,温度初 始设定为 26℃,可以通过 或 键调整温度设 睡眠模式 定,风速锁定在 1 档,无法调节;再次按下 键即 可恢复到正常模式。 按下 键,压缩机和风扇都在最大转速下运行,温 度可以通过...
  • Page 24: 清洁与维护

    8.0 清洁与维护 警告! 该处所述的任何维护工作只能由专业人员完成,因为他们了解处理制冷剂和顶置空 调以及相关规定事项时可能出现的风险。 注意!预防伤害 不要使用高压水枪清理顶置空调。用水冲洗会造成顶置空调损坏。 不要使用锋利或者坚硬的东西或者清洁剂清理,否则会造成顶置空调损坏。 清理顶置空调时,在清水中加入柔和的清洁剂,切勿使用汽油、柴油或者溶剂。 清洁顶置空调 用湿布清理顶置空调的外壳和通风口单元。 定期清除顶置空调通风网栅上的落叶和其它污物,清理过程中请注意不要损坏网栅。 定期取下通风面板两侧的防尘网,用温水清洗,风干后重新装好 。 用微湿布擦拭遥控器,我们建议使用眼镜清洁布来清洁显示屏。 维护顶置空调 定期检查冷凝水的排放通道是否通畅,冷凝水是否能够排出。 每年检查一次顶置式驻车空调与车顶的密封处是否有裂痕和其它损坏。...
  • Page 25: 故障排除

    Make A Difference 卓 / 尔 / 不 / 凡 9.0 故障排除 如果顶置空调发生故障,显示屏右上角的故障灯会亮,并显示故障代码。 故障代码 故障信息 排气感温线故障 内风机故障 外风机故障 室内感温线故障 蒸发器感温线故障 冷凝器感温线故障 室外感温线故障 PFC 电路故障 显示板与驱动板接通讯故障 控制器外通讯故障 控制器内通讯故障 电流硬件保护 电流软件保护 压缩机堵转 压缩机失速 电压欠压 电压过压 制热除霜故障 系统故障 提示! 请联系供应商寻求进一步的帮助,该设备须由专业人员进行维修。...
  • Page 26: 技术参数

    10.0 技术参数 型号 KAC 33 KAC 36 空调类型 定频 变频 制冷量 3000W 3300W 制冷功率 1050W 1240W 制热量 2400W 2500W 制热功率 780W 1050W 电源 220V-240V/50Hz 启动电流 最大电流 制冷额定电流 4.8A 5.6A 制热额定电流 3.6A 4.8A 电路保护 20A 熔断器或保险丝 电线标准 国标 2.5mm², 使用长度小于 8m 风量...
  • Page 27: 电路接线图

    Make A Difference 卓 / 尔 / 不 / 凡 11.0 电路接线图 KAC 33 N-IN L-IN...
  • Page 28 KAC 36 N-IN L-IN...
  • Page 29: 零部件明细表

    Make A Difference 卓 / 尔 / 不 / 凡 12.0 零部件明细表 空调上盖 蒸发器保温泡沫 冷凝器风扇罩 电动机固定座 压缩机 电动机 冷凝器 蒸发器风机蜗壳 控制器盒五金 蒸发器 控制器盒 空调底座...
  • Page 30 安装定位框 岀风罩底座 金属托架 岀风罩上盖 风口垫块 - 顶板 防尘网 风口垫块 - 垫板 出风口叶片 风口垫块 - 底板 显示屏面板...
  • Page 31: 质量保证

    Make A Difference 卓 / 尔 / 不 / 凡 13.0 质量保证 该顶置空调适用法律规定的保修条款和条件, 如果产品出现故障, 请与最近的经销商联系。 维修该顶置空调,请准备好如下文件: 注明购买日期的发票复印件。 故障的描述或索赔原因。 但是产品的保修将不覆盖如下情况: 在消费者使用产品时所发生的损坏、事故等,而这些损坏不是由于产品材料的缺陷或 制造原因导致的。 消费者未按照说明书规定进行的误操作而导致的损坏。 整机外观破损,包括磨损导致的外观损坏。 未经制造商授权的维修、更改。...
  • Page 32 Thanks for choosing ARANA air conditioning devices. Please read the instructions carefully before installation or first use of the device and store it in a place where all users could find it for easy reference. If the device is transferred or sold, please hand over the instructions along with it so that the new user is aware of installation methods, usage and safety requirements.
  • Page 33: Explanation Of Symbols

    Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops. ARANA accepts no liability for damage in the following cases: Faulty assembly or connection Damage to the product resulting from mechanical influences and excess voltage...
  • Page 34 Persons whose physical, sensory or mental capabilities or whose lack of experience and knowledge prevent them from using electrical devices safely should not use it without supervision or instruction by a responsible person. Do not undo the upper cover of the rooftop air conditioner in the event of a fire. Use approved extinguishing agents instead.
  • Page 35: Operating The Device Safely

    Make A Difference 卓 / 尔 / 不 / 凡 2.2 Operating the device safely WARNING! The electrical power supply may only be connected by a qualified electrician. Always disconnect the power supply when working on the electrical device. ATTENTION! Use cable ducts to lay cables through walls with sharp edges.
  • Page 36: Technical Description

    4.0 Technical description The rooftop air conditioner supplies the interior with cool or warm dehumidified air without dust and dirt. The rooftop air conditioner is operated with the button on control panel and the remote control. NOTE! The rooftop air conditioner can lower the temperature within the vehicle to a certain level.
  • Page 37: Control Panel

    Make A Difference 卓 / 尔 / 不 / 凡 4.2 Control panel The control panel is at the air outlet unit of the rooftop air conditioner. It contains the following control and display elements: Explanation Switch the rooftop air conditioner on, and long press Button for 3 seconds to power off.
  • Page 38 Automatic mode Heating Ventilation Dehumidification Cooling Fahrenheit Temperature Celsius LED light Turbo Sleep function Timer symbol Fan symbol Time for Fan level switch off Increasing temperature Fan level button LED light button Reducing temperature Turbo button Timer selection button Sleep button ℃...
  • Page 39: Air Conditioning Modes

    Make A Difference 卓 / 尔 / 不 / 凡 4.4 Air conditioning modes The rooftop air conditioner has the following air conditioning modes: Mode Display message Explanation The rooftop air conditioner will a u t o m a t i c a l l y m a i n ta i n t h e s e t Automatic temperature by heating or cooling as needed.
  • Page 40: Installation Instructions

    Installation must comply with the national and local codes and/or regulations.DO NOT add any devices or accessories to the rooftop air conditioner except those specifically authorized in writing by ARANA. This equipment must be serviced by qualified personnel and some states require these people to be licensed.
  • Page 41 Make A Difference 卓 / 尔 / 不 / 凡 For two units installation: Install one rooftop air conditioner 1/3 and the other 2/3 from front of vehicle and centered from side to side. See FIG.02.
  • Page 42 After location has been selected: Check for obstructions in the area where rooftop air conditioner will be installed. The roof must be designed to support 60KG when the vehicle is in motion. Normally a 100KG static load design will meet this requirement. Check inside the vehicle for air distribution box obstructions(i.e.
  • Page 43: Roof Preparation

    Make A Difference 卓 / 尔 / 不 / 凡 5.2 Roof preparation Roof vent removal: Unscrew and remove the roof vent. Remove all caulking compound around opening. Seal all screw holes and seams where the roof gasket will be located. Use a good grade of all weather sealer.
  • Page 44 rooftop air conditioner attachment. Wiring methods must comply with all national and local wiring codes and/or regulations. If vent fan was removed, the existing wire may be used provided it is of proper size and correctly fused. The entry wires to the opening need more protection to avoid damage. 919mm 486mm 467mm...
  • Page 45: Placing The Rooftop Air Conditioner On The Roof

    Make A Difference 卓 / 尔 / 不 / 凡 The opening must be framed to provide adequate support and prevent air from being drawn from the roof cavity. Framing stock 20mm or more in thickness must be used. Remember to provide an entrance hole for the power supply wire. See FIG.05. MIN 20MM FRAME OPENING PROVIDE HOLE...
  • Page 46 Heading direction ATTENTION! Do not slide the unit. This may damage the EVA gasket attached to the bottom and create a leaky installation. Seal around the roof mounting frame with flexible non-hardening butyl sealing compound. See FIG.07.
  • Page 47 Make A Difference 卓 / 尔 / 不 / 凡 Take out the rooftop air conditioner from the carton, and place it on the roof aligning with the roof mounting frame. See FIG.8.
  • Page 48 The condenser coil goes toward the rear of the vehicle. See FIG.9. 5.4 Wiring the system DANGER! Disconnect 220V AC. Failure to follow these instructions could create a shock hazard causing death or severe personal injury! This product is equipped with a 3 wires (grounded) system for protection against shock hazard.
  • Page 49: Installing Discharge Duct And Mounting Bracket

    Make A Difference 卓 / 尔 / 不 / 凡 Note: All wiring must be done by qualified personnel and comply with the national and local wiring codes and/or regulations. 5.5 Installing discharge duct and mounting bracket Take out air diffuser, roof mounting bracket, air duct blocks and fasteners from the carton.
  • Page 50 2.5±0.3Nm According to the thickness of the roof, determine how many air duct blocks to use, and then install the blocks to the air outlet on base pan of rooftop air conditioner. See FIG.12.
  • Page 51 Make A Difference 卓 / 尔 / 不 / 凡 Pull out the air filter and take out the communication cable from the air diffuser, connect it with the cable from the rooftop air conditioner. Install the air diffuser to roof mounting bracket with 4 nuts M6, then push the screw hole covers into the slots.
  • Page 53: Initial Use

    Make A Difference 卓 / 尔 / 不 / 凡 6.0 Initial use 6.1 Inspection before starting up Before you switch on the rooftop air conditioner, observe the following: Check whether the supply voltage corresponds to the values specified in the data plate .
  • Page 54: Operating Remote Control

    Operating mode Features Press to switch on the rooftop air, press and On/Off hold it for 3 seconds to switch it off. Press to select five operating modes in order, Mode selection Automatic, Cooling, Dehumidification, Ventilation and Heating. Press one time, the fan speed will increase one Fan speed adjusting level, and comes Auto after level 4.
  • Page 55 Make A Difference 卓 / 尔 / 不 / 凡 Button Press , to power on or off the rooftop air On/Off conditioner. Press , to select five operating modes in order, Mode selection Automatic, Cooling, Dehumidification, Ventilation and Heating. Press one time, the fan speed will increase one Fan speed adjusting...
  • Page 56: Cleaning And Maintenance

    8.0 Cleaning and maintenance WARNING! Any other maintenance work to that which is described here may only be carried out by qualified personnel who are familiar with the risks involved when handling refrigerant and air conditioning systems as well as the relevant regulations. ATTENTION! Beware of damage Do not clean the rooftop air conditioner with a high-pressure cleaner.
  • Page 57: Troubleshooting

    Make A Difference 卓 / 尔 / 不 / 凡 9.0 Troubleshooting If the rooftop air conditioner fails, the fault light on the upper right corner of the display will light up and the Error code will be displayed. Error Code Problem Exhaust temperature sensor failure Internal fan failure...
  • Page 58: Technical Data

    10.0 Technical data Model KAC 33 KAC 36 Type Constant speed Inverter 3000W 3300W Cooling capacity 1050W 1240W Input power cooling 2400W 2500W Heating capacity 780W 1050W Input power heating 220V-240V/50Hz Rated input voltage Starting current Maximum current Power consumption in 4.8A...
  • Page 59: Wiring Diagram

    Make A Difference 卓 / 尔 / 不 / 凡 11.0 Wiring diagram KAC 33 N-IN L-IN...
  • Page 60 KAC 36 N-IN L-IN...
  • Page 61: Parts List

    Make A Difference 卓 / 尔 / 不 / 凡 12.0 Parts list Housing Evaporator insulation foam Condenser fan cover Motor mount Compressor Motor Condenser Evaporator fan volute Controller box hardware Evaporator Controller box Base pan...
  • Page 62 Roof mounting frame Air diffuser base Roof mounting bracket Air diffuser Air duct block-top Air filter Air duct block-middle Blade Air duct block-bottom Control panel...
  • Page 63: Warranty

    Make A Difference 卓 / 尔 / 不 / 凡 13.0 Warranty The statutory warranty period applies. If the product is defective, please contact the nearest supplier in your location. For repair and guarantee processing, please prepare the following documents: A copy of the invoice with purchasing date.
  • Page 64 All rights reserved. ARANA TECH (Shenzhen) Co., Ltd. reserves the right to modify at any time without notice, prices, materials, specifications and models or to cease production of any model. 版权所有,侵权必究 阿雷纳科技(深圳)有限公司 保留随时修改价格、材料、规格和型号的权利 或停止任何产品型号的生产 , 恕不另行通知 www.arana.com.cn 服务热线 : 400 110 1890...
