Extreme marquees DESERT SHADE 90 Instruction Manual

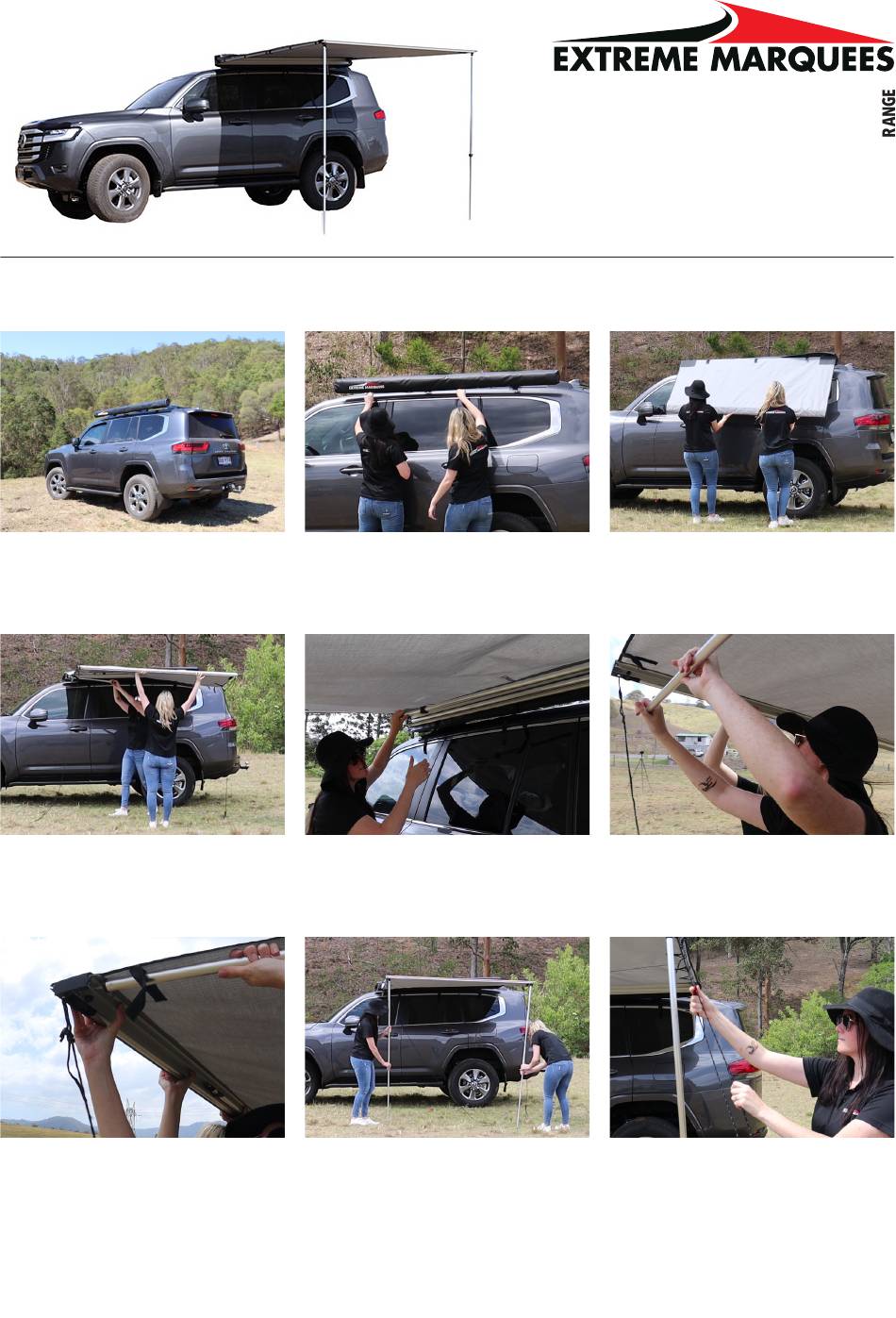

SET-UP INSTRUCTIONS
STEP 1.
Before begin the set-up, ensure the area
around the car awning is clear from trees and
any other hazards.
STEP 4.
Person one needs to support the awning while
person two completes steps 5 & 6.
STEP 7.
Loop the bottom of the roof arm through the
whole in the awning frame to secure. Attach
the Velcro straps from fabric around the arm.
STEP 2.
Installation requires 2 people. Begin
by unzipping the car awning protective
cover bag.
STEP 5.
Person two can now unfold the two roof arms
from the awning bracket.
STEP 8.
Lower both legs from the awning frame. Adjust
to desirable height by twisting legs at the join.

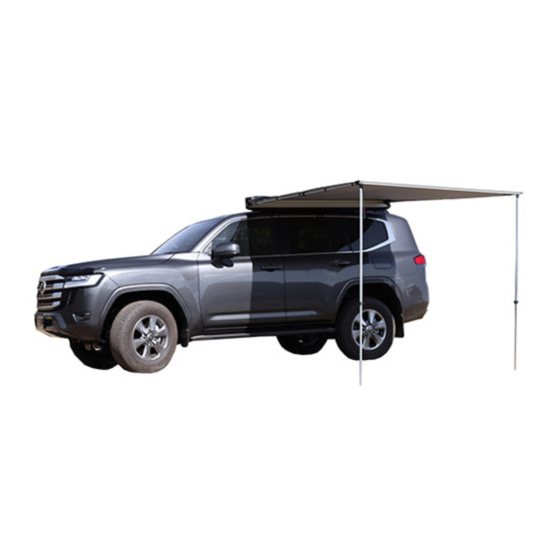

CAR AWNING
DESERT SHADE 90°
INSTRUCTION MANUAL
STEP 3.
Undo the three Velcro straps around the car
awning. Roll down the fabric/frame.
STEP 6.
The roof arms can be adjusted in length by
twisting them at the join. Extent these to the
same length as the awning fabric.
STEP 9.
Secure the awning to the ground using the
two tie-down straps and steel pins.
