Extreme marquees DESERT SHADE 270 Instruction Manual

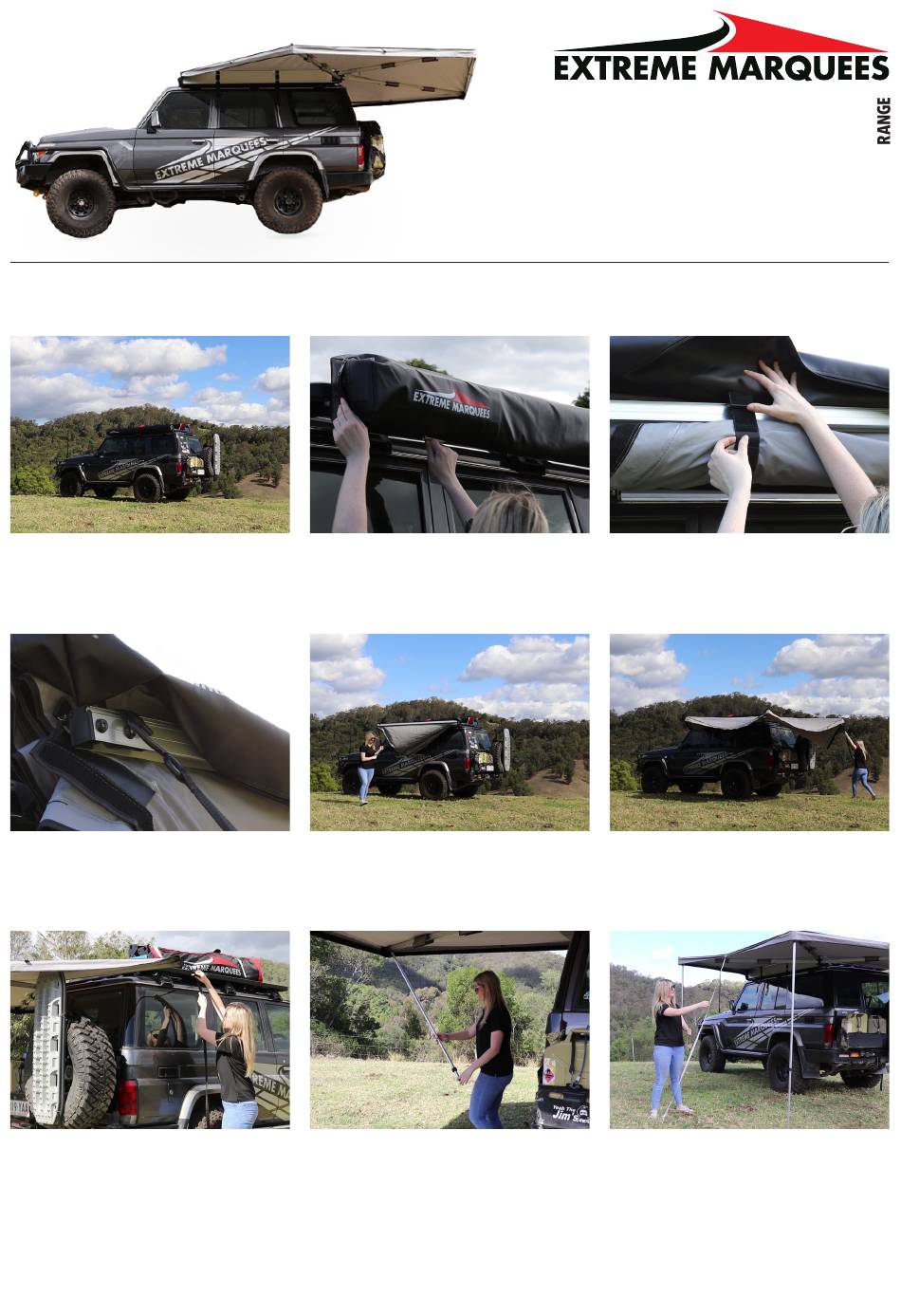

SET-UP INSTRUCTIONS

Step 1.
Before begin the set-up, ensure the area
around the car awning is clear from trees and
any other hazards.
Step 4.
Attach the guide rope through the black loop
the first arm of the frame.

STEP 7.

Loop the guide rope around the car roof rack.
Tighten the rope until the car awning fabric
has no creases.
Step 2.
Unzip the car awning protective cover bag.
Step 5.
Using the now attached guide rope, start to
open the awning.
STEP 8.
(Optional)
For extra support the 3 built-in telescopic legs
can be lowered from the frame arms. These
can also strapped and pined to the ground.

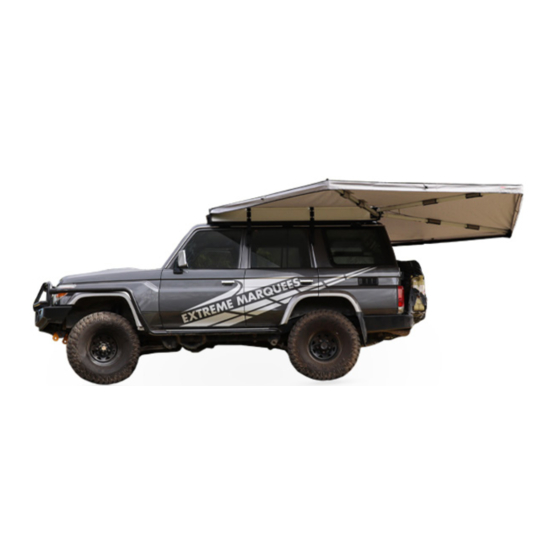

CAR AWNING
DESERT SHADE 270°
INSTRUCTION MANUAL
Step 3.
Undo the two Velcro straps around the car
awning and roll down the fabric.

STEP 6.

Walk the awning around the back of the car
until complete expanded to 270º.
STEP 9.
(Optional)
There are four extra tie-down straps and pins
to strap the car awning to the ground and
help direct rain water off the awning.
