Summary of Contents for Dino-Lite MEDL7DW

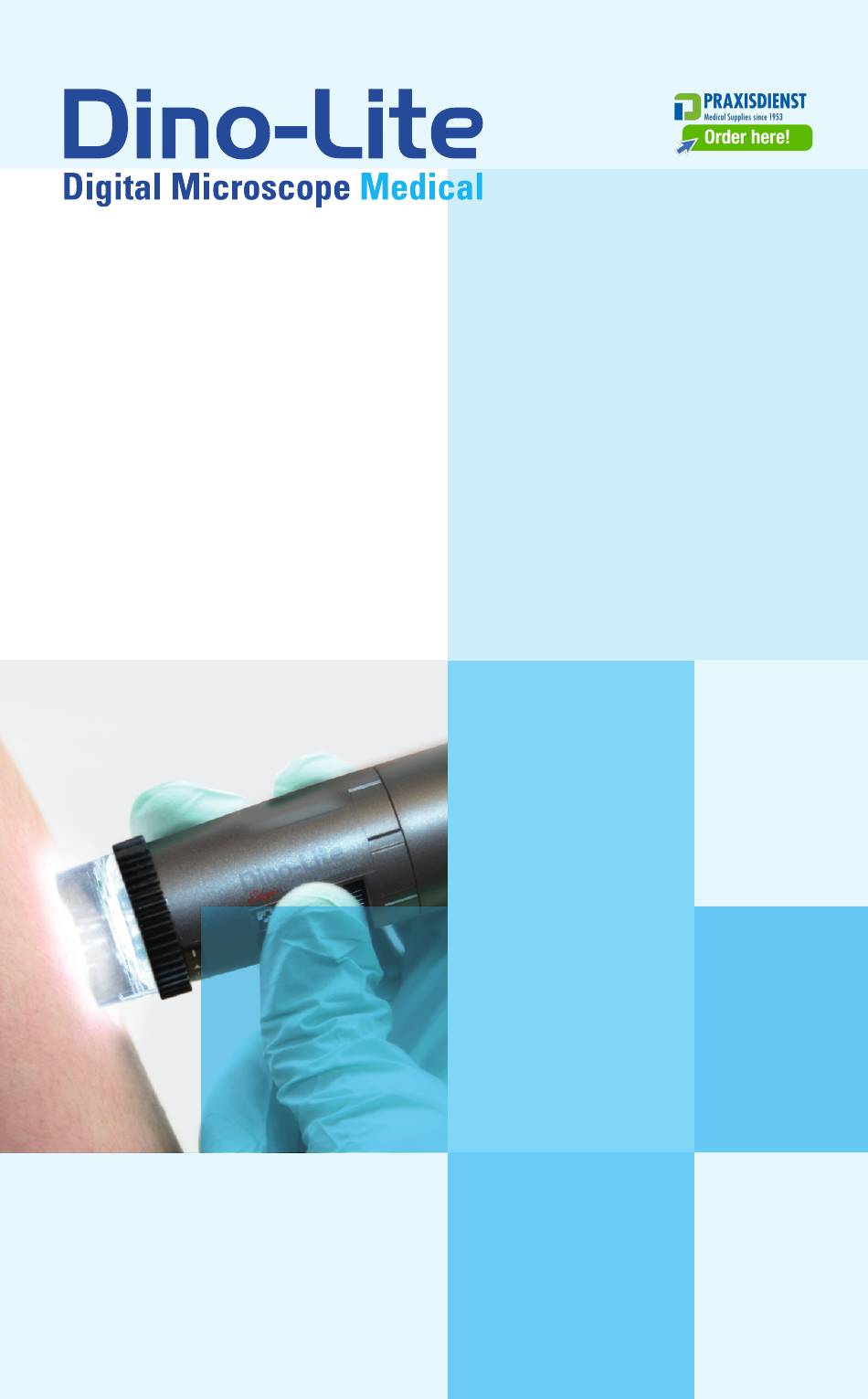

- Page 1 Medical Manual www.dino-lite.eu/medical...
- Page 2 System requirements / Exigences du système / Systemanforderungen / Requisitos del sistema / Requisiti di sistema / Systeemvereisten / Wymagania systemowe / Systemkrav / Systemkrav - Windows 10, 8, 7 (SP3), MAC OS 10.9 or above /ou plus / oder höher, o posterior / o superior / of hoger/ lub nowsze / eller högre/ eller over /lub wyzszy / eller ovanför / eller over - USB 2.0 port...
- Page 3 Dino-Lite Medical User Manual ENGLISH Thank you for purchasing a Dino-Lite microscope. The DinoCapture software is designed to give you the best possible digital microscopy experience by the inventors of the handheld digital microscope. The DinoCapture software runs on computers with a Windows 7/8/10 operating system.
-
Page 4: Intended Use
Dino-Lite Medical User Manual Intended Use Please check the label on your Dino-Lite to see what model you have and find the appropriate page about the intended use in this manual. IDCP BV Manuscriptstraat 12-14, 1321NN Almere, The Netherlands Tel. +31206186322... -
Page 5: Product Overview
Dino-Lite Medical User Manual Product overview Please make sure that you have the right Dino-Lite model for your application. You can find the product designation on the label attached to the cable. English 3... - Page 6 Dino-Lite Medical User Manual Model Description Resolution Magnification MEDL7DW DermaScope 5.0 MP 10-50x Polarizer HR MEDL4DW DermaScope Polarizer 1.3 MP 10-50x MEDL7DM DermaScope Polarizer 5.0 MP ~10-70 & 200x HR 200x MEDL4DM DermaScope 1.3 MP ~10-70 & 200x Polarizer 200x...
- Page 7 Dino-Lite Medical User Manual USB 2.0 LED's Polarizer Metal specific accessories Housing 8 white open cap, long cap, closed contact cap 8 white open cap, long cap, closed contact cap 8 white closed contact cap 8 white closed contact cap...
- Page 8 Hardware features 1. Your Dino-Lite has a Microtouch function at the cable end of the device. Touching this sensor will capture the current image. 2. This model has a polarization function that can be controlled by turning the adjustable wheel at the cap.
- Page 9 Hardware features 1. Your Dino-Lite has a Microtouch function at the cable end of the device. Touching this sensor will capture the current image. 2. The front cap has a special form to allow you to put it directly onto the rim of a nail.
- Page 10 The TrichoScope is intended to make images of hair and scalp as part of trichological diagnosis. Hardware features 1. Your Dino-Lite has a Microtouch function at the cable end of the device. Touching this sensor will capture the current image. 2. Some models (MEDL4HM and MEDL4HM4) have a polarization function that can be controlled by turning the adjustable cap.
-
Page 11: Software Installation
Dino-Lite Medical User Manual Hardware features 1. Your Dino-Lite has a Microtouch function at the cable end of the device. Touching this sensor will capture the current image. 2. Models with the letter W in the article code have the Macro... -
Page 12: Hardware Installation
CD or on the website. Hardware installation 1. After full installation of the DinoCapture software and driver package, connect the Dino-Lite to one of the USB ports of your computer. 2. Please use a USB 2.0 port that is fully powered. Some USB ports on portable computers do not supply sufficient power. - Page 13 Dino-Lite Medical User Manual Settings – customize the way the software operates such as: • Showing or hiding elements on the screen • The properties for measurements • The way the Microtouch or foot pedal (if attached) work • Aaccessing the Motorized focus accessory settings •...
- Page 14 Dino-Lite Medical User Manual Preview window management bar This window enables you to switch between windows if two or more Dino-Lite’s are connected at the same time or multiple pictures are opened. Tool bar The tool bar is divided into four parts: Draw tools –...
- Page 15 Dino-Lite Medical User Manual Line Left click and drag to the desired length, and click again to finish. Continuous Click and drag to form one section of distance, click line again to start another section. Continue until the total desired distance is measured. Double click to finish.
-
Page 16: Measurement Options
Dino-Lite Medical User Manual Crosshair on The crosshair XY position can be moved when camera you select it. The cursor position is the location of the mouse pointer and location 0,0 is the center coordinates of the crosshair. Scale The scale crosshair increments can be compared to crosshair the scale on the bottom left corner. - Page 17 Preview window tools MicroTouch - this is activated when you touch the MicroTouch sensor. Activate or deactivate the MicroTouch. Some Dino-Lite models do not have this feature. Auto Exposure – This allows you to change the exposure or turn off auto exposure. Sliding the bar to the right increases the exposure time and vice versa.
- Page 18 Dino-Lite Medical User Manual Snapshot - Take a picture. Video recorder - Start/stop recording of a video. Time-Lapsed Video - Create a series of images or videos taken at a regular time interval. Choose the resolution for the image. Please note that an additional Codec may be required to display 5 megapixel resolution.
- Page 19 Dino-Lite Medical User Manual • Make time lapse video. Choose capture interval, number of frames and playback frame rate, as well as quality and compression. • Switch LED’s on/off • Go to full screen mode, to end full screen mode use the ESC key 2.
-
Page 20: Cleaning And Maintenance
Dino-Lite Medical User Manual Note: The values reached with the DinoXcope software are not intended to be used for diagnostic purposes. Cleaning and maintenance Avoid touching the lens with any substance. Clean the lens periodically with compressed air. Clean the body of the microscope regularly with a soft cloth dampened with disinfectant. -
Page 21: Warranty
For warranty issues please contact the reseller or store where you bought the product. Support If you have any problem or issue with your Dino-Lite or the DinoCapture software, please contact your reseller or check the Dino-Lite Europe support pages at www.dino-lite.eu. An extensive user manual for DinoCapture can be found within the software and on the website.
